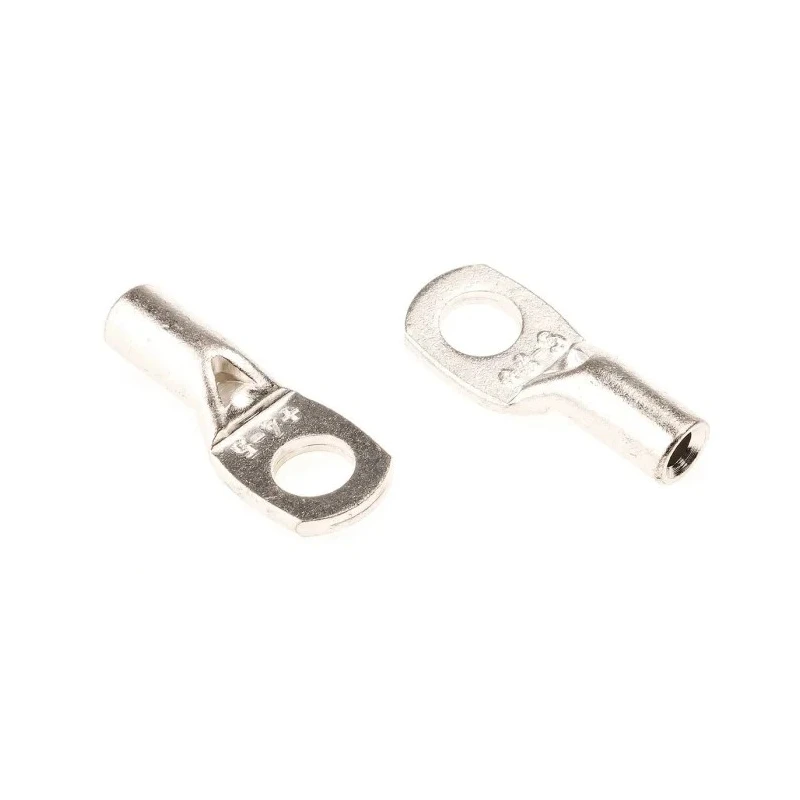

TE Connectivity XCT Uninsulated Ring Terminal M5 Stud Size 11 AWG Wire Size Grey 710978-1

Free Delivery in India | Lowest Global Shipping Charges

TE Connectivity XCT Uninsulated Ring Terminal M5 Stud Size 11 AWG Wire Size Grey 710978-1

Name: TE Connectivity XCT Uninsulated Ring Terminal M5 Stud Size 11 AWG Wire Size Grey 710978-1
Brand: TE Connectivity
SKU: 140280
Price: 2.77 USD
Availability: InStock



Category Ring Terminal Brand TE Connectivity Condition New

Specifications

Country of Origin	France
Brand	TE Connectivity
Colour	Grey
THICKNESS	1mm
Model	710978-1
Insulation	Uninsulated
Overall Length	24mm
Contact Material	Copper
Series	XCT
Standards/Approvals	NF C 20 130
Contact Plating	Tin
Maximum Wire Size mm²	4mm²
Maximum Wire Size AWG	11AWG
Outer Ring Diameter	9mm
Inner Ring Diameter	5.3mm
Stud Size	M5

Key Features

Constructed of highly conductive electrolytic copper for superior electrical performance.
Bright tin plating provides excellent resistance against oxidation and corrosion.
Funnel entry barrel design allows easy wire insertion for efficient crimping.
Inspection window in the barrel ensures proper conductor positioning.
Complies with NF C 20 130 French standard for quality assurance.
Compatible with hexagonal compression and indent crimping processes.
Grey color coding facilitates easy identification in wiring assemblies.
Compact overall length of 24 mm fits in tight electrical installations.

Product Description

TE Connectivity 710978-1 XCT uninsulated ring terminal is designed for connecting electrical copper conductors to equipment terminals with an M5 stud size and supports 11 AWG wire size. This ring terminal is constructed from highly conductive electrolytic copper, featuring a bright tin finish to resist oxidation and corrosion, ensuring long-lasting reliability in demanding electrical environments.

The terminal's barrel has a funnel entry design that facilitates easy wire insertion and includes an inspection window allowing visual verification of conductor placement before crimping. These features help achieve secure and consistent electrical connections. The compact overall length of 24 mm makes it suitable for installations where space is limited.

This ring terminal conforms to the NF C 20 130 French standard, guaranteeing compliance with rigorous industrial requirements. It can be crimped using either hexagonal compression or indent crimping methods, providing flexibility during assembly.

Finished in grey color for easy identification, the terminal fits wire sizes up to 11 AWG (4 mm²) for versatile application in electronic and electrical systems. The contact material is high-quality copper, plated with tin for enhanced durability and electrical conductivity.

Highly conductive electrolytic copper construction. Bright tin finish for oxidation and corrosion resistance. Funnel entry barrel design for ease of wire insertion. Inspection window in the barrel for conductor positioning check.

Designed to meet NF C 20 130 French standard. Compatible with hexagonal compression and indent crimping. Grey color for easy identification. Compact overall length of 24 mm. Fits maximum wire size of 11 AWG (4 mm²). Manufactured in France ensuring quality and reliability.

This Ring Terminal is ideal for industrial, electronic, power connector, and electrical applications requiring high reliability and precision in wire termination. Explore more TE Connectivity products and accessories for your electrical connection needs on EnvMart.
