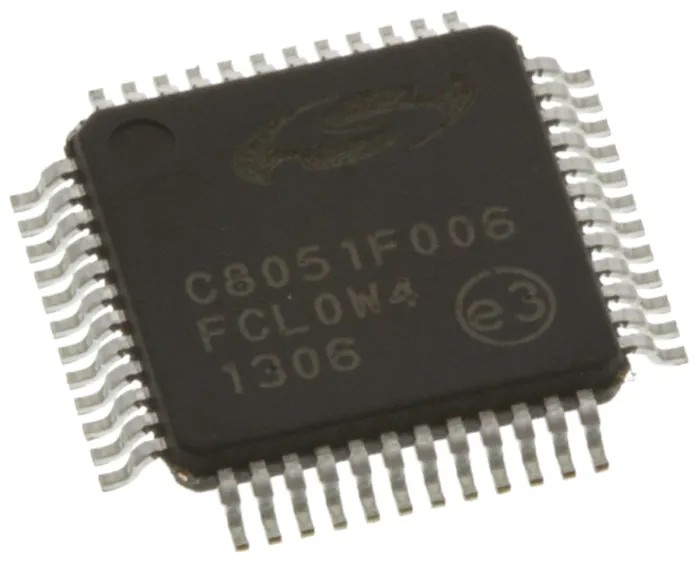

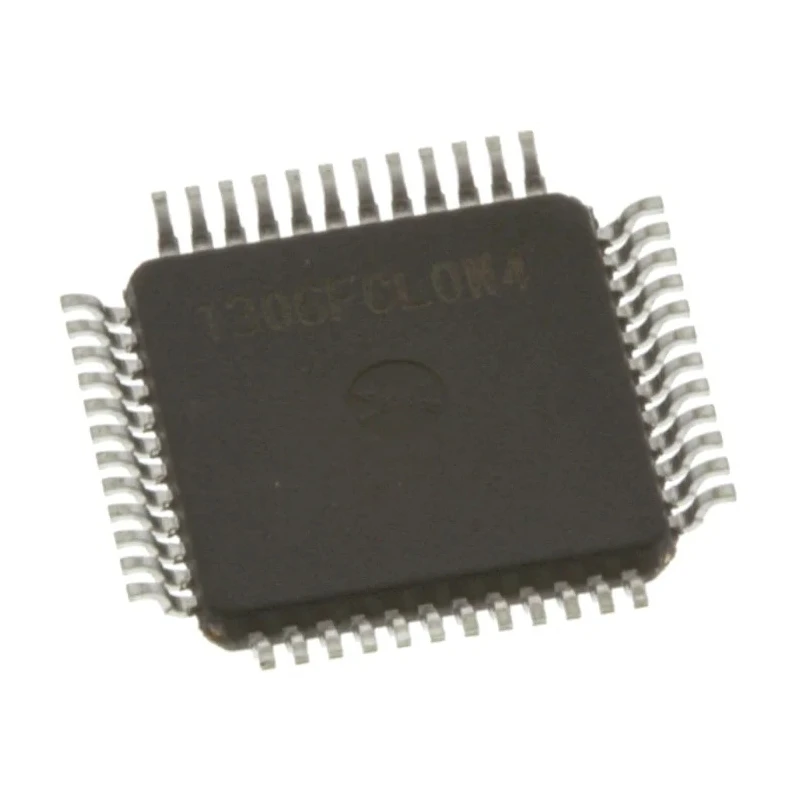

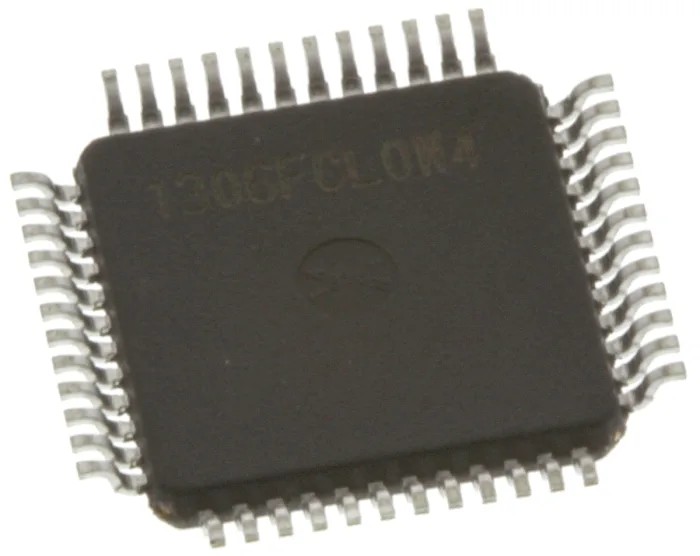

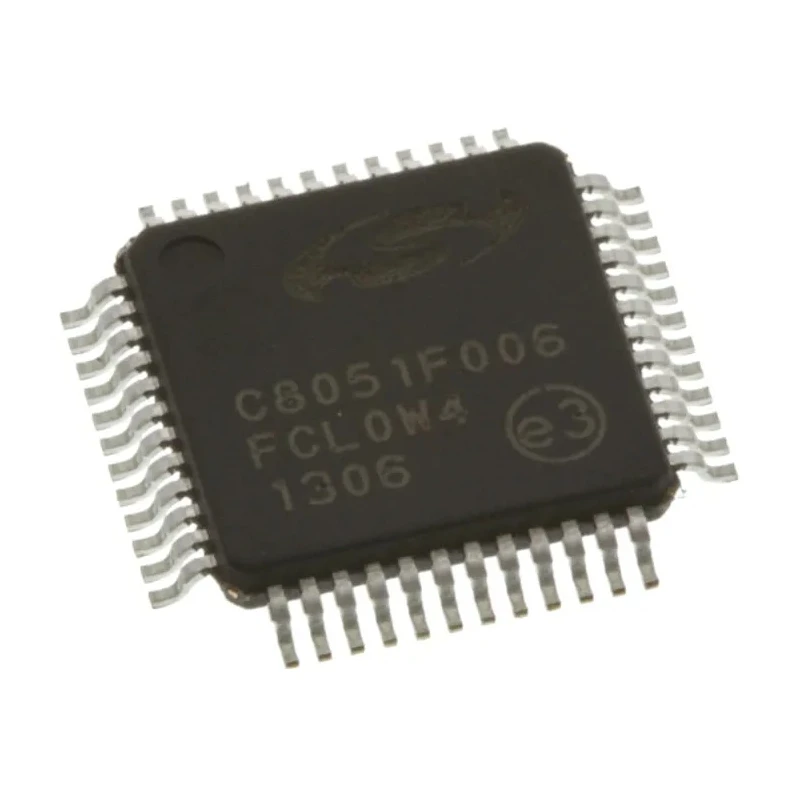

Silicon Labs 8 bit 8051 Microcontroller, 25 MHz Clock, 32kB FLASH, 2.3kB RAM, 48-Pin TQFP C8051F006-GQ

Silicon Labs C8051F006-GQ is an advanced 8-bit microcontroller based on the 8051-compatible core featuring a 25 MHz maximum clock frequency and 32 kB of FLASH program memory. It is packaged in a compact 48-pin TQFP surface mount form factor measuring 7 mm by 7 mm with a height of 1.05 mm. This microcontroller incorporates an 8-bit data bus and 2.3 kB RAM, making it suitable for embedded control systems requiring moderate data handling capacity.

Designed for industrial and commercial embedded applications, it operates with a supply voltage range of 2V to 5.5V and a maximum power dissipation of 1 W, ensuring efficient power management. The device supports various analog features including 8 channels of 12-bit ADC, two separate 12-bit DACs, two voltage comparators, and an integrated temperature sensor and voltage reference, enabling precise analog signal processing and system monitoring.

This microcontroller is equipped with 25 programmable inputs/outputs, four general purpose 16-bit timers, and a Programmable Counter/Timer Array with five capture/compare modules, providing versatile hardware control options. Communication interfaces include hardware-implemented I2C/SMBus, UART, and SPI protocols, facilitating reliable data exchange in complex systems. Debugging is supported via JTAG interface, enhancing development and troubleshooting.

The device is rated for operation from -40°C to 85°C, making it ready for harsh environmental conditions common in industrial, automotive, and instrumentation applications. The compact TQFP package suits high-density PCB layouts, while the FLASH memory type allows reliable program storage and updates.

8051-compatible microcontroller with CISC architecture and 25 MHz CPU speed. 32 kB FLASH program memory and 2.3 kB RAM enable complex program execution. Multi-channel 12-bit ADC and dual 12-bit DACs support precise analog control.

Includes temperature sensor and voltage reference for embedded system monitoring. 25 programmable I/O pins and multiple timers provide flexible system interfacing. Standard communication interfaces I2C, UART, and SPI facilitate peripheral control.

Package: 48-pin TQFP, 7 mm × 7 mm × 1.05 mm, surface mount. Operating voltage range 2 V to 5.5 V and max power dissipation 1 W ensure efficient performance. Operating temperature range from -40°C to 85°C for industrial reliability.

This Silicon Labs microcontroller targets industrial controls, instrumentation, automotive electronics, and embedded applications where robust 8-bit MCU performance with advanced analog features and multiple I/Os is required. For more Microcontrollers and semiconductor components, explore the Electronics & Electricals category at EnvMart.
