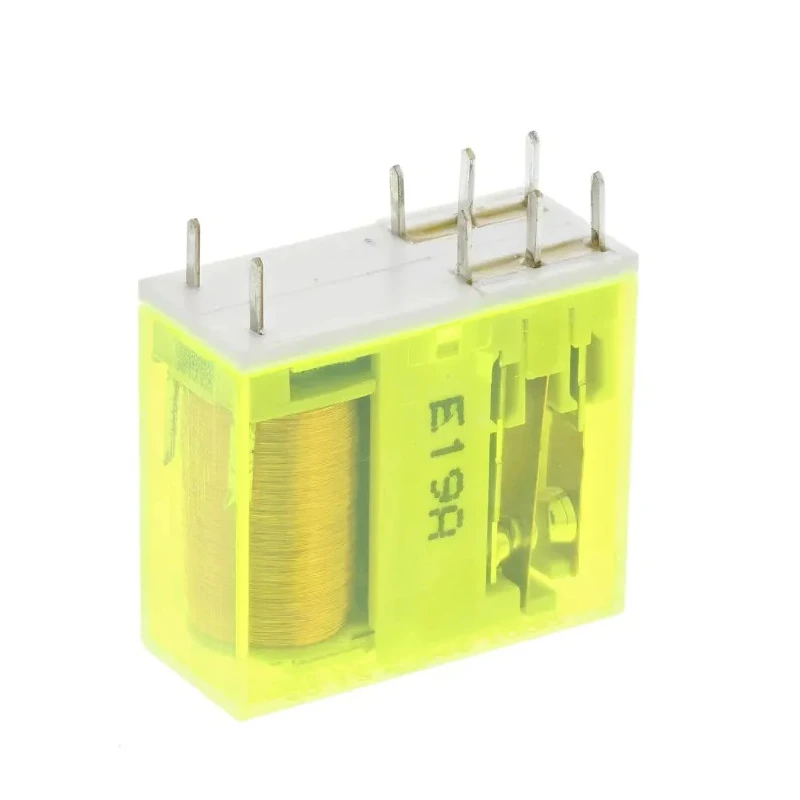

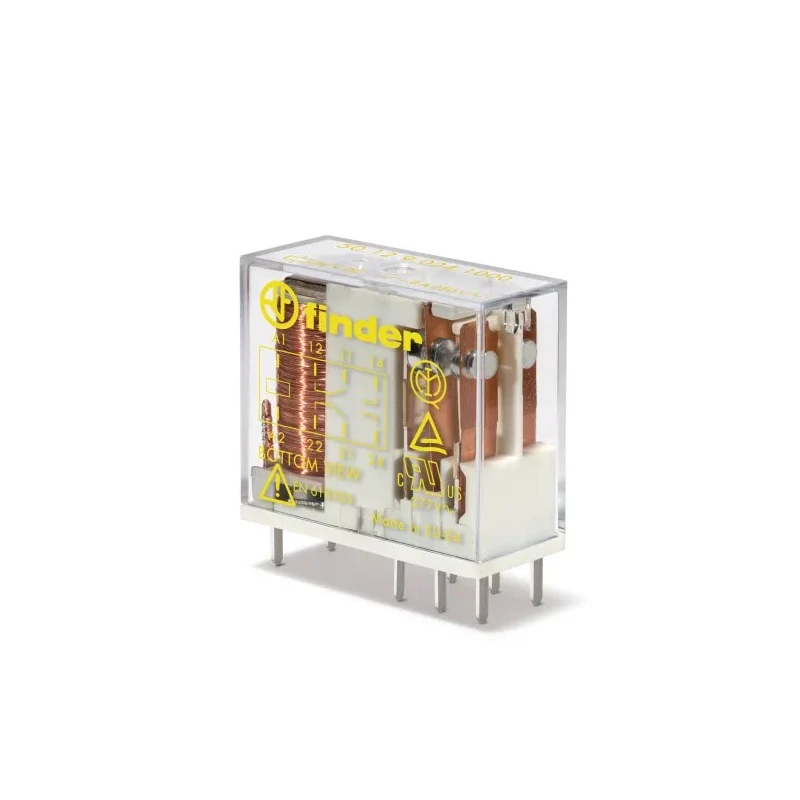

Finder PCB Force Guided Relay 48V DC Coil Voltage 2-Pole DPDT 50.12.9.048.1000

Finder 50.12.9.048.1000 PCB Force Guided Relay is a high-performance relay designed for precise control in industrial and commercial automation systems. With a 48V DC coil voltage and a 2-pole double-pole double-throw (DPDT) contact configuration, this relay is optimized for PCB mounting in compact spaces. It ensures safe and reliable switching with forcibly guided contacts that minimize failure risks in critical applications.

The relay features a high isolation voltage of 6kV between the coil and contacts, providing excellent protection against electrical surges and spikes. Silver alloy contact material enhances the durability and longevity of the unit, enabling a mechanical life span of up to 10 million cycles. This relay handles a maximum switching current of 8A and voltages up to 400V AC, making it suitable for medium-duty DC load switching.

Its compact size, with dimensions of 29mm length, 25mm height, and 12.4mm depth, makes it easy to mount on PCBs as part of control circuits. The solder-type terminals ensure stable and secure connections. Designed to operate in a wide temperature range from -40°C to 70°C, the relay is suitable for harsh environmental conditions commonly found in industrial settings.

Applications include automated escalator control systems, medical and dental equipment, hospital lifts, elevator operations, carousel warehouse automation, wood-processing machinery, hoists, and cranes. Its robust construction and safety features make it a preferred choice for ensuring reliable operation in critical control tasks.

Forcibly guided contacts enhance safety by preventing dangerous failures. High isolation rating of 6kV between coil and contacts ensures voltage spike resistance. Compact dimensions facilitate easy PCB mounting with 12.4mm depth.

Capable of switching up to 8A current and 400V AC voltage for medium-duty loads. Silver alloy contacts provide durability for up to 10 million mechanical cycles. Operates reliably within -40°C to 70°C temperature range for harsh environments.

Solder terminal type ensures secure electrical connections. Ideal for escalators, medical equipment, hospital lifts, and industrial automation uses. Explore more in the Electronics & Electricals category including Relays & Contactors for industrial automation and control solutions at EnvMart.
