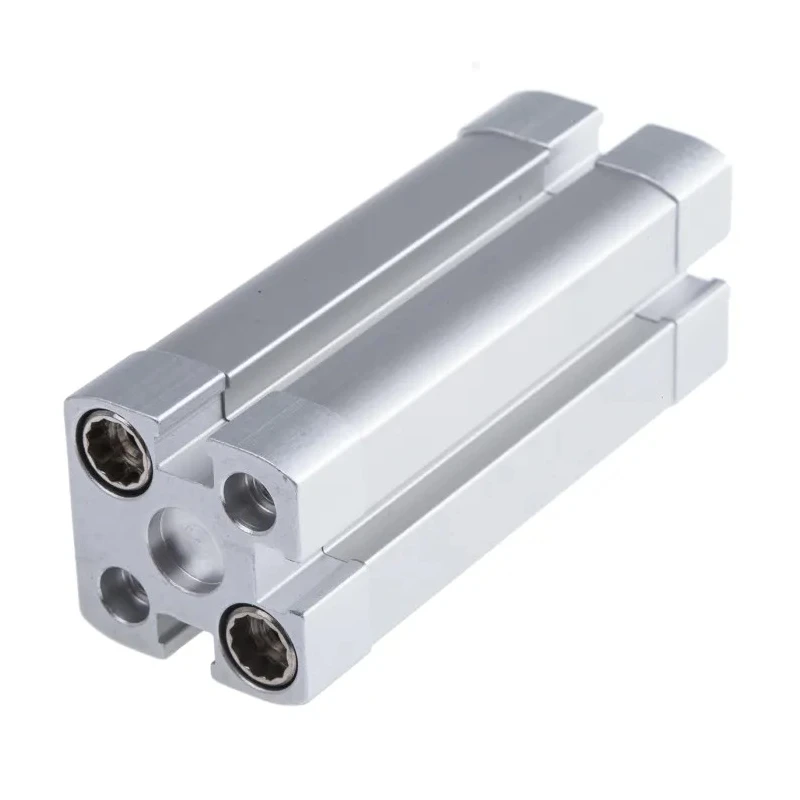

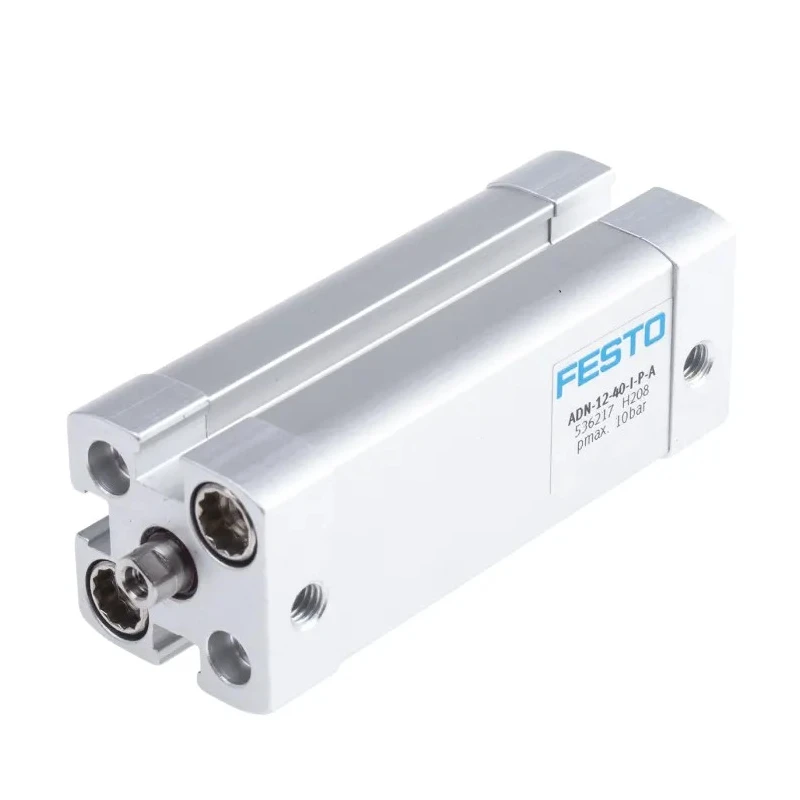

Festo Pneumatic Cylinder ADN Series Double Acting 12mm Bore 40mm Stroke ADN-12-40-I-P-A

Festo ADN-12-40-I-P-A pneumatic cylinder is a compact, double acting actuator featuring a 12mm bore diameter and 40mm stroke length with a total length of 79.2mm. This pneumatic piston rod cylinder is designed for efficient load movement in two directions, providing precise control on both extension and retraction strokes.

The cylinder features an anodised aluminium body paired with a high-alloy steel piston rod, delivering excellent corrosion resistance and durability against industrial wear. Elastic cushioning rings integrated in the design absorb residual energy and provide smooth operation, especially under high-speed cycle conditions, without requiring manual adjustments.

The single piston rod with female M5 thread and through-hole mount type allows flexible, secure installation within automation lines and machinery. The operating pressure ranges from 1 to 10 bar enabling compatibility with varied pneumatic systems.

With a height and width both measuring 27.5mm, this compact cylinder supports space-saving assembly while maintaining robust performance. The product complies with ISO 21287 standards and RoHS directives ensuring quality and environmental compliance.

Common applications include robotics, industrial automation systems, lifts, plant machinery, and hoists where precise, repeatable linear motion is required. The cylinder handles forces approximately 68N on extension and 51N on retraction at 6 bar operating pressure, making it suitable for a wide array of industrial tasks.

Double acting cylinder provides control on extension and return strokes. Compact 79.2mm overall length supports space-efficient installations. Anodised aluminium body ensures corrosion resistance. Elastic cushioning rings absorb residual energy for smooth high-speed motion.

Operating pressure range from 1 to 10 bar maximizes system compatibility. Single piston rod with female M5 thread for flexible mounting. Suitable for robotics and industrial automation applications. Integrated cushioning is flexible with no adjustment needed.

Temperature range from -20°C to 80°C for diverse environments. ISO 21287 and RoHS compliant construction ensures quality and safety standards adherence. Explore more Pneumatic Cylinders and components on EnvMart's Industrial Tools category to enhance your automation solutions.
