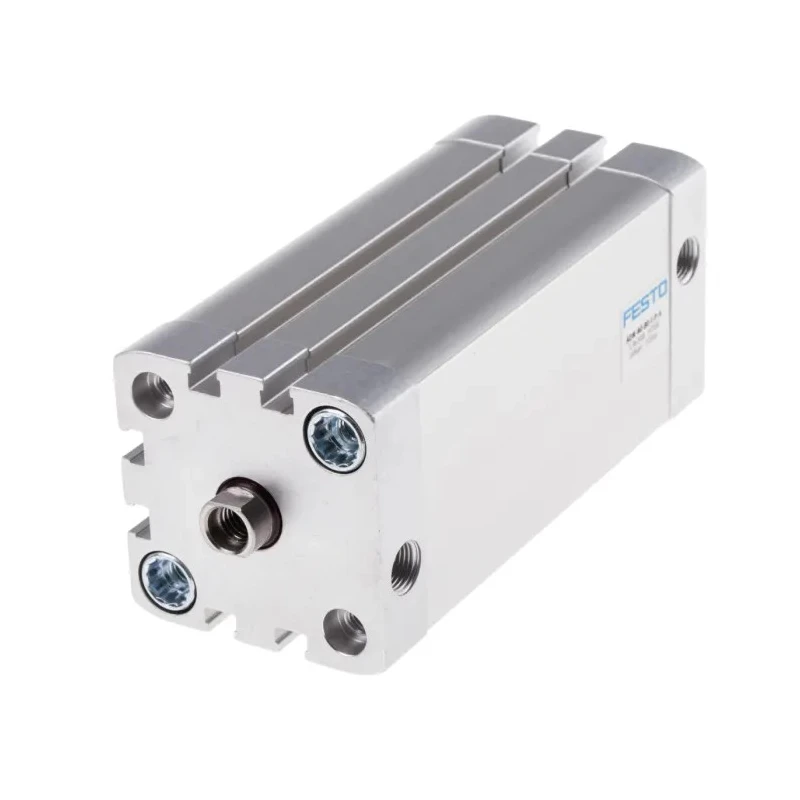

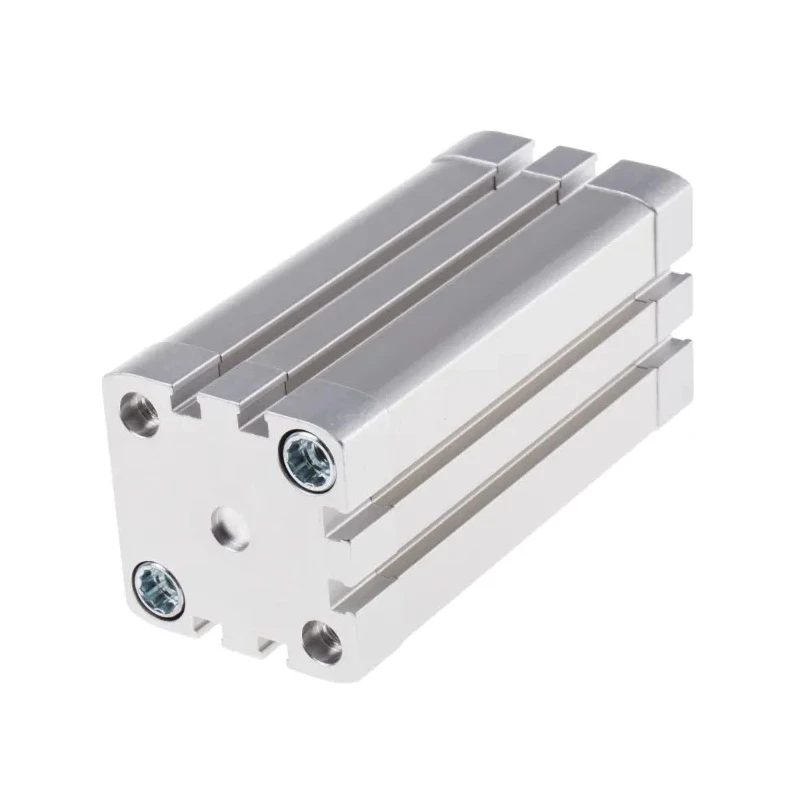

Festo Pneumatic Cylinder ADN Series Double Acting 40mm Bore 80mm Stroke ADN-40-80-I-P-A

Festo ADN-40-80-I-P-A Pneumatic Cylinder is a compact double acting pneumatic actuator with a 40mm bore diameter and an 80mm stroke length designed for efficient linear motion control in various industrial applications.

The pneumatic cylinder conforms to ISO 21287 and RoHS standards, featuring an aluminum body that provides lightweight durability and excellent corrosion resistance. Its double acting design allows air pressure to extend and retract the piston rod for precise control of the motion.

The unit operates with a maximum pressure of 10 bar, supports temperatures from -20°C up to 80°C, and includes a cushioned polymer end for quiet operation and reduced mechanical stress. The piston rod is single with a female thread size of 1/8 inch G, suitable for various mounting arrangements via the through-hole mount type.

Magnetic piston rods enable contactless position detection using proximity sensors fitted in the designed slots along the cylinder body. This feature allows integration into automated systems requiring accurate positioning feedback.

The cylinder is optimised for installation flexibility, supporting both horizontal and vertical mounting orientations. Optional accessories such as swivel brackets and foot mounts further expand application use cases by allowing free movement or added support under heavy loads.

Manufactured in Germany, this pneumatic cylinder combines compact size with robust performance, ideal for fluid power applications in industrial, manufacturing, and automation environments. Its flexible cushioning reduces noise and vibration, thereby prolonging service life while maintaining high productivity levels.

The cylinder complies with ISO 21287 standards and features cushioned aluminum body construction. It operates at a maximum pressure of 10 bar and supports a temperature range from -20°C to 80°C. Equipped with a single female piston rod with 1/8 in G thread size and through-hole mount type for versatile installation.

Slots along the body allow mounting of proximity sensors for position detection. Flexible polymer end cushioning reduces noise and vibration to enhance durability and productivity. Suitable for horizontal or vertical mounting and can be combined with accessories such as swivel brackets or foot mounts.

Made in Germany ensuring high quality and precision engineering. Explore EnvMart for more advanced Pneumatic Cylinders and fluid power solutions from Festo and other leading industrial brands.
