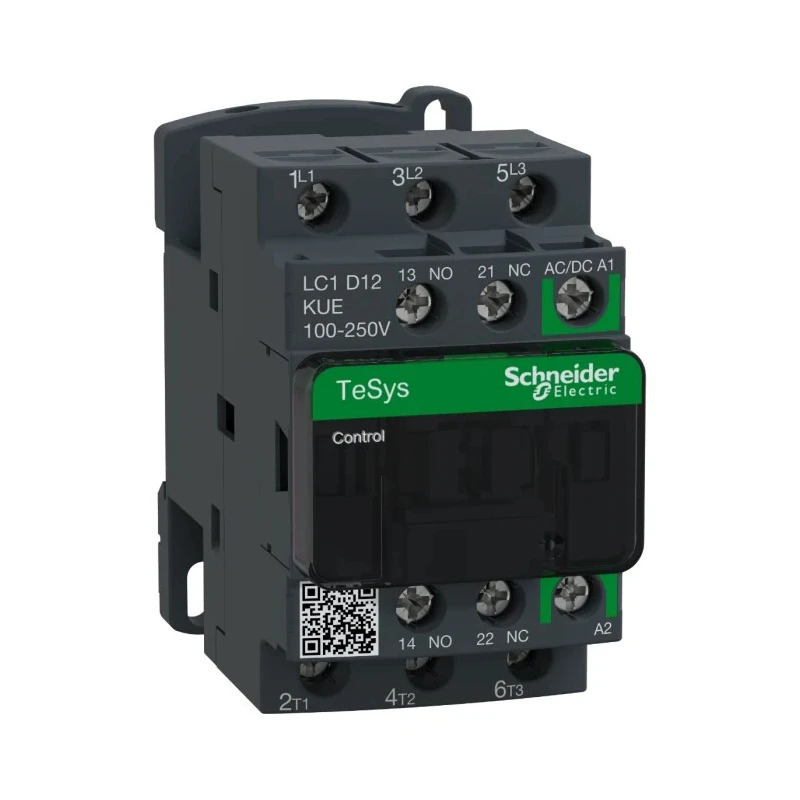

Schneider Electric Contactor 3-Pole 12A, 5.5 kW 250V Motor Control, DIN Rail Mount LC1D

Schneider Electric LC1D12KUE is a high-quality Contactor designed for reliable motor control and resistive load applications. This 3-pole contactor operates with a 230V AC coil voltage and has a contact current capacity of 12 amperes, enabling it to handle significant industrial loads with ease. It is rated for 5.5 kW power at 250V and supports contact voltages up to 690V AC, making it suitable for a wide range of electrical applications.

Constructed for durability, the LC1D12KUE features IP20 finger-safe screw terminals that comply with both North American and international terminal markings, offering safe and secure electrical connections. The contactor is designed for DIN rail mounting, simplifying installation in control panels. It includes 3 normally open contacts essential for robust switching and two auxiliary contacts (1 NO/1 NC) for added functionality in control circuits.

The device functions reliably within ambient temperature conditions ranging from -25°C to 60°C, supporting operation in diverse industrial environments. It complies with widely recognized safety and quality standards including CCC, CSA, EAC, IEC, RoHS, and UL certifications, underscoring its compliance for global industrial use.

Schneider Electric’s TeSys D contactors, including this model, provide excellent resistance to mechanical shock and vibration. The coil offers a wide control voltage range and low power consumption, with built-in bidirectional peak limiting diode suppressors to protect coil integrity and extend operational lifespan. These contactors are particularly suitable for motor control where breaking occurs under running conditions and resistive load applications.

The contactor is ideal for use in industrial automation, manufacturing facilities, HVAC systems, water treatment plants, and commercial motor control installations. Its flexible control circuit design and availability of numerous accessories such as auxiliary contact blocks and time delay blocks ensure versatile application adaptability and customization.

Features a 230V AC coil voltage ensuring compatibility with standard control circuits. Rated for a maximum contact voltage of 690V AC and contact current of 12 amperes. Power rated at 5.5 kW at 250V, suitable for diverse industrial motor control.

Includes 3 normally open (NO) contacts and 2 auxiliary contacts configured as 1 NO and 1 NC. Mounts easily on DIN rails with reliable screw terminal connections. Offers excellent mechanical and electrical durability with IP20 finger-safe terminals.

Operates within an ambient temperature range of -25°C to 60°C for versatile environments. Compliant with multiple international standards including CCC, CSA, EAC, IEC, RoHS, and UL. Designed for easy integration into control systems to create reliable motor starters.

Contains built-in bidirectional peak limiting diode suppressor for coil protection. Explore more Schneider Electric electrical components and Contactors at EnvMart for dependable industrial automation solutions.
