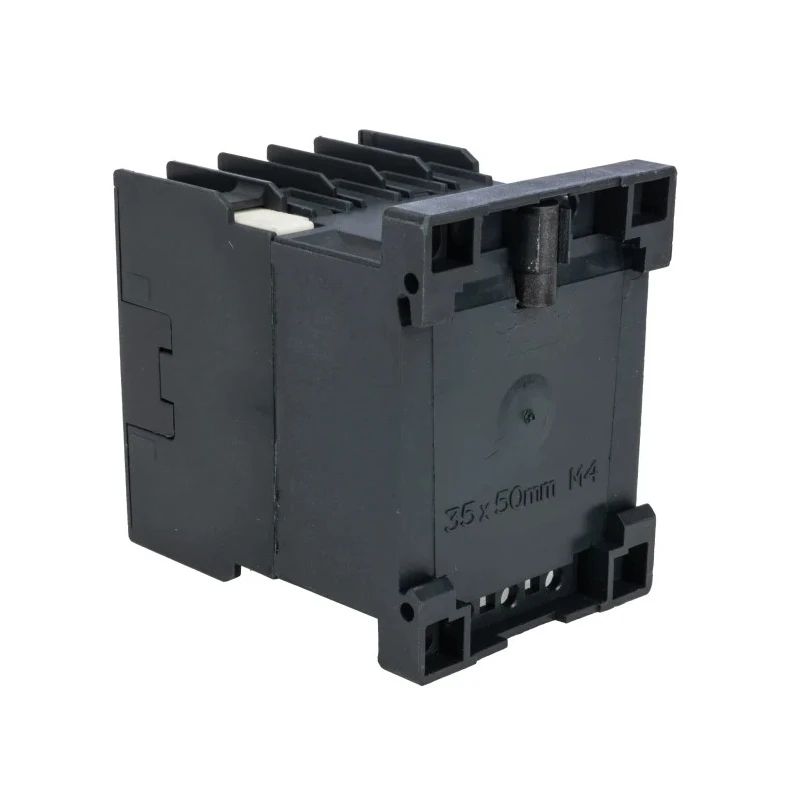

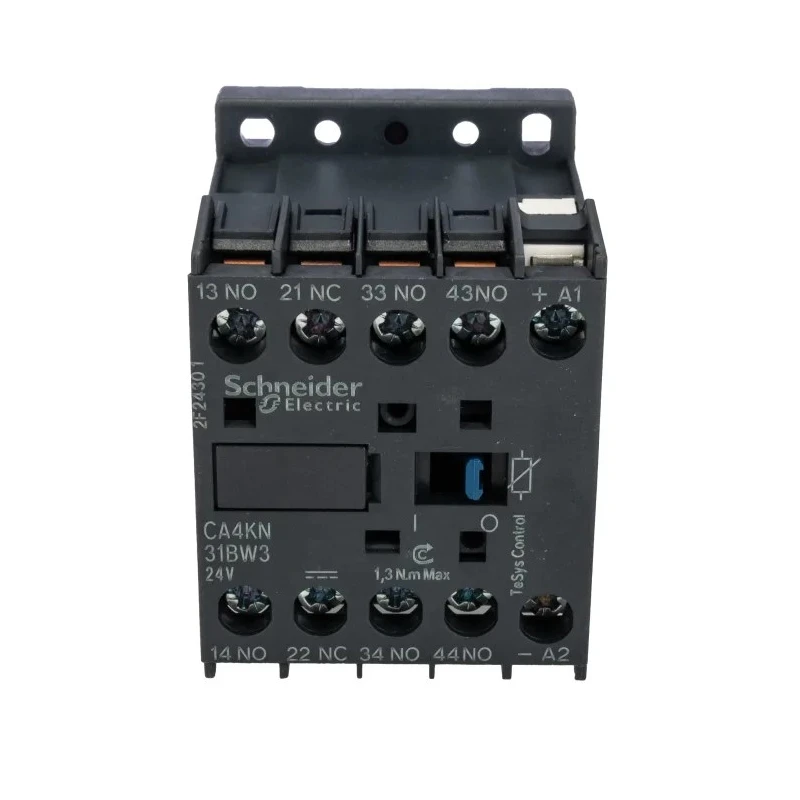

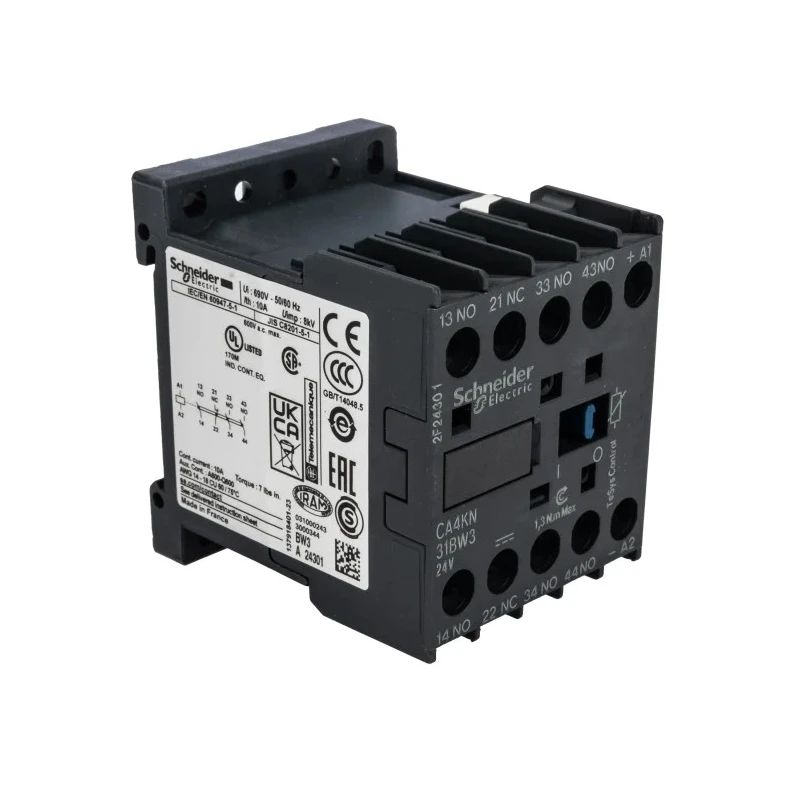

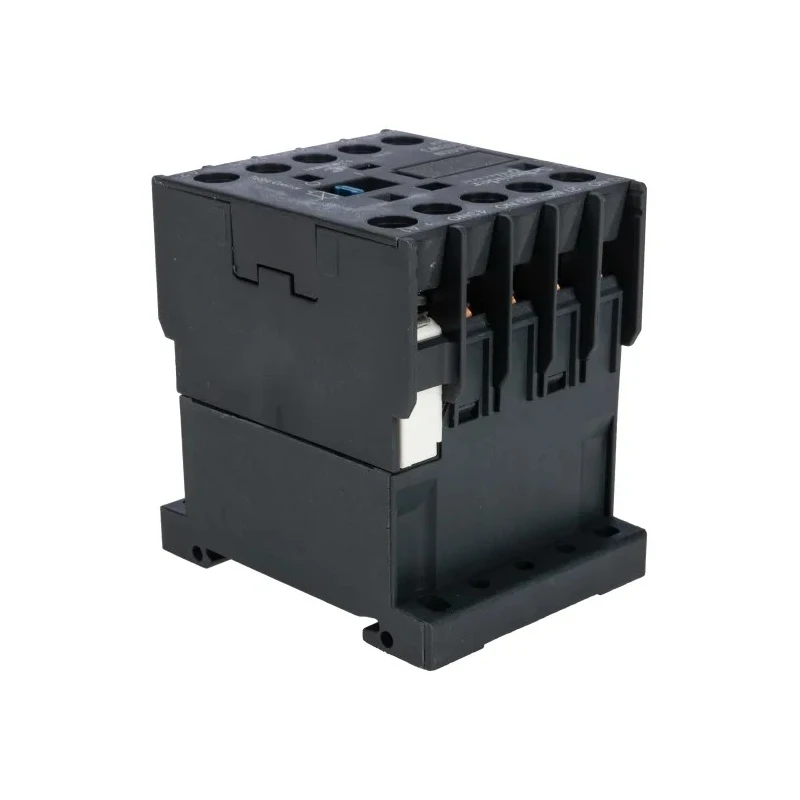

Schneider Electric Contactor CA4KN31BW3, 24V DC Coil, 4-Pole, 10 A Contact Current, 690V AC, DIN Rail Mount
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Control Relay |
| Length | 58mm |
| Model | CA4KN31BW3 |
| Depth | 57mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | CA4KN |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Number of Poles | 4 |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 3 NO/1 NC |
| Better World Claim | Designed for Disassembly |
| Contact Current | 10A |
| Number of Auxiliary Contacts | 4 |
| Auxiliary Contact Configuration | 3 NO/1 NC |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Control Relay |
| Pole and Throw Configuration | 4 |
Key Features
- Equipped with a 24V DC coil voltage for efficient operation.
- Features a 4-pole configuration supporting 10A contact current at 690V AC.
- Compact DIN rail mount design measuring 58mm (L) x 45mm (W) x 57mm (D) for easy panel integration.
- Includes 3 normally open (NO) and 1 normally closed (NC) contacts providing robust switching control.
- Screw clamp terminals ensure reliable and secure connections even under vibration conditions.
- Designed to operate within a temperature range of -25°C to 50°C, suitable for demanding industrial environments.
- Low consumption coil with built-in bidirectional diode suppressor reduces power spikes and extends relay life.
- Meets multiple international standards and approvals including CB scheme, CE, UL, and RoHS.
Product Description
Schneider Electric CA4KN31BW3 contactor is a 4-pole control relay designed for industrial automation and motor control applications delivering dependable performance with low power consumption.
This device operates on a 24V DC coil, supporting control voltages of 24V DC and contact current up to 10A at 690V AC. Its compact form factor (58mm length, 45mm width, and 57mm depth) allows easy integration into control panels via DIN rail or plate mounting.
The contactor features three normally open and one normally closed contacts, with screw clamp terminals that ensure firm and durable electrical connections, particularly effective in conditions with vibration and mechanical shock.
Engineered for demanding use, the contactor supports a maximum operating temperature of 50°C and a minimum of -25°C. Its low-consumption coil includes an internal bidirectional peak-limiting diode suppressor that minimizes power spikes during motor starts, providing protection to connected equipment and reducing overall energy consumption.
This product complies with a wide range of certifications and standards such as CB scheme, CCC, CE, CSA, EN/IEC 60947-4-1, RoHS, UKCA, and UL 60947-4-1, ensuring quality and safety in global industrial environments.
Applications include automotive manufacturing, oil and gas industries, lifting and hoisting equipment, and shipyard operations, where reliable contact switching and durability under vibration are crucial.
The Schneider Electric CA4KN31BW3 contactor is part of the TeSys K Series, known for excellent performance and compactness ratios suitable for control relay applications up to 5.5 kW at 400/415 V. With 60% recyclability and designed for disassembly, it supports environmental sustainability commitments.
Equipped with 24V DC coil for low-consumption motor control. Compact dimensions suited for dense control panels. Maximum operating rate of 6,000 cycles per hour to support high-demand circuits. Durable screw clamp terminals maintain reliable contacts in vibration-prone environments.
Compliant with global industrial and safety certifications. Designed with environmental sustainability in mind.
Explore more Schneider Electric Contactors and control relays to enhance your industrial and manufacturing automation solutions with EnvMart's comprehensive catalog and expert support.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a contact current of up to 10A.
It operates on a 24V DC coil voltage.
The maximum contact voltage is 690V AC.
The dimensions are 58mm in length, 45mm in width, and 57mm in depth.
This contactor features a 4-pole configuration.
It is equipped with screw clamp terminals for secure connections.
It operates within a temperature range of -25°C to 50°C.
The contact configuration includes 3 normally open (NO) and 1 normally closed (NC) contact.
This unit is designed for DIN rail mounting.
It is suitable for industrial automation and motor control applications, including automotive manufacturing and oil and gas industries.
It meets multiple international standards including CB scheme, CE, UL, and RoHS.
It supports a maximum operating rate of 6,000 cycles per hour.
