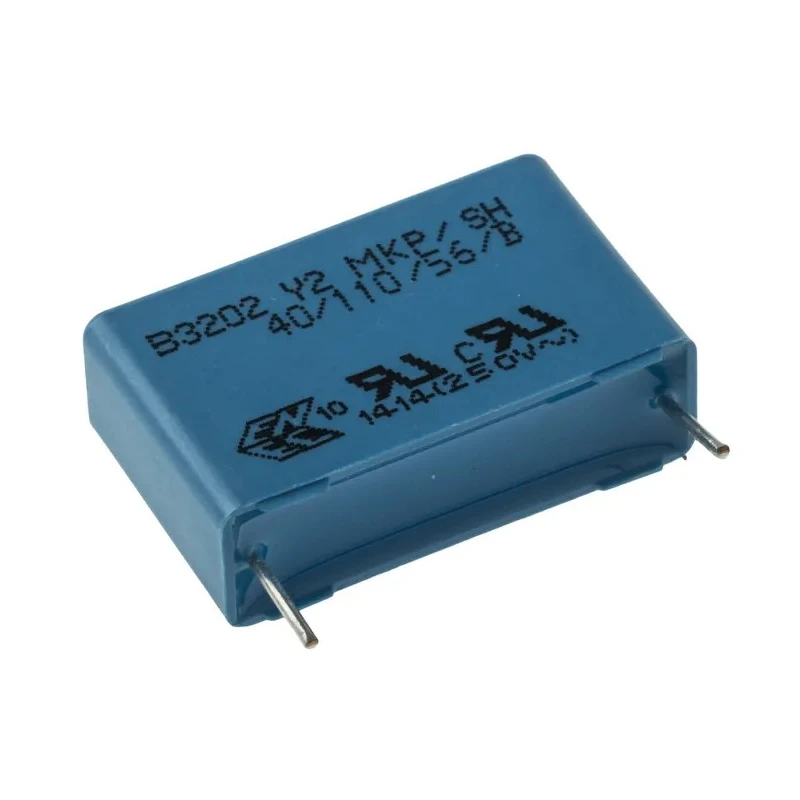

TDK B32023 Film Capacitor 100 nF 300V AC 300 V DC Through Hole, 2 Pin, 110°C Max, 22.5mm Lead Pitch B32023A3104M000

TDK B32023A3104M000 is a film capacitor designed for electronic applications requiring stable capacitance and high voltage ratings. This capacitor offers 100 nF capacitance with a rated AC and DC voltage of 300V, delivered in a durable through hole mounting format suitable for PCB assembly.

The capacitor uses polypropylene construction encapsulated in a UL 94 V-0 rated plastic case, combined with epoxy resin sealing to provide excellent electrical insulation and environmental protection. The compact form factor, including a length of 26.5mm, height of 16.5mm, width of 8.5mm, and a lead pitch of 22.5mm, allows for dense PCB layouts.

Operating temperatures range from -40°C up to 110°C, meeting demanding industrial and commercial temperature requirements. Its Y2 suppression class rating makes it ideal for interference suppression tasks and line-to-ground applications in electrical circuits.

Polypropylene construction with plastic case and epoxy sealing. High voltage capability with rated AC/DC voltages of 300V. Operation temperature between -40°C and 110°C for versatile environmental endurance. Compact dimensions ensure easy PCB integration.

Standards compliance: CSA, UL certifications confirm product safety and quality. Two-pin through hole mount design with 0.8mm lead diameter. Good self-healing properties ensure long service life.

Typical applications include using this capacitor for EMI suppression and safety in line-to-ground circuitry in industrial, electronic, and power supply equipment. The product meets stringent electrical and safety standards with EN 132400, IEC 60384-14, UL1414, UL1283, and CSA certifications, ensuring reliability in critical applications.
