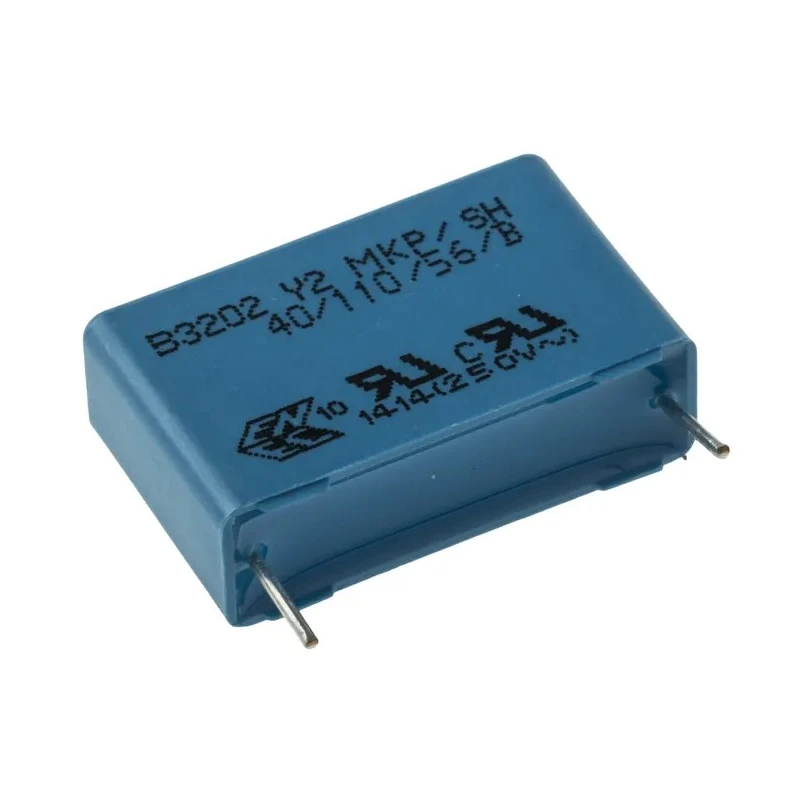

TDK Film Capacitor Through Hole 100 nF 300V AC 300 V DC Polypropylene B32023A3104M000

Free Delivery in India | Lowest Global Shipping Charges

TDK Film Capacitor Through Hole 100 nF 300V AC 300 V DC Polypropylene B32023A3104M000



Category Film Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Operating Temperature	-40 → 110 °C
Height	16.5mm
Length	26.5mm
Model	B32023A3104M000
Width	8.5mm
Mount Type	Through Hole
Series	B32023
Maximum Operating Temperature	110°C
Capacitance	100nF
Standards/Approvals	CSA, UL
Pin Count	2
Rated AC Voltage	300V ac
Rated DC Voltage	300V dc
Lead Pitch	22.5mm
Lead Diameter	0.8mm
Suppression Class	Y2

Key Features

This capacitor features a Y2 suppression class for interference suppression and line to ground applications.
It has a compact size with dimensions of 26.5 mm length, 16.5 mm height, and 8.5 mm width.
The lead pitch is 22.5 mm with a lead diameter of 0.8 mm and 2 pins for secure mounting.
The capacitor is constructed with polypropylene and comes in a plastic case with epoxy resin sealing for durability.
It withstands a maximum operating temperature of up to 110°C and operates reliably between -40 to 110°C.
Certified to standards including CSA and UL, suitable for industrial and electronic applications.
Designed for use in interference suppression circuits and direct mains connection with caution against shock risk.
Manufactured in India with robust self-healing properties for high voltage capability and long service life.

Product Description

TDK B32023A3104M000 film capacitor is a polypropylene film capacitor designed for through hole mounting. It has a capacitance of 100 nF and dual voltage ratings of 300V AC and 300 V DC, making it suitable for various electrical and electronic circuits requiring reliable suppression of electrical noise and interference.

The capacitor has a compact and robust construction with a plastic case complying with UL 94 V-0 and epoxy resin sealing also meeting UL 94 V-0 flammability standards. It offers a safe and durable solution for interference suppression in industrial, manufacturing, and electronic systems.

With a lead pitch of 22.5 mm and pin count of 2, it fits standard through hole PCB layouts. It supports a maximum operating temperature of 110 degrees Celsius and functions reliably within a wide temperature range from -40 to 110 °C.

Certified to CSA and UL standards, this capacitor is ideal for use in Y2 class interference suppression and line to ground applications, common in electrical power supplies, HVAC controls, industrial machinery, and commercial electronic devices. It features excellent self-healing properties to enhance durability under high voltage stress.

This capacitor has a polypropylene dielectric with a plastic UL 94 V-0 case and epoxy resin sealing. Typical applications include interference suppression and direct mains connection in industrial and electrical systems.

The compact dimensions are 26.5 mm length, 16.5 mm height, and 8.5 mm width. The lead pitch is 22.5 mm with a 0.8 mm lead diameter and 2-pin through hole mounting. Rated for 300V AC and 300 V DC operation with a capacitance of 100 nF.

Operating temperature range is from -40 to 110 degrees Celsius. Approved to CSA and UL standards assuring safety and reliability. Manufactured in India with high voltage capability and self-healing properties. Explore the full range of TDK Film Capacitors and other electronic components at EnvMart for industrial, manufacturing, laboratory, HVAC, and power supply applications.
