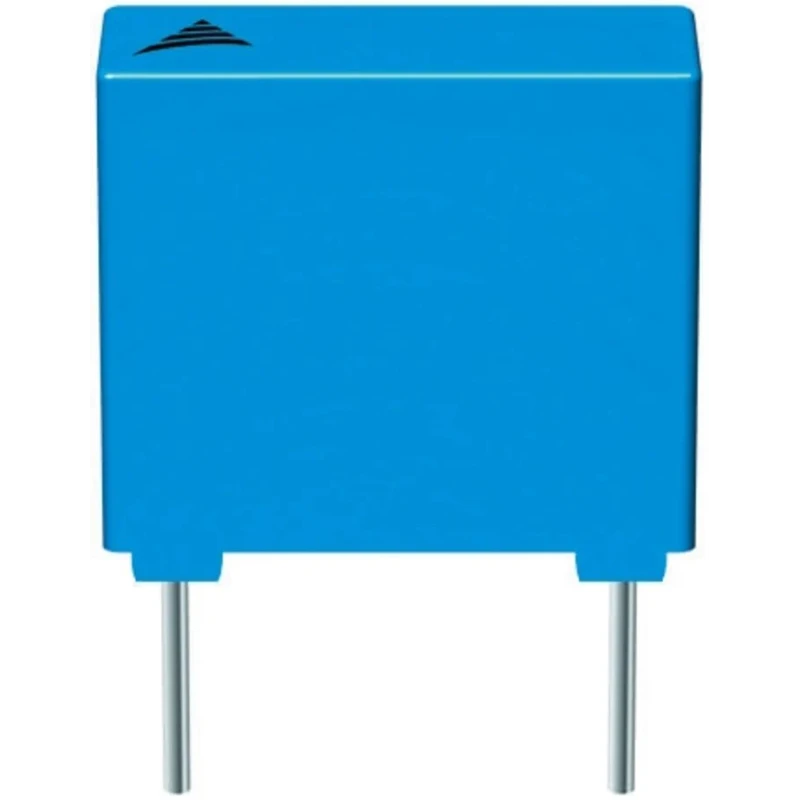

TDK B32023 Film Capacitor 56 nF 300V AC 300 V DC Through Hole 2 Pin 110°C B32023A3563M000

TDK B32023A3563M000 film capacitor features a 56 nF capacitance rating, with dual voltage rating of 300V AC and 300V DC. This through hole component incorporates polypropylene construction encased in plastic (UL 94 V-0) and sealed with epoxy resin (UL 94 V-0), ensuring excellent insulation and durability. The compact form factor measures 26.5 mm in length, 15 mm in height, and 6 mm in width, making it suitable for space-constrained PCB designs.

Designed for industrial and electronic applications requiring high reliability, the capacitor operates safely at temperatures ranging from -40°C to 110°C. Its 22.5 mm lead pitch and 0.8 mm lead diameter accommodate standard through-hole mounting techniques. The device carries certifications from CSA and UL, certifying compliance with electrical safety standards.

This capacitor belongs to the B3202* series and benefits from excellent self-healing properties and high voltage endurance. It is typically utilized for Y2 class interference suppression and "line to ground" configurations in power supplies and electronic equipment.

Operating temperature tolerance and compact dimensions enable it to perform reliably in industrial, laboratory, HVAC, manufacturing, and commercial electronics environments where stable capacitance and insulation are critical.

Constructed of polypropylene with plastic case and epoxy resin sealing. Rated for 300 V AC and 300 V DC operating voltages. Compact dimensions: 26.5 mm (L) x 6 mm (W) x 15 mm (H). Lead pitch of 22.5 mm and pin count of 2 for through-hole mounting.

Operating temperature range: -40°C to 110°C. Certified to CSA and UL safety standards. Exhibits enhanced self-healing and high voltage capability.

This Film Capacitor is essential for electronic component designs demanding stable capacitance, insulation, and safety compliance. Find additional technical documents, RoHS certification, and design support resources online. Explore full capacitor selections at EnvMart for reliable passive components.
