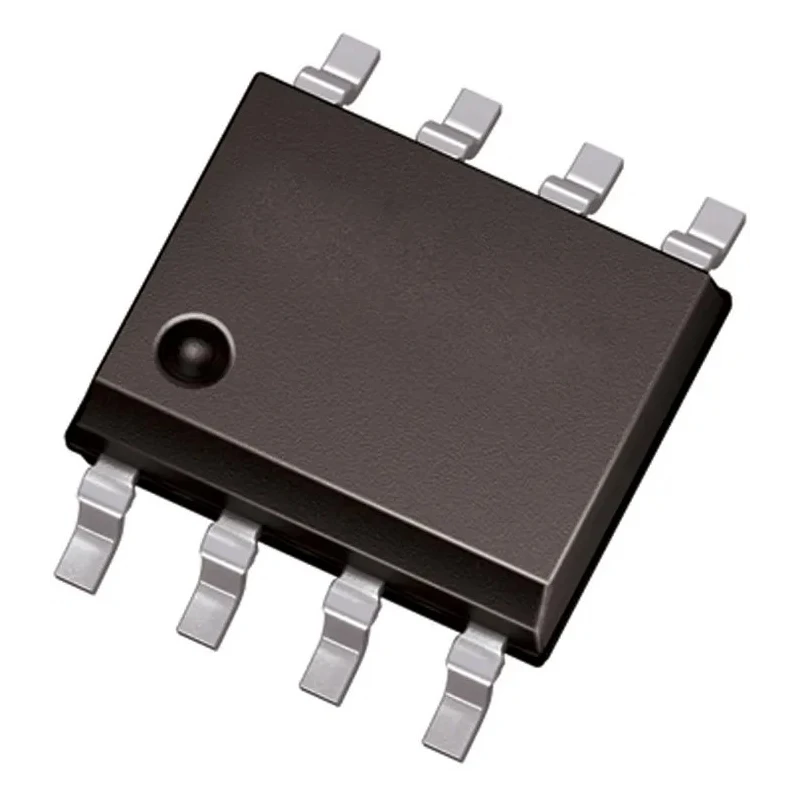

Infineon PROFET Smart High-Side Power Switch IC 5 Outputs 1 Input Surface Mount DSO-8 Package BTS50301EJAXUMA1

Free Delivery in India | Lowest Global Shipping Charges

Infineon PROFET Smart High-Side Power Switch IC 5 Outputs 1 Input Surface Mount DSO-8 Package BTS50301EJAXUMA1

Name: Infineon PROFET Smart High-Side Power Switch IC 5 Outputs 1 Input Surface Mount DSO-8 Package BTS50301EJAXUMA1
Brand: Infineon
SKU: 138874
Price: 1.55 USD
Availability: InStock



Category Power Switch ICs Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Height	1.45mm
Length	4.9mm
Model	BTS50301EJAXUMA1
Width	3.9mm
Mount Type	Surface
Number of inputs	1
Series	PROFET
Maximum Operating Temperature	150°C
Package Type	DSO-8
Minimum Operating Temperature	-40°C
Operating Current	5A
Number of outputs	5
Pin Count	8
Automotive Standard	AEC
Maximum Supply Voltage	28V
Minimum Supply Voltage	-0.3V
Switch On Resistance RdsOn	60mΩ

Key Features

Features a switch on resistance of 60mΩ for efficient power handling.
Operates with a supply voltage range from -0.3V to 28V.
Supports operating current up to 5A under wide temperature range from -40°C to 150°C.
Includes overload, short-circuit, thermal shutdown, overvoltage and ESD protections.
Compact DSO-8 surface mount package with dimensions 4.9mm x 3.9mm x 1.45mm.
Meets automotive AEC standards for reliable use in automotive systems.
Single-channel high-side switch topology optimized for robust control.
Ideal for automotive and industrial power management applications.

Product Description

Infineon BTS50301EJAXUMA1 is a high-performance PROFET Smart High-Side Power Switch designed to deliver reliable power management in automotive and industrial electronics. This single-channel power switch IC integrates advanced protection features including overload protection, current limitation, short-circuit protection, thermal shutdown, overvoltage protection, and electrostatic discharge (ESD) protection, ensuring device safety and system reliability during demanding operations.

The device supports operation over a wide supply voltage range from -0.3V to 28V with a maximum operating current of 5A. It performs efficiently with a low switch on resistance of 60mΩ, reducing power loss and heat generation. Its package is a space-saving 8-pin DSO-8 surface mount type, featuring compact dimensions of 4.9mm in length, 3.9mm in width, and 1.45mm in height, ideal for compact PCB layouts in automotive and industrial applications.

Designed to meet automotive AEC standards, the BTS50301EJAXUMA1 is suitable for use in various power management tasks requiring precise and safe power switching. This product supports multiple outputs and a single input configuration, providing flexible system integration options.

The device is widely applied in power control modules, automotive power distribution, and industrial machinery where high reliability and protection are critical. Its advanced electronic protections enhance the operational lifetime of equipment and provide safety assurance in harsh environments.

Switch on resistance of 60mΩ for low conduction losses. Wide supply voltage range: -0.3V to 28V. High operating current capability of 5A. Robust protection features: overload, short-circuit, thermal shutdown, overvoltage, and ESD protection.

Compact DSO-8 surface mount package for efficient PCB usage. Compliant with automotive AEC standards ensuring high reliability. Suitable for automotive and industrial power management applications.

Enhance your electronic design with Infineon's BTS50301EJAXUMA1 Power Switch IC available on EnvMart, the trusted platform for industrial and electronic components. Discover more power management solutions and Infineon products to meet your design needs.
