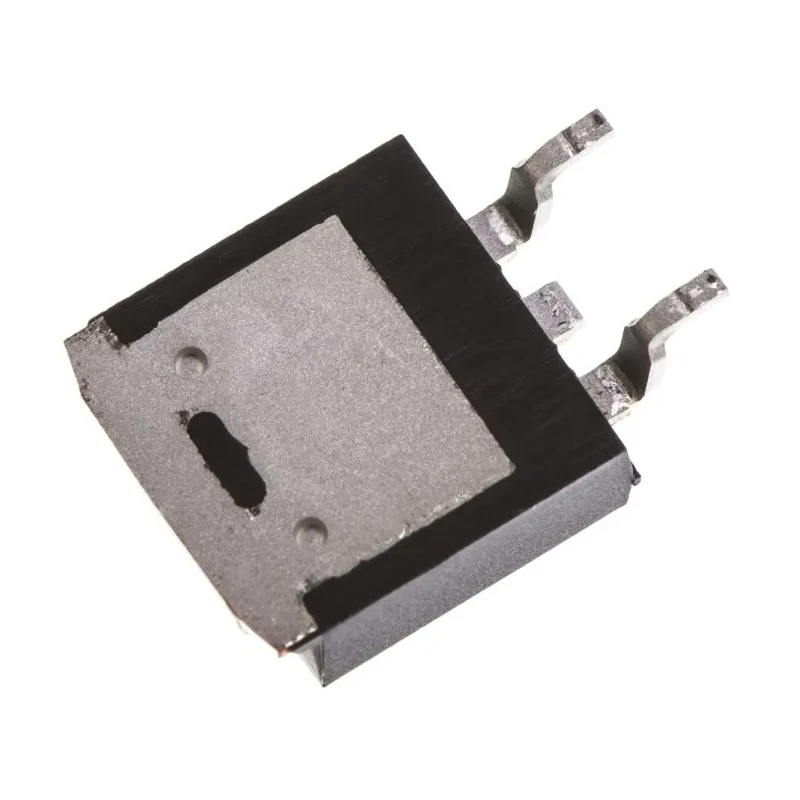

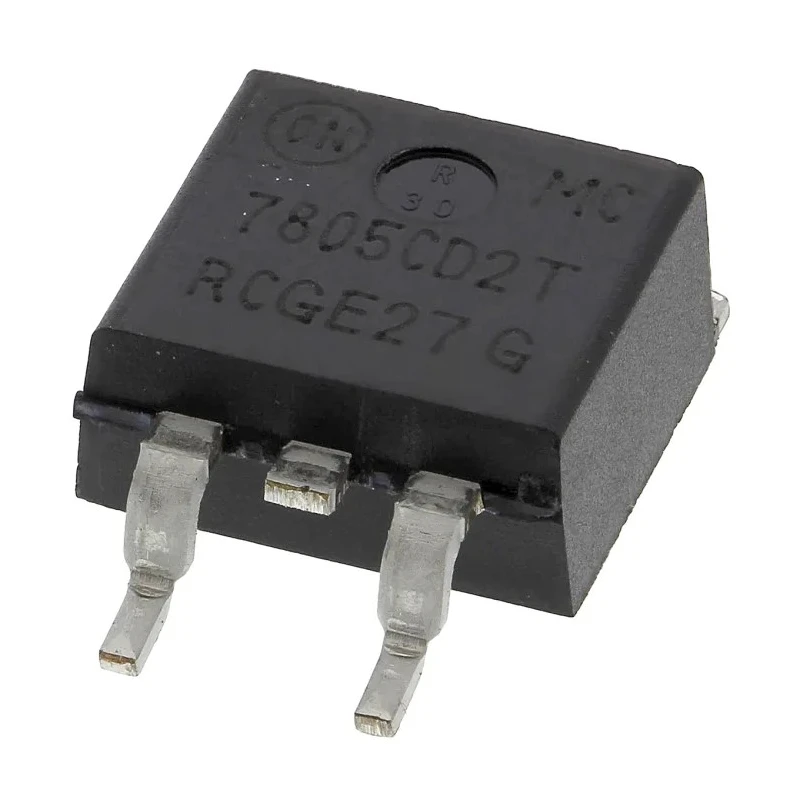

onsemi 5V Linear Voltage Regulator Surface Mount 3-Pin 3.2mA Quiescent Current MC7805CD2TG
Specifications
| Country of Origin | India |
|---|---|
| Voltage | Regulators onsemi, Voltage Regulator 35V 3-Pin RS Stock No |
| Brand | onsemi |
| Height | 30.02mm |
| Length | 10.24mm |
| Model | MC7805CD2TG |
| Width | 9.35mm |
| Mount Type | Surface |
| Series | MC78xx |
| Maximum Operating Temperature | 125°C |
| Polarity | Positive |
| Maximum Input Voltage | 35V |
| Quiescent Current | 3.2mA |
| Minimum Input Voltage | 5V |
| Pin Count | 3 |
| Automotive Standard | AEC-Q100 |
Key Features
- Provides fixed 5V output voltage for reliable power regulation.
- Surface mount mount type designed for compact PCB applications.
- Features a low quiescent current of 3.2mA to minimize power loss.
- Integrated thermal overload protection and current limiting enhance device safety.
- Operates within input voltage range of 5V to 35V with a maximum operating temperature of 125°C.
- Three-pin package allows for easy integration into electronic circuits.
- Positive polarity to provide consistent voltage regulation.
- Complies with automotive standard AEC-Q100 for enhanced reliability.
Product Description
onsemi MC7805CD2TG is a fixed 5V linear voltage regulator designed for surface mount applications requiring precision voltage regulation. This 3-pin positive polarity regulator is ideal for electronic devices needing a stable and reliable power supply. It operates effectively over a wide input voltage range from 5V to 35V and features a low quiescent current of 3.2mA, making it energy efficient.
The device incorporates internal thermal overload protection and current limiting, ensuring protection against overheating and faults, which makes it suitable for demanding industrial and automotive environments compliant with the AEC-Q100 standard. Its compact size with a length of 10.24mm, width of 9.35mm, and height of 30.02mm allows easy integration into dense circuit board layouts.
This Voltage Regulator family (MC78xx series) is widely used in industrial electronics, power management ICs, and embedded systems for reliable local on-card regulation. The MC7805CD2TG provides designers with a high-performance solution for managing 5V power rails under varying load and input conditions.
Provides fixed 5V output voltage for reliable power regulation. Surface mount mount type designed for compact PCB applications. Features a low quiescent current of 3.2mA to minimize power loss. Integrated thermal overload protection and current limiting enhance device safety.
Operates within input voltage range of 5V to 35V with a maximum operating temperature of 125°C. Supports automotive standard AEC-Q100 for enhanced reliability and quality assurance. Suitable for use in electronic equipment including automotive, industrial, and consumer devices.
Compact form factor eases design requirements for space-constrained boards. Explore more power management ICs and voltage regulation solutions on EnvMart’s Electronics & Electricals category for your industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model provides a fixed output voltage of 5V for reliable power regulation.
It operates within an input voltage range of 5V to 35V.
The quiescent current is 3.2mA, which helps to minimize power loss.
The dimensions are 10.24mm in length, 9.35mm in width, and 30.02mm in height.
The maximum operating temperature is 125°C.
Yes, it complies with the automotive standard AEC-Q100 for enhanced reliability.
It is designed for surface mount applications, making it suitable for compact PCB layouts.
This model features a 3-pin configuration for easy integration into electronic circuits.
It has a positive polarity, providing consistent voltage regulation.
It includes thermal overload protection and current limiting to enhance device safety.
It is suitable for electronic equipment including automotive, industrial, and consumer devices.
