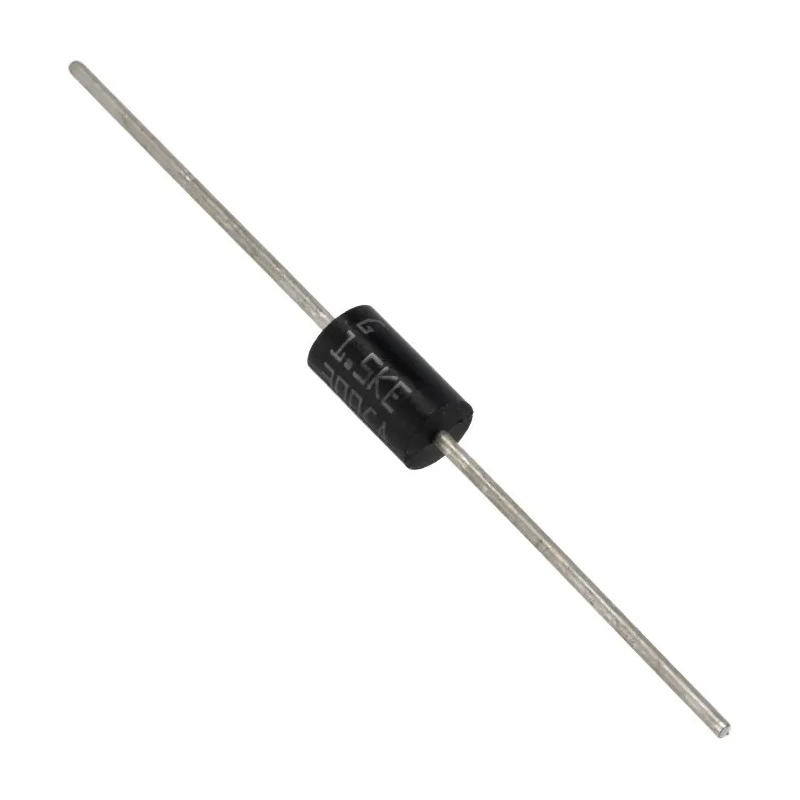

STMicroelectronics 1-Element Bi-Directional TVS Diode 1.5 kW, 2-Pin DO-201 1.5KE300CA
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | STMicroelectronics |
| Height | 5.3mm |
| Length | 9.5mm |
| Model | 1.5KE300CA |
| Width | 5.3mm |
| Mount Type | Through Hole |
| Series | 1.5KE |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-201 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 529V |
| Diode Configuration | Single |
| Direction Type | Bi-Directional |
| Minimum Breakdown Voltage Vbr | 285V |
| Maximum Reverse Stand-off Voltage Vwm | 256V |
| Peak Pulse Power Dissipation Pppm | 1.5kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 19A |
| Maximum Reverse Leakage Current | 1μA |
Key Features
- Provides bi-directional transient voltage suppression.
- Supports a maximum peak pulse current of 19 A.
- Designed for through hole mounting with DO-201 package type.
- Operates within a temperature range of -65°C to 175°C.
- Minimum breakdown voltage of 285 V and clamping voltage of 529 V.
- Maximum reverse stand-off voltage rating of 256 V.
- Single diode element configuration for reliable protection.
- Compact dimensions approximately 9.5 mm length and 5.3 mm diameter.
Product Description
STMicroelectronics presents the 1.5KE300CA, a high-performance 1-element bi-directional Transient Voltage Suppression (TVS) diode. Built for industrial and electronic circuit protection, this TVS diode delivers a peak pulse power dissipation of 1.5 kW, making it suitable for safeguarding sensitive components against voltage spikes, surges, and transient events.
This diode features a single element in a 2-pin DO-201 through hole package, facilitating ease of mounting in various electronic assemblies. Its compact form factor with dimensions of 9.5 mm length and 5.3 mm diameter allows integration into space-constrained designs.
The 1.5KE300CA operates bi-directionally, enabling it to protect circuits from both positive and negative transient voltages. It has a minimum breakdown voltage of 285 V, a maximum reverse stand-off voltage of 256 V, and a clamping voltage of 529 V, ensuring robust voltage regulation during transient events. The device supports a maximum peak pulse current of 19 A, providing reliable surge absorption capabilities.
With an operating temperature range from -65°C up to 175°C, the diode is suited for harsh environments and demanding industrial applications. Its low maximum reverse leakage current of 1 µA minimizes steady-state power loss, enhancing overall circuit efficiency.
This TVS diode does not include ESD protection features but excels in transient voltage suppressor roles for industrial, manufacturing, construction, and power electronics equipment.
Provides bi-directional transient voltage suppression. Single element configuration for consistent protection. High peak pulse power rating of 1.5 kW. Compact DO-201 through hole package. Temperature operation range from -65°C to 175°C.
Low leakage current and robust voltage ratings.
Ideal for applications in power supplies, industrial controls, and electronic circuit protection. Incorporate STMicroelectronics 1.5KE300CA diodes for enhanced reliability and durability in voltage transient mitigation.
Explore the Electronics & Electricals category on EnvMart for a full range of TVS Diodes from various brands to meet diverse technical requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of the 1.5KE300CA diode is 1.5 kW, making it suitable for protecting sensitive components against voltage spikes and surges.
The maximum reverse stand-off voltage for the 1.5KE300CA is 256 V, which helps ensure reliable operation under transient conditions.
The minimum breakdown voltage of the 1.5KE300CA is 285 V, providing effective voltage regulation during transient events.
This diode supports a maximum peak pulse current of 19 A, allowing it to absorb significant surges effectively.
The dimensions of the 1.5KE300CA diode are approximately 9.5 mm in length and 5.3 mm in diameter, making it compact for various applications.
The operating temperature range for the 1.5KE300CA is from -65°C to 175°C, suitable for harsh environments.
The 1.5KE300CA uses a DO-201 package type, designed for through hole mounting in electronic assemblies.
Yes, the 1.5KE300CA is a bi-directional diode, providing protection against both positive and negative transient voltages.
The clamping voltage of the 1.5KE300CA is 529 V, which helps to limit voltage spikes during transient events.
The maximum reverse leakage current for the 1.5KE300CA is 1 µA, which minimizes steady-state power loss in circuits.
The 1.5KE300CA diode has a single element configuration, providing consistent protection against transients.
This diode is suitable for applications in power supplies, industrial controls, and electronic circuit protection, safeguarding sensitive components from voltage transients.
