XP Power ECL30UD02-E Switching Power Supply, 2 Outputs, 15V DC, 30W, 264V AC, PCB Mount

Free Delivery in India | Lowest Global Shipping Charges

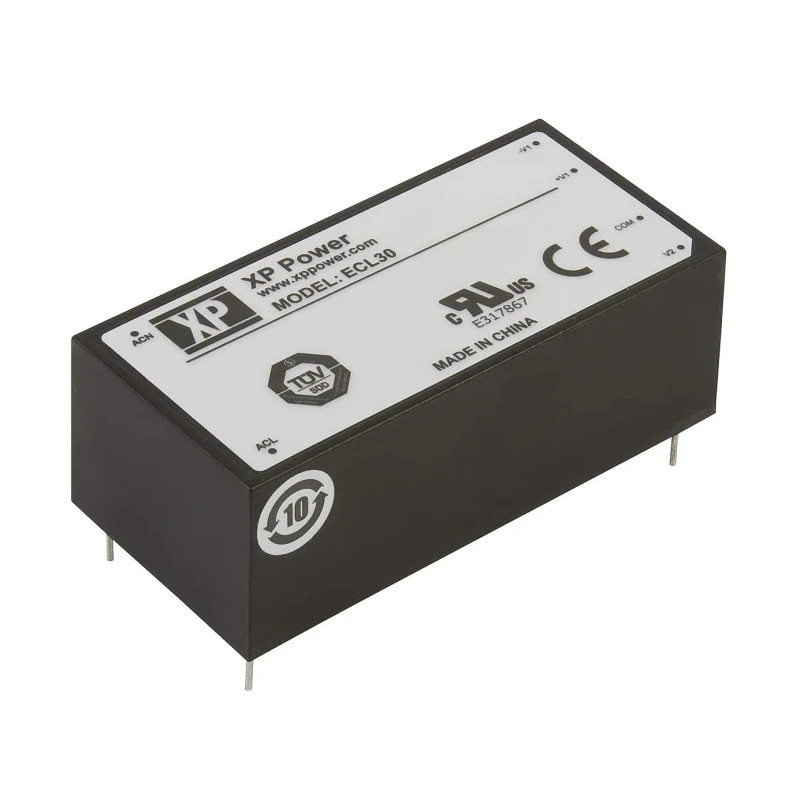

XP Power ECL30UD02-E Switching Power Supply, 2 Outputs, 15V DC, 30W, 264V AC, PCB Mount

Name: XP Power ECL30UD02-E Switching Power Supply, 2 Outputs, 15V DC, 30W, 264V AC, PCB Mount
Brand: XP Power
SKU: 91018



Category Switching Power Supplies Brand XP Power Condition New

Specifications

Country of Origin	China
Brand	XP Power
Power	30W
Efficiency	83%
Length	78.7mm
Model	ECL30UD02-E
Depth	28mm
Gross Weight	155g
Width	38.1mm
Mount Type	PCB
Series	ECL
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-20°C
Number of outputs	2
Maximum Input Voltage	264V ac
Maximum Output Voltage	15V dc
SMPS Output Current	1A
Minimum Input Voltage	85V ac

Key Features

Provides dual 15V DC outputs for versatile power requirements.
Delivers a maximum power output of 30W for demanding electronic loads.
PCB mount configuration ensures secure and reliable installation.
Wide input voltage range of 85V to 264V AC for global compatibility.
Operating temperature range from -20°C to 70°C for robust performance.
Ultra-compact design with dimensions of 78.7mm length, 38.1mm width, and 28mm depth.
Efficiency rating up to 83%, reducing power losses and heat.
Lightweight at only 155g, ideal for embedded and modular setups.

Product Description

XP Power ECL30UD02-E is an industrial-grade switching power supply designed for robust electronic and automation environments. Featuring dual 15V DC outputs and a compact PCB mount form factor, it reliably delivers up to 30W of output power while maintaining high efficiency and low thermal profiles. Engineered with a wide AC input range from 85V to 264V, the ECL30UD02-E is ideal for global deployment across diverse commercial, laboratory, and industrial installations.

Provides dual outputs of 15V DC for multi-channel usage in embedded systems, control modules, and industrial electronics. 30W maximum power output supports a variety of devices such as sensors, control circuits, and instrumentation.

PCB mount configuration enables easy integration into boards and systems for space-efficient design. Tested and compliant with a range of international standards including EN 61000 and UL 60950-1, ensuring safety and electromagnetic compatibility.

Offers a broad operating temperature window, from -20°C to 70°C, making it suitable for both laboratory and industrial environments. Lightweight at 155g, supports applications where size and weight are constraints, such as portable instruments and modular control panels.

The XP Power ECL Series provides advanced AC-DC power supplies with single, dual, and triple output configurations, supporting 5W to 30W power ranges. Designed for demanding applications in automation, instrumentation, process control, and manufacturing equipment, these supplies offer peak load capability and up to 84% efficiency.

Additional technical details include a minimum input voltage of 85V AC, maximum input voltage of 264V AC, a maximum output voltage of 15V DC, and a rated output current of 1A. EMC compliance and hazardous area safety features are embedded.

Typical industrial use cases for the ECL30UD02-E include powering PLC modules, embedded controllers, automation relays, and monitoring equipment in factories, laboratories, and commercial installations.

For buyers seeking compact, reliable, and efficient PCB-mount power solutions, the XP Power ECL30UD02-E offers proven performance and safety certifications. Explore more Switching Power Supplies and XP Power products in the EnvMart electronic components category.
