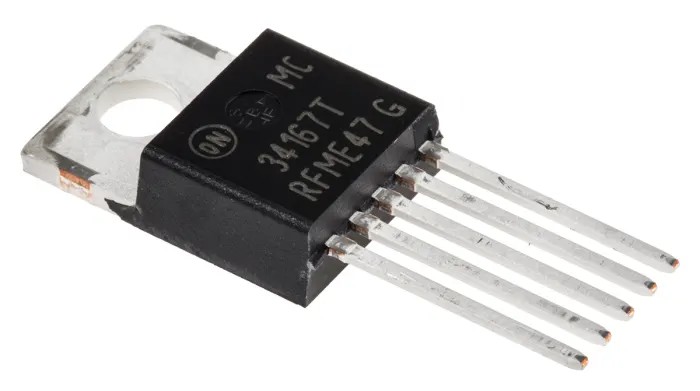

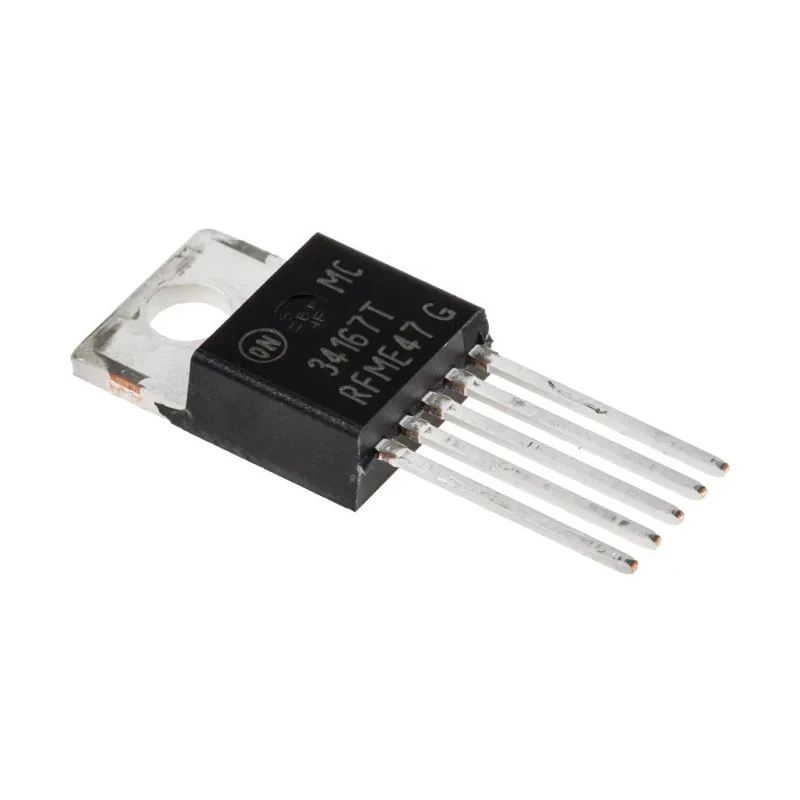

onsemi 1-Channel Buck Boost Switching Regulator 5 A -2 V to 40 V 79 kHz TO-220 5-Pin MC34167TG

Free Delivery in India | Lowest Global Shipping Charges

onsemi 1-Channel Buck Boost Switching Regulator 5 A -2 V to 40 V 79 kHz TO-220 5-Pin MC34167TG

Name: onsemi 1-Channel Buck Boost Switching Regulator 5 A -2 V to 40 V 79 kHz TO-220 5-Pin MC34167TG
Brand: onsemi
SKU: 138662
Price: 3.94 USD
Availability: InStock



Category Voltage Regulators Brand onsemi Condition New

Specifications

Country of Origin	India
Brand	onsemi
Height	9.27mm
Length	10.54mm
Model	MC34167TG
Width	4.57mm
Mount Type	Through Hole
Output type	Fixed
Series	MC34167
Power Rating	125W
Output Current	5A
Maximum Operating Temperature	70°C
Package Type	TO-220
Load Regulation	1/4/30 mV
Minimum Operating Temperature	0°C
Polarity	Inverting
Regulator Type	Buck Boost Switching
Switching Frequency	79kHz
Number of outputs	1
Maximum Input Voltage	40V
Output Voltage	-2, 40V
Line Regulation	4/10/15 mV
Minimum Input Voltage	7.5V
Pin Count	5

Key Features

Operates at a switching frequency of 79 kHz for optimized power conversion.
Features through-hole mount type with TO-220 5-pin package for easy integration.
Provides fixed output voltage and inverting polarity for specific power applications.
Supports output current of 5 A and power rating of 125 W for demanding electronic circuits.
Compact size with dimensions 10.54 mm length, 9.27 mm height, and 4.57 mm width for space-saving designs.
Ensures stable operation with line regulation between 4 to 15 mV and load regulation between 1 to 30 mV.
Suitable for operation within temperature range of 0°C to 70°C for industrial and commercial use.
Compatible with input voltage range from 7.5 V minimum up to 40 V maximum.

Product Description

onsemi MC34167TG is a highly efficient 1-channel buck boost switching regulator designed to provide flexible power management solutions in electronic systems. Operating within an input voltage range of 7.5 V to 40 V, it offers a fixed output voltage ranging from -2 V to 40 V, making it suitable for step-up and step-down voltage regulation applications.

This regulator features an inverting polarity and through-hole mount style with a TO-220 5-pin package, facilitating easy integration into printed circuit boards. The MC34167TG operates at a switching frequency of 79 kHz, enabling efficient power conversion with minimal signal noise.

Delivering an output current of 5 A and a power rating of up to 125 W, this device supports demanding electronic loads while maintaining excellent line and load regulation (line regulation: 4/10/15 mV; load regulation: 1/4/30 mV). Its compact dimensions (length:10.54 mm, height:9.27 mm, width:4.57 mm) allow use in space-constrained designs.

This product operates optimally within an ambient temperature range of 0°C to 70°C, suitable for various industrial and commercial applications including power management in laboratory equipment, manufacturing devices, and general electronic component environments.

Operates at a switching frequency of 79 kHz for efficient power conversion. Compact TO-220 5-pin through-hole package simplifies installation. Fixed output voltage with inverting polarity supports versatile circuit designs.

Robust 5 A output current and 125 W power rating for high-performance applications. Stable line and load regulation for reliable voltage output. Input voltage range from 7.5 V to 40 V accommodates diverse power sources. Operating temperature range from 0°C to 70°C ensures broad usability.

Designed without automotive standard certifications, focusing on general electronic use. Ideal for industrial, laboratory, and manufacturing power management systems. Compact size facilitates integration in tightly packed electronic assemblies.

This buck boost switching regulator by onsemi represents a reliable component choice for engineers looking to improve power efficiency and stability in various electronic applications. Explore more Voltage Regulators and power management ICs on EnvMart to find compatible solutions tailored to your industrial requirements.
