AAVID THERMALLOY Heatsink for Discrete Semiconductor Packages 25.4 mm x 41.91 mm x 25.4 mm Black Anodised 5.6°C/W 6396BG

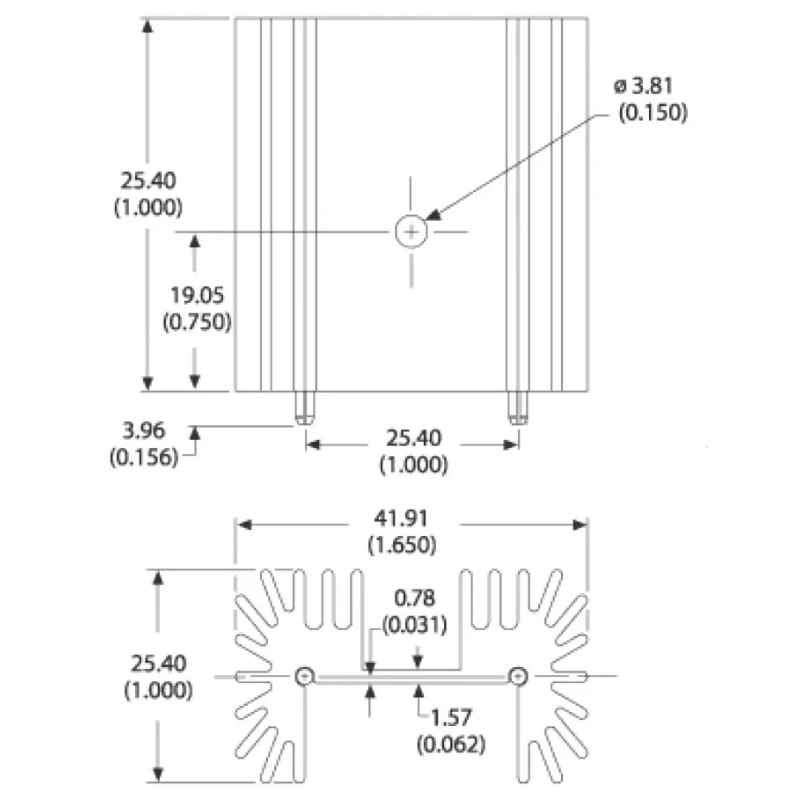

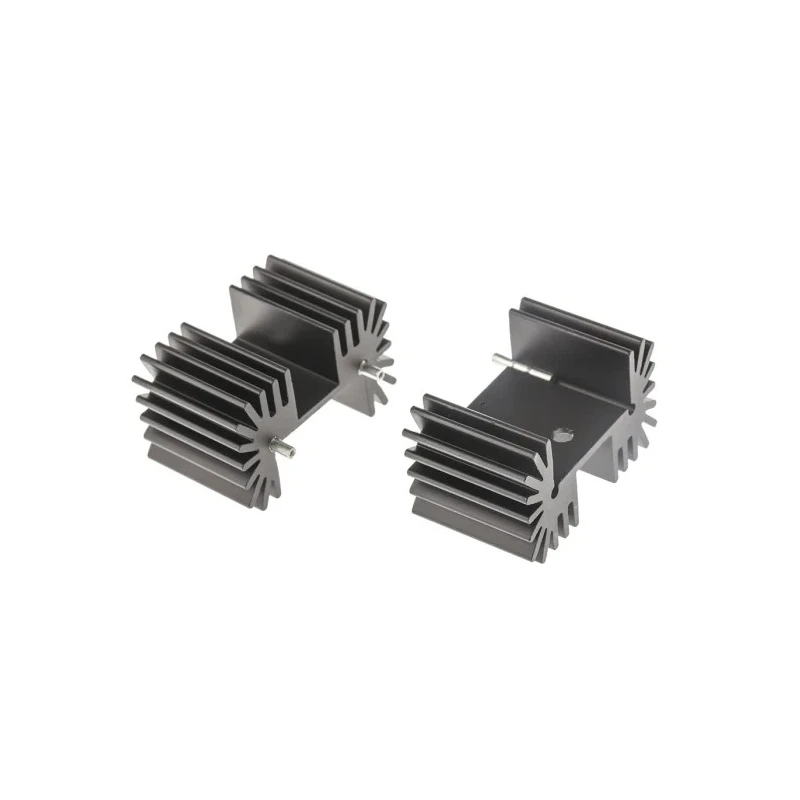

AAVID THERMALLOY 6396BG Heatsink is a high-power cooling solution designed specifically for Discrete Semiconductor packages such as TO-218, TO-220, and TO-247. It measures 25.4 mm in length, 41.91 mm in width, and 25.4 mm in height, providing a thermal resistance of 5.6°C/W. The heatsink is constructed from black anodised aluminium, which offers excellent heat dissipation and corrosion resistance.

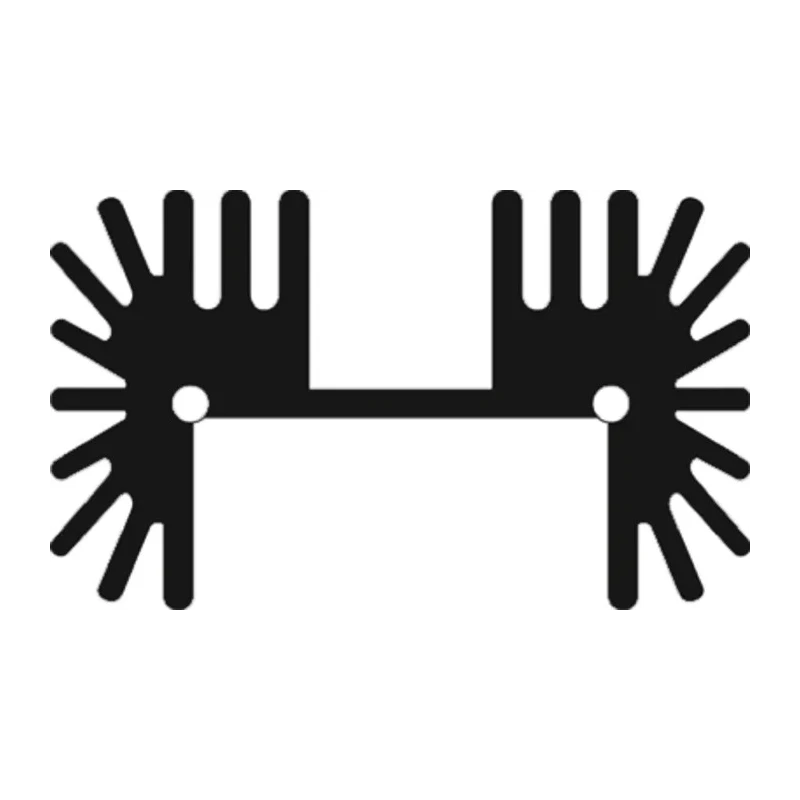

This extruded heatsink features large radial fins that maximize surface area and promote efficient heat transfer, making it suitable for high-power electronic components that generate significant heat during operation. The fastening method utilizes shoulder pins and soldering to ensure a stable and reliable attachment to the semiconductor device.

Application areas include industrial electronics, power electronics, and thermal management in semiconductor circuits, where maintaining safe operating temperatures is critical for device longevity and performance. The heatsink complies with RoHS standards, ensuring it meets environmental safety regulations.

Its robust design and compact dimensions make it an essential component in advanced thermal management systems used in industrial, laboratory, and manufacturing environments. The heatsink is made of anodised aluminium for enhanced durability and heat dissipation.

Compatible with widely used semiconductor package types: TO-218, TO-220, and TO-247. Fastening by shoulder pins and solder ensures secure mounting. Designed with large radial fins for high thermal efficiency. RoHS compliant, supporting environmental sustainability.

Ideal for industrial and electronic applications requiring effective heat management. Explore more heatsink options and thermal management components on EnvMart for your electronic cooling needs.
