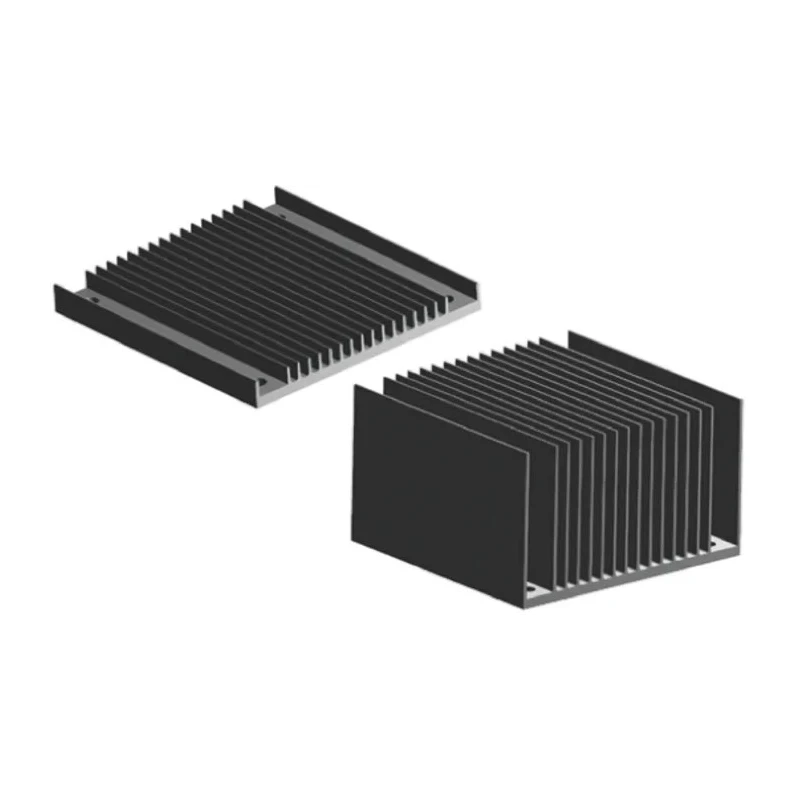

AAVID THERMALLOY Heatsink for 1/2 Brick DC/DC Converter 57.91mm x 60.96mm x 6.1mm 0.6°C/W 241202B92200G
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.29mm |
| Brand | AAVID THERMALLOY |
| Colour | Black |
| Height | 6.1mm |
| Length | 57.91mm |
| Model | 241202B92200G |
| Width | 60.96mm |
| Thermal Resistance | 0.6°C/W |
| For Use With | 1/2 Brick DC/DC Converter |
| Standards/Approvals | RoHS Compliant |
| Fastening | Screw |
| Compatible Package Type | Half Brick |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 712-4134 Brand: [AAVID THERMALLOY](https://in.rsdelivers.com/brands/aavid-thermalloy)Manufacturers Part No.: 241202B92200G |
Key Features
- This heatsink measures 57.91mm in length, 60.96mm in width, and 6.1mm in height.
- It provides a thermal resistance of 0.6°C per watt to ensure effective heat dissipation.
- The black heatsink includes a 2.29mm diameter hole pattern for screw fastening compatibility.
- High fin density maximizes surface area to enhance heat transfer in a compact space.
- Thin fin geometry optimizes system airflow, reducing the need for costly fans.
- Compatibility with half brick DC/DC converter packages from well-known manufacturers such as Delta, Emerson, and Tyco.
- Lengthwise and crosswise fin orientations available in three fin heights for precise application matching.
- Optional hardware kits and high-performance QPad3™ interface pads expedite installation and improve thermal interface quality.
Product Description
AAVID THERMALLOY 241202B92200G heatsink is specifically engineered for use with 1/2 Brick DC/DC converters. It offers a compact design with dimensions of 57.91mm length, 60.96mm width, and 6.1mm height, making it suitable for constrained electronic assemblies requiring effective thermal management.
The heatsink features a thermal resistance rating of 0.6°C/W, enabling efficient heat dissipation to protect sensitive DC/DC converter components from overheating. Its black finish and 2.29mm diameter mounting holes facilitate secure attachment via screws, ensuring a stable installation.
High fin density enhances the surface area, promoting improved heat transfer within limited spatial envelopes. Additionally, the thin fin geometry improves system airflow dynamics, which contributes to reduced fan overheads and quieter operation.
The hole pattern is designed with compatibility for half brick DC/DC converter packages from established manufacturers including Delta, Emerson, and Tyco, enhancing versatility and ease of integration into existing systems.
Both lengthwise and crosswise fin orientations are offered in three different fin heights, allowing engineers to select the perfect configuration for optimized cooling performance aligned with specific application needs.
The heatsink also supports the use of a high-performance QPad3™ thermal interface pad, which saves installation time and improves thermal conductivity. An optional hardware kit is available, offering a complete solution under one part number for streamlined procurement and assembly processes.
This product is RoHS compliant, ensuring it meets environmental and safety standards applicable to electronic components.
Its primary applications include industrial electronics cooling, power electronics, laboratory instrumentation, and HVAC systems requiring reliable DC/DC converter thermal management solutions.
Available through EnvMart, this heatsink caters to professionals seeking durable and high-efficiency thermal components for advanced electronic design projects.
Explore more products in our Electrical, Automation & Cables category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The heatsink measures 57.91mm in length, 60.96mm in width, and 6.1mm in height.
It has a thermal resistance rating of 0.6°C per watt, allowing for effective heat dissipation.
It features a screw fastening method with a 2.29mm diameter hole pattern for secure attachment.
It is suitable for applications in industrial electronics cooling, power electronics, laboratory instrumentation, and HVAC systems requiring reliable thermal management.
The heatsink has a black finish, but specific material details are not provided in the product context.
Yes, this heatsink is RoHS compliant, meeting environmental and safety standards for electronic components.
Yes, an optional hardware kit is available, along with high-performance QPad3™ thermal interface pads to enhance installation and thermal conductivity.
The heatsink is manufactured in India.
The weight of this heatsink is not specified in the product context.
The thin fin geometry enhances system airflow dynamics, which contributes to reduced fan overheads and quieter operation.
