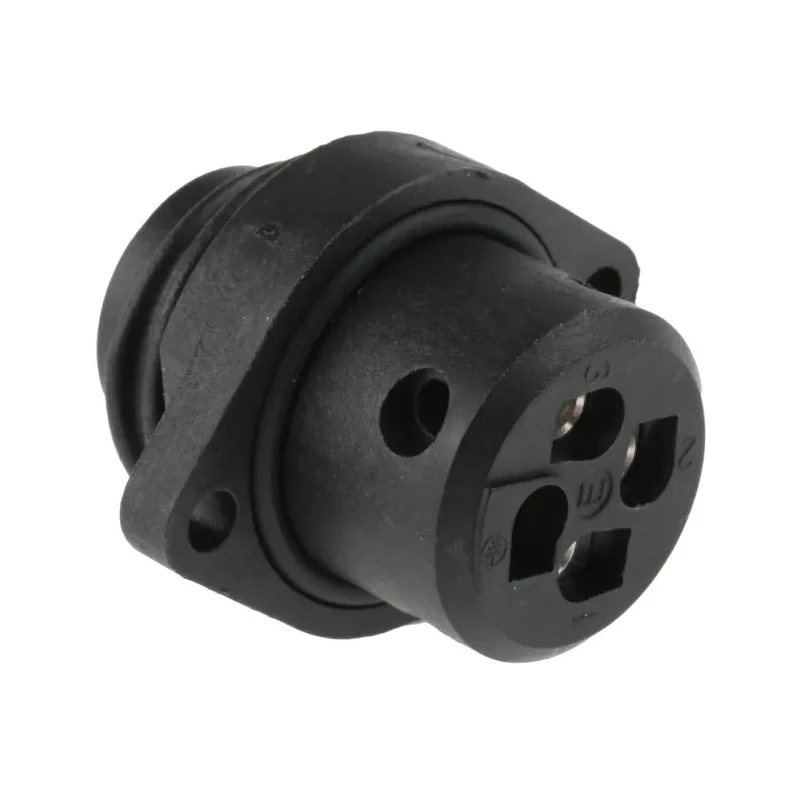

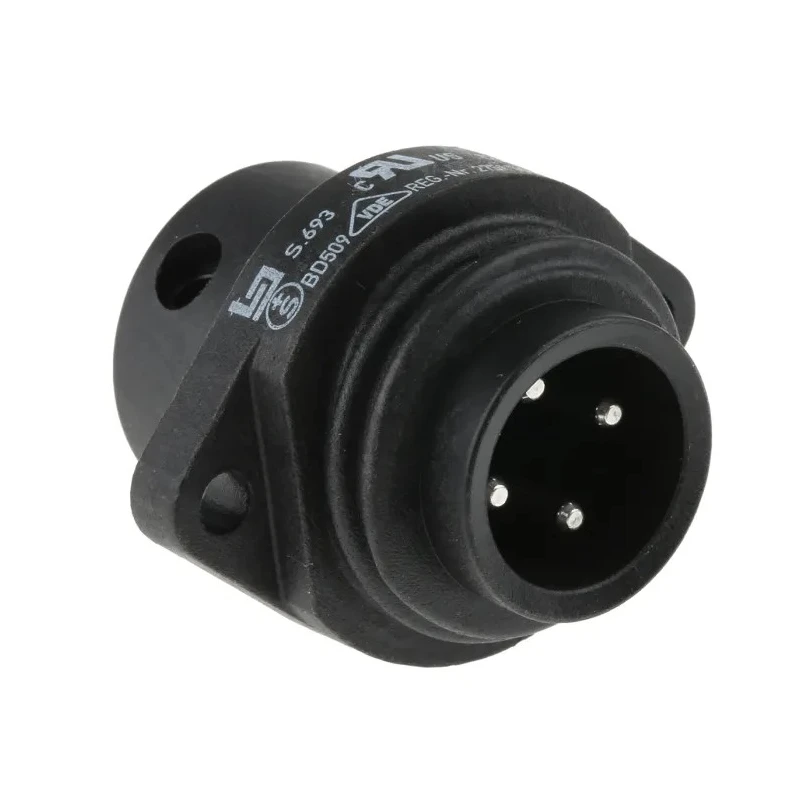

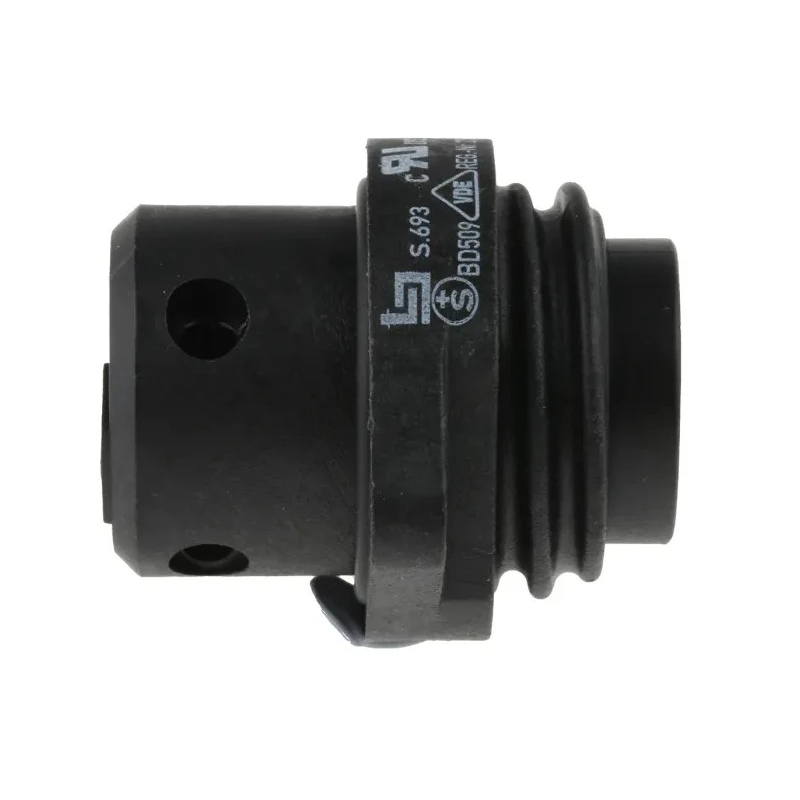

binder Power Connector 4 Contacts Panel Mount Plug Male IP67 693 Series 09-4223-00-04
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 400V |
| Brand | binder |
| Orientation | Straight |
| Current | 16A |
| IP Rating | IP67 |
| Mount Type | Panel Mount |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | 693 |
| Termination Type | Screw Clamp |
| Maximum Operating Temperature | 100°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 3+PE |
| Contact Plating | Silver |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shell Size | 21.5 mm |
| Plug/Socket | Plug |
Key Features
- This power connector features 4 contacts arranged in a 3+PE pole format.
- It has a robust panel mount installation with screw clamp termination for secure electrical connection.
- The contact material is brass plated with silver for durability and corrosion resistance.
- The connector housing is thermoplastic providing excellent dimensional stability and chemical resistance.
- Its operating voltage is rated up to 400V and current up to 16A with IP67 waterproof rating when mated.
- Suitable for industrial, instrumentation, medical, machine tools and robotics applications.
- Temperature range spans from -40°C to 100°C for versatile environment tolerance.
- Designed to handle up to 500 mating cycles ensuring longevity and reliability.
Product Description
binder 09-4223-00-04 power connector 4 contacts panel mount plug male IP67 693 Series is designed for industrial power connectivity demanding robust performance and environmental protection.
This connector features a 4-contact configuration with a 3+PE pole format to meet high power requirements while maintaining safety standards. The panel mount type with screw clamp termination ensures stable and secure electrical connections, making it ideal for installation in instrumentation, medical devices, machine tools, and robotics.
The connector housing is manufactured from durable thermoplastic (PBT) material known for its dimensional stability, high strength, and resistance to chemicals. Contacts are brass with silver plating to enhance wear resistance and corrosion protection, providing a reliable electrical interface even in demanding conditions.
Rated for a maximum voltage of 400V and a current of 16A, it complies with VDE standard No. 2751 and offers an IP67 ingress protection rating to safeguard against dust and water when mated. The operating temperature range from -40°C to 100°C allows use in diverse and harsh industrial environments.
The connector supports up to 500 mating cycles, emphasizing durability and long service life. Its straight orientation helps prevent cable strain, facilitating easier installation and maintenance.
4 contacts with 3+PE pole format for power and protective earth. Panel mount with screw clamp termination type for secure connections. Brass contact material with silver plating for corrosion resistance. Thermoplastic housing for chemical and mechanical durability.
400V voltage and 16A current rating to suit industrial power needs. IP67 rated waterproof design for harsh environmental use. Operating temperature range from -40°C to 100°C. Up to 500 mating cycles for prolonged reliability.
Straight orientation to reduce cable strain in installation.
This binder power connector series is essential for industrial applications requiring reliable, waterproof, and high-performance circular power connectors. Explore more Industrial Circular Connectors and power connector solutions in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector is rated for a maximum voltage of 400V and a current of 16A.
It has an IP67 ingress protection rating, making it waterproof and dust-tight when mated.
The contacts are made of brass with silver plating for corrosion resistance, and the housing is constructed from thermoplastic material.
The operating temperature range spans from -40°C to 100°C, allowing it to function in diverse environments.
This connector features 4 contacts arranged in a 3+PE pole format.
It utilizes a screw clamp termination type for secure and stable electrical connections.
The connector has a straight orientation, which helps to reduce cable strain during installation.
It is designed to handle up to 500 mating cycles, emphasizing its longevity and reliability.
It is suitable for industrial, instrumentation, medical, machine tools, and robotics applications.
The connector is manufactured in Germany.
The shell size of this connector is 21.5 mm.
This model is part of the binder 693 Series.
