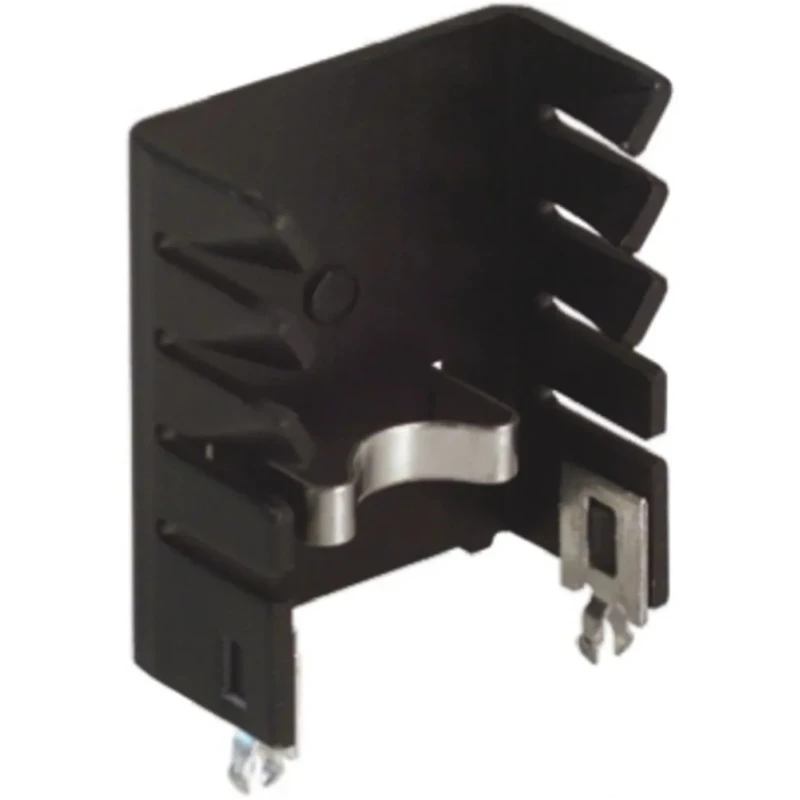

AAVID THERMALLOY Heatsink for Discrete Semiconductor Packages Black Anodised Aluminium 13.4K/W Thermal 534202B02853G
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.05mm |
| Brand | AAVID THERMALLOY |
| Material | Aluminium |
| Colour | Black |
| Height | 12.7mm |
| Length | 29.97mm |
| Model | 534202B02853G |
| Finish | Black Anodised |
| Width | 25.4mm |
| Thermal Resistance | 13.4K/W |
| For Use With | Discrete Semiconductor Packages |
| Standards/Approvals | RoHS |
| Fastening | Solder |
| Compatible Package Type | TO-220 |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 712-4324Brand: AAVID THERMALLOYManufacturers Part No.: 534202B02853G |
Key Features
- Constructed from black anodised aluminium for durability and effective heat dissipation.
- Features a TO-220 compatible channel style design with Shur-Lock™ solderable mounting tabs.
- Twisted fins enhance cooling efficiency by increasing airflow turbulence.
- Includes a 3.05mm diameter solder fastening for secure attachment.
- Complies with RoHS standards, ensuring environmental safety.
- Black anodised finish provides corrosion resistance and aesthetic appeal.
Product Description

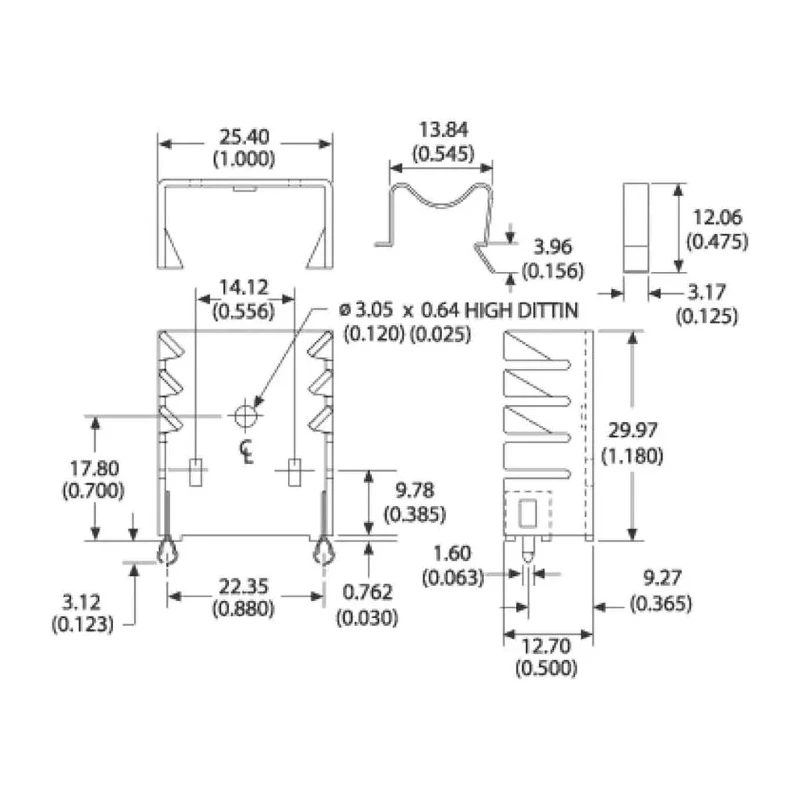

Aavid Thermalloy 534202B02853G heatsink is engineered for cooling discrete semiconductor packages, featuring a compact form factor measuring 29.97mm in length, 25.4mm in width, and 12.7mm in height. Designed for efficient thermal management, it offers a thermal resistance of 13.4K/W to maintain optimal device temperatures during operation.
This heatsink is manufactured from durable aluminium with a black anodised finish, providing excellent corrosion resistance and mechanical strength. The channel style heatsink includes a dittin notch to precisely locate the semiconductor device, ensuring stable mounting and thermal contact.
Using Shur-Lock™ solderable mounting tabs with a 3.05mm diameter fastening allows reliable and permanent attachment to the semiconductor package. The design features twisted fins that increase cooling efficiency by promoting turbulent airflow, enhancing heat dissipation from the device.
Compatible with TO-220 package types, this heatsink is suitable for various industrial and electronics applications, including power regulation, industrial automation, HVAC controls, and electronics manufacturing. Its RoHS compliance guarantees adherence to environmental protection protocols.
Industrial and laboratory users will find this heatsink beneficial for thermal management in Discrete Semiconductors, increasing longevity and performance reliability of their electronic assemblies.
Constructed from black anodised aluminium for durable and efficient heat dissipation. TO-220 channel style design with Shur-Lock™ solderable tabs for secure fastening. Twisted fins to enhance cooling efficiency by improving air turbulence.
3.05mm solder fastening diameter for reliable mounting. RoHS compliant, ensuring environmental safety standards. Compact dimensions: 29.97mm length, 25.4mm width, and 12.7mm height. Explore our comprehensive selection of heatsinks and electronics cooling components at EnvMart for your industrial and commercial thermal management needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The thermal resistance of this heatsink is 13.4K/W, which helps maintain optimal device temperatures during operation.
This model measures 29.97mm in length, 25.4mm in width, and 12.7mm in height.
It is constructed from aluminium with a black anodised finish, providing excellent corrosion resistance.
This heatsink is compatible with TO-220 package types, making it suitable for various discrete semiconductor applications.
It features Shur-Lock™ solderable mounting tabs with a 3.05mm diameter for secure attachment to the semiconductor package.
The heatsink includes twisted fins that promote turbulent airflow, enhancing heat dissipation from the device.
Yes, it complies with RoHS standards, ensuring adherence to environmental protection protocols.
It is suitable for applications in power regulation, industrial automation, HVAC controls, and electronics manufacturing.
The heatsink has a black anodised finish, which provides both corrosion resistance and an aesthetic appeal.
The country of origin for this heatsink is India.
The dittin notch is designed to precisely locate the semiconductor device, ensuring stable mounting and thermal contact.
The weight of this heatsink is not specified in the available data.
