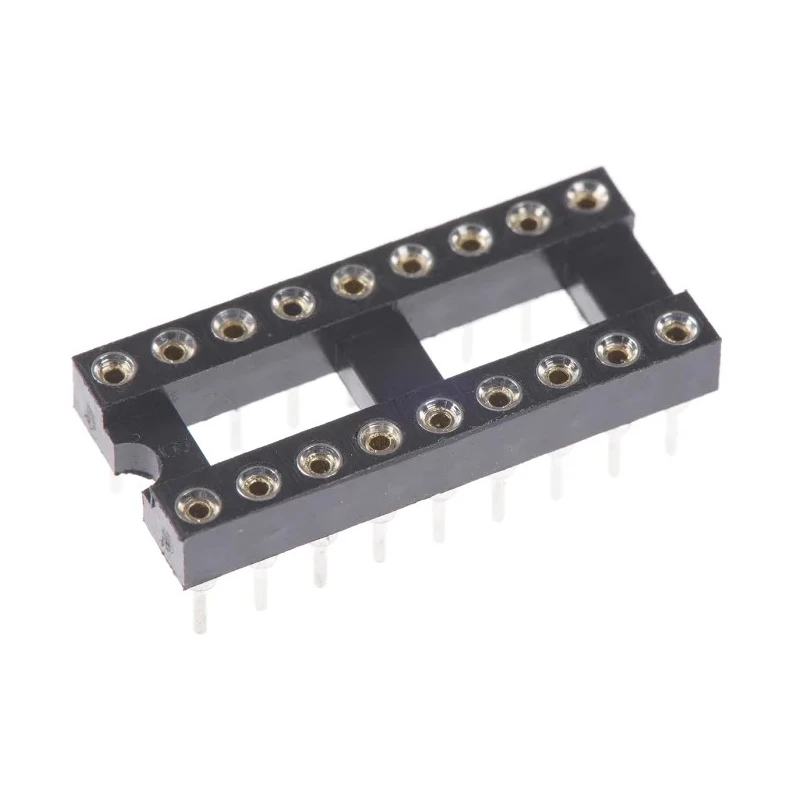

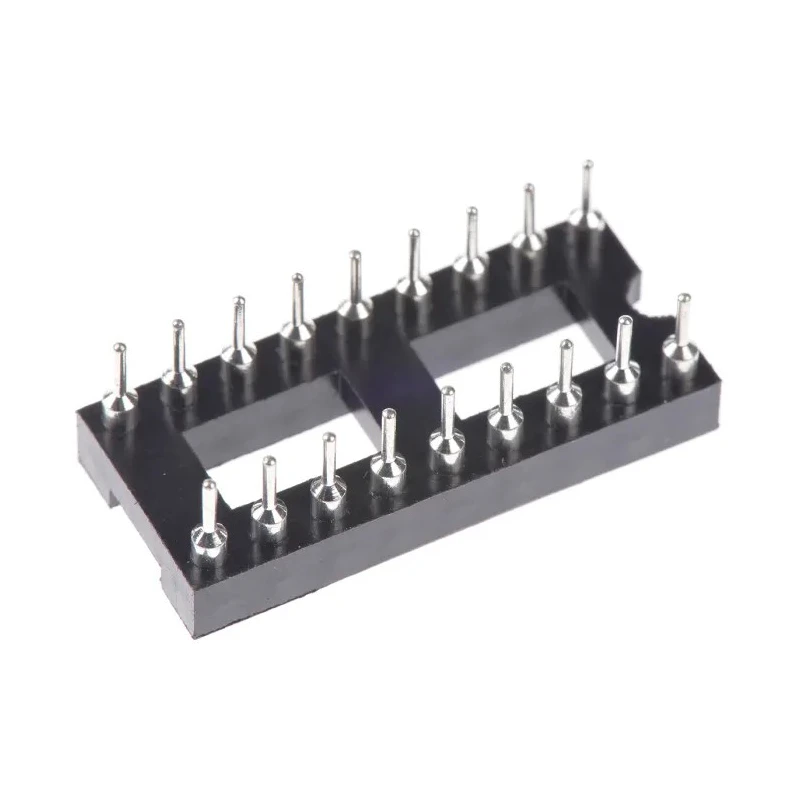

ASSMANN WSW 2.54 mm Pitch Vertical 18 Way Through Hole Turned Pin Open Frame DIL Socket 3A AR 18 HZL-TT

ASSMANN WSW AR 18 HZL-TT is a high-quality 18 way vertical through hole DIL socket designed for printed circuit board (PCB) mounting with a 2.54 mm pitch. This open frame socket features turned pins that provide reliable mechanical stability and optimal electrical contact, supporting a current rating of 3A and voltage up to 100V AC. Its vertical orientation and open frame design are ideal for use with standard DIP integrated circuits in electronic and industrial applications.

The contact pins are made from durable brass and phosphor bronze materials with tin plating, ensuring excellent conductivity and corrosion resistance. The housing utilizes black Polybutylene Terephthalate (PBT) resin with a UL94V-0 flammability rating to enhance safety and mechanical strength during operation.

Operating temperature range from -40°C to 105°C allows this socket to be used in diverse environmental conditions, including industrial electronics, telecommunications, laboratory instrumentation, and automation controls. Its compact form factor with length 22.86 mm, width 10.16 mm, depth 3 mm and 7.62 mm row width makes it compatible with many PCB layouts that require precise and secure DIP socket mounting.

This product is ideally suited for assembly automation lines where through-hole mounting is preferred. It is supplied in tubes for ease of handling during insertion and soldering. The ASSMANN WSW AR 18 HZL-TT socket is made in China and meets reliable manufacturing standards though has no specific approvals listed.

Features 18 contacts with 2.54 mm pitch for precise connection. Through hole mount type allows secure PCB installation. Turned pin design ensures robust electrical and mechanical connection. Open frame and vertical orientation for standard DIP package compatibility.

Made with brass and phosphor bronze contact material for durability. Contact plating is tin to offer effective conductivity and corrosion resistance. Housing is constructed from Polybutylene Terephthalate with UL94V-0 rating for safety.

Supports voltage rating of 100V AC and current up to 3A. Operates reliably in temperatures from -40°C up to 105°C. Compact dimensions include 22.86 mm length, 10.16 mm width, 3 mm depth, and 7.62 mm row width. Explore more high-quality DIL Sockets and electronic connectors at EnvMart for your industrial, laboratory, and commercial electronic assembly needs.
