onsemi Hex Schmitt Trigger Input Inverter 6-Element 14-Pin SOIC 2 to 6 V MC74HC14ADG

Free Delivery in India | Lowest Global Shipping Charges

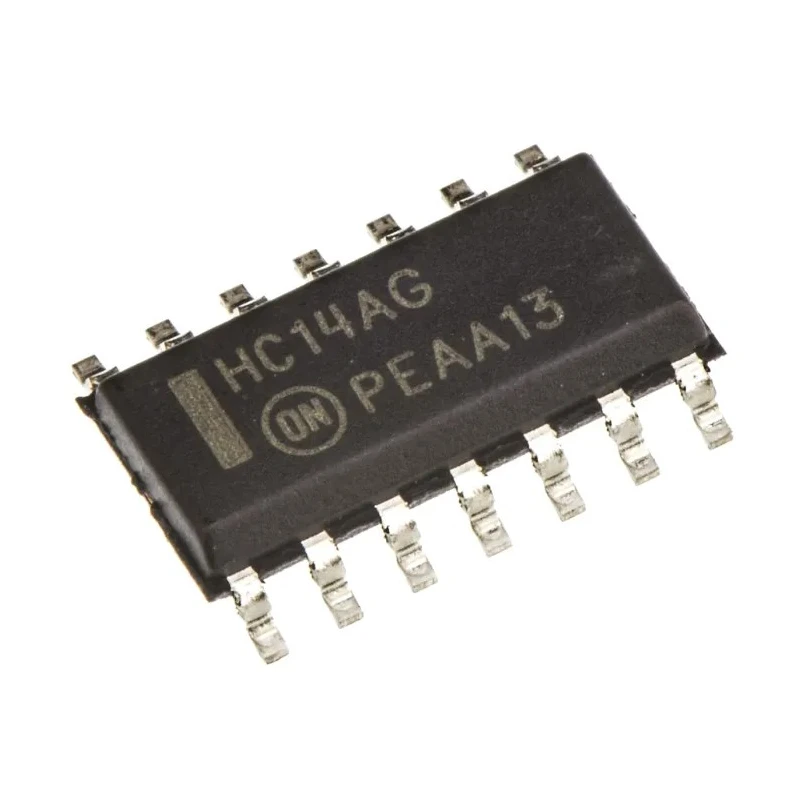

onsemi Hex Schmitt Trigger Input Inverter 6-Element 14-Pin SOIC 2 to 6 V MC74HC14ADG

Name: onsemi Hex Schmitt Trigger Input Inverter 6-Element 14-Pin SOIC 2 to 6 V MC74HC14ADG
Brand: onsemi
SKU: 138336
Price: 0.3 USD
Availability: InStock



Category Inverters ICs Brand onsemi Condition New

Specifications

Country of Origin	Czech Republic
Brand	onsemi
Height	1.5mm
Length	8.75mm
Model	MC74HC14ADG
Width	4mm
Mount Type	Surface
Compatibility	Input CMOS, Output CMOS
Output type	LSTTL
Series	MC74HC14A
Input Type	Schmitt Trigger
Maximum Operating Temperature	125°C
Package Type	SOIC
Minimum Operating Temperature	-55°C
Operating Voltage	2 to 6 V
Pin Count	14
Number of Elements per Chip	6
Automotive Standard	AEC-Q100
Maximum Supply Voltage	6V
Logic Family	HC
Logic Function	Inverter
Minimum Supply Voltage	2V
Maximum High Level Output Current	-5.2mA
Maximum Propagation Delay Time @ CL	110ns
Maximum Low Level Output Current	5.2mA
onsemi MC74HC14ADG Hex Schmitt Trigger Inverter, 14-Pin SOICBrand	onsemi
ON Semiconductor MC74HC14ADG, Hex Schmitt Trigger Inverter, 14-Pin SOICBrand	ON Semiconductor

Key Features

This inverter IC contains six independent Schmitt trigger input elements providing signal conditioning.
Operating voltage range is from 2 V minimum up to 6 V maximum for flexible application deployment.
Input type is Schmitt trigger for improved noise immunity and clean switching.
Pin count totals 14 in a surface mount SOIC package for compact PCB design.
Maximum propagation delay time is 110 ns at rated load capacitance.
Output type is LSTTL compatible, ensuring seamless digital system integration.
Rated operating temperature range spans from -55°C to 125°C, suitable for harsh industrial environments.
Compliance with automotive standard AEC-Q100 highlights reliability for automotive applications.

Product Description

onsemi MC74HC14ADG is a high-speed CMOS logic inverter integrated circuit featuring six Schmitt trigger input elements, housed in a 14-pin SOIC surface mount package. It operates reliably within a broad supply voltage range of 2 to 6 volts, making it adaptable for various electronic designs requiring voltage flexibility.

The Schmitt trigger inputs provide enhanced noise immunity and signal stability, making the MC74HC14ADG ideal for signal conditioning applications in complex logic circuits. Output compatibility with LSTTL logic families enables seamless interfacing with a range of digital systems.

This inverter IC supports operating temperatures from -55°C to 125°C, demonstrating robustness suitable for industrial, automotive, and harsh environment applications. Conformance to the AEC-Q100 automotive standard further certifies its reliability and quality for automotive electronic systems.

Physical package dimensions measure 8.75 mm in length, 4 mm in width, and 1.5 mm in height, designed to fit compact PCB layouts. Its 14-pin SOIC package type supports surface mount technology for modern electronics manufacturing.

This device contains six independent inverter elements with Schmitt trigger inputs. The operating voltage range accommodates from 2 V minimum up to 6 V maximum. Output current ratings support up to ±5.2 mA ensuring adequate driving capability.

The maximum propagation delay time of 110 ns supports high-speed logic switching. Compatibility with CMOS inputs and outputs provides versatile integration options. Automotive standard AEC-Q100 certification ensures reliability in vehicular electronics.

Applications for the MC74HC14ADG inverter include industrial automation, logic signal buffering, automotive electronic controls, and electronic test equipment. Its durable design and comprehensive features facilitate its use in laboratories, manufacturing systems, and embedded control devices.

Choose onsemi MC74HC14ADG for dependable inverter logic solutions requiring Schmitt trigger inputs, robust electrical characteristics, and automotive-grade quality. Explore more semiconductor and logic IC products for your industrial and electronics project needs at EnvMart.

Explore more products in our Inverters ICs category.
