onsemi Surface Mount Shift Register 74HC Family SOIC 16-Pin MM74HC595MX

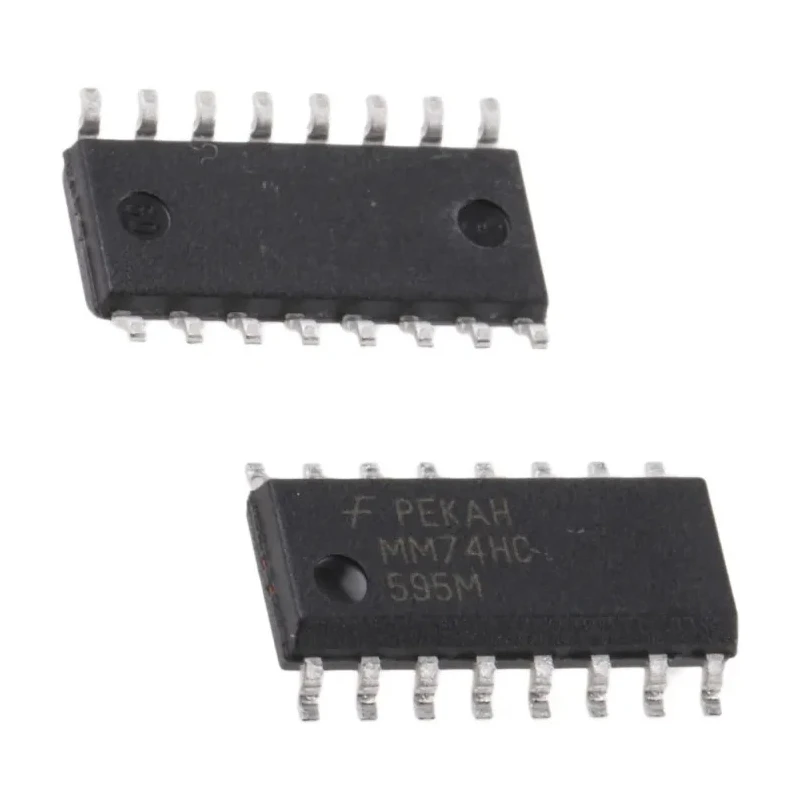

onsemi MM74HC595MX is a surface mount shift register IC from the 74HC logic family, housed in a SOIC 16-pin package. This high-speed CMOS logic device operates within a voltage range of 2 to 6 volts, making it suitable for a wide variety of digital electronics applications where precise and efficient shifting of data is required.

The MM74HC595MX provides a single shift register element with a positive edge trigger, enabling accurate timing control in sequential logic circuits. The compact SOIC package facilitates surface mounting on printed circuit boards, supporting high-density component layouts.

Key features include a maximum operating temperature of 85°C, compatibility with CMOS logic levels for both inputs and outputs, and a physical footprint of 10mm in length, 4mm in width, and 1.75mm in height. Its design makes it an optimal choice for use in semiconductor-based logic IC assemblies, counter IC implementations, and other electronic component applications.

This device is compliant with the 74HC family specifications, ensuring reliable operation consistent with industry standards. The MM74HC595MX does not carry specific regulatory approvals or automotive standards but is engineered for robust performance in commercial and industrial environments.

Ideal for use in electronic manufacturing, research and development, and numerous industrial control systems, the onsemi MM74HC595MX shift register enhances production efficiency with its standard surface mount packaging and dependable logic design.

Operates at supply voltages between 2 and 6 V. Positive edge triggered for precise control. 16-pin SOIC package supporting surface mount technology. Single element Shift Register within the 74HC logic family. Maximum operating temperature of 85°C.

Input and output compatibility with CMOS logic levels. Compact physical dimensions ensure easy PCB integration. Widely used in digital electronics and semiconductor manufacturing. Explore more semiconductor and logic IC products from onsemi and related categories on EnvMart for reliable electronic component sourcing.
