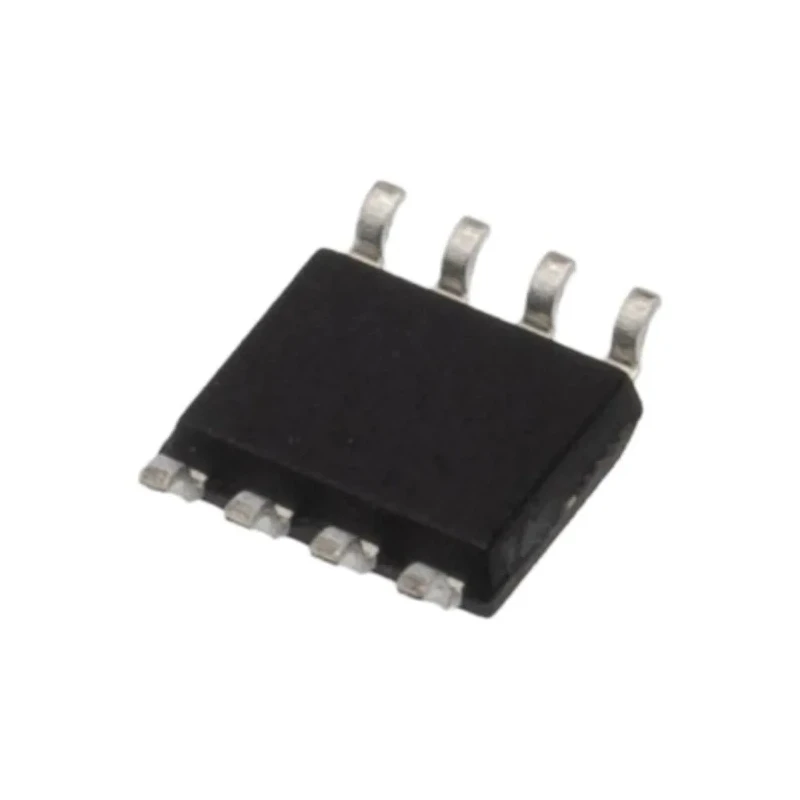

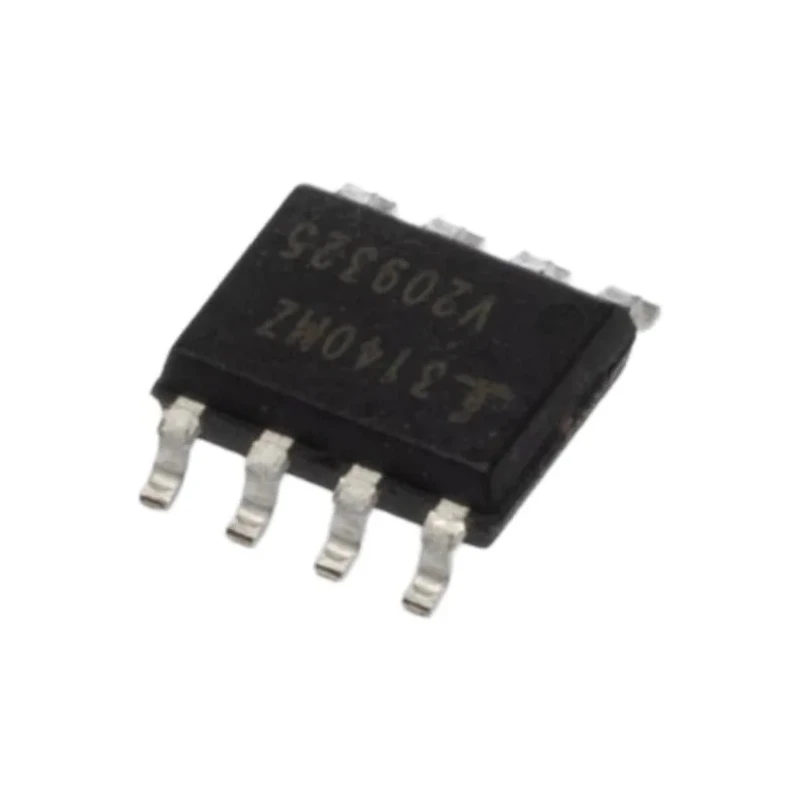

Renesas Electronics Operational Amplifier 3.7 MHz Gain Bandwidth Product, 8-Pin SOIC Surface Mount CA3140MZ

Renesas Electronics CA3140MZ Operational Amplifier is a high-performance integrated circuit featuring a 3.7 MHz Gain Bandwidth Product tailored for demanding amplification tasks. Packaged in an 8-Pin SOIC surface mount format, it is designed to facilitate compact and efficient PCB layouts in electronics manufacturing.

This operational amplifier supports a wide supply voltage range from 5V up to 36V, enabling versatility across different circuit designs. Its slew rate of 7 V/μs ensures rapid output signal changes, making it suitable for high-speed applications requiring swift signal fidelity.

The device boasts exceptionally low input bias current (50 pA) and input offset current (20 pA), contributed by its MOSFET input stage that provides high input impedance and minimal current draw, enhancing overall operational accuracy. Input offset voltage is calibrated at a low 5 mV to maintain precise signal processing.

Operating reliably in harsh environments, the amplifier functions within a temperature range of -55°C to +125°C. It can handle output currents up to 10 mA, making it compatible with a variety of analog and mixed-signal circuit applications.

Typical uses include industrial instrumentation, signal conditioning, filtering, and analog computation in industrial, laboratory, manufacturing, and electronic product design sectors. The surface mount SOIC package facilitates automated placement and soldering, improving production efficiency in commercial electronics assembly.

The device offers a maximum supply voltage of 36V and a minimum of 5V. Features a 3.7 MHz gain bandwidth product ensuring wide frequency response. Ultra-low input bias and offset currents provide precise analogue signal amplification.

Robust operation over a wide temperature range supports harsh environments. Compact 8-Pin SOIC surface mount package suitable for automated assembly. Output current capability up to 10 mA for driving various circuit elements.

Ideal for applications in industrial, laboratory, HVAC, and manufacturing electronics. Utilizes BiMOS technology combining MOSFET input with bipolar output for performance. Explore the Electronics & Electricals category at EnvMart for a wide range of Operational Amplifiers and semiconductor solutions to meet your project or production needs.
