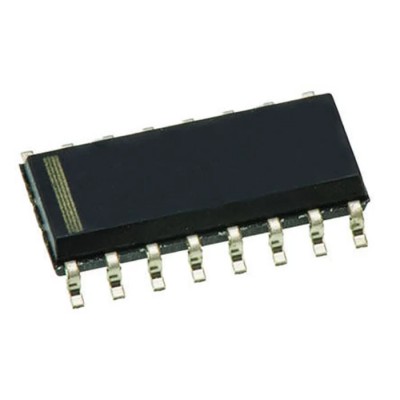

STMicroelectronics 4-Channel Line Transmitter Differential 16-Pin SOIC ST26C31BDR

Free Delivery in India | Lowest Global Shipping Charges

STMicroelectronics 4-Channel Line Transmitter Differential 16-Pin SOIC ST26C31BDR

Name: STMicroelectronics 4-Channel Line Transmitter Differential 16-Pin SOIC ST26C31BDR
Brand: STMicroelectronics
SKU: 137257
Price: 1.02 USD
Availability: InStock



Category Line Interface ICs Brand STMicroelectronics Condition New

Specifications

Country of Origin	India
Brand	STMicroelectronics
Height	1.75mm
Length	10mm
Model	ST26C31BDR
Width	4mm
Mount Type	Surface
Output type	Differential
Input Type	TTL
Maximum Operating Temperature	85°C
Package Type	SOIC
Minimum Operating Temperature	-40°C
IC Type	Line Driver
Number Of Channels	4
Pin Count	16
Maximum Supply Voltage	5.5V
Logic Family	CMOS/TTL
Logic Function	Line Driver
Minimum Supply Voltage	4.5V
Maximum High Level Output Current	-20mA
Maximum Propagation Delay Time @ CL	11ns
Supply Current	2mA
Maximum Low Level Output Current	20mA

Key Features

Operates within a voltage range of 4.5V to 5.5V supply voltage.
Implements CMOS/TTL logic family compatibility for seamless digital interfacing.
Supports TTL input type and differential output to ensure noise immunity.
Features a propagation delay time of 11 nanoseconds at a capacitive load.
Operates across a temperature range from -40°C to 85°C for versatile environmental use.
Designed with low supply current consumption of 2mA for efficient power usage.
Includes 16 pins in a SOIC surface mount package for compact PCB integration.
Maximum output currents are ±20mA ensuring robust drive capability.

Product Description

STMicroelectronics ST26C31BDR is a high-performance 4-channel line transmitter that provides differential line driving outputs in a compact 16-pin SOIC surface-mount package.

This device operates within a supply voltage range of 4.5V to 5.5V and is compatible with CMOS/TTL logic families, making it ideal for electronic systems requiring robust digital signal transmission with noise immunity.

The line transmitter supports TTL input and differential outputs, enhancing signal integrity across long communication lines. It features a maximum propagation delay time of 11 nanoseconds at a capacitive load, ensuring fast data transmission.

With an operating temperature range from -40°C to 85°C, this transmitter is suitable for various industrial and commercial environments. It consumes a low supply current of 2mA, which makes it efficient for power-sensitive applications.

The device accommodates 16 pins within a standard SOIC package for easy surface mounting on printed circuit boards, facilitating compact and reliable installations. Maximum output currents of ±20mA provide sufficient drive strength for RS-422 line driver applications.

Operates within a voltage range of 4.5V to 5.5V supply voltage. Compatible with CMOS/TTL logic family for broad digital interfacing. Supports TTL input and differential output for noise-resistant signaling. Maximum propagation delay time at capacitive load of 11 nanoseconds.

Wide operating temperature range from -40°C to 85°C. Low supply current consumption of 2mA. 16-pin SOIC surface mounting package ensures compact footprint. Maximum drive output current of ±20mA for reliable line driving.

This product is primarily suited for industrial electronics, telecommunications, data communication interfaces, and embedded systems where multiple line driving channels with differential output are required.

Environmentally robust and electrically efficient, the ST26C31BDR simplifies serial data transmission adhering to RS-422 standards. Explore more high-quality semiconductor and Line Interface ICs at EnvMart for your electronic design and industrial applications.
