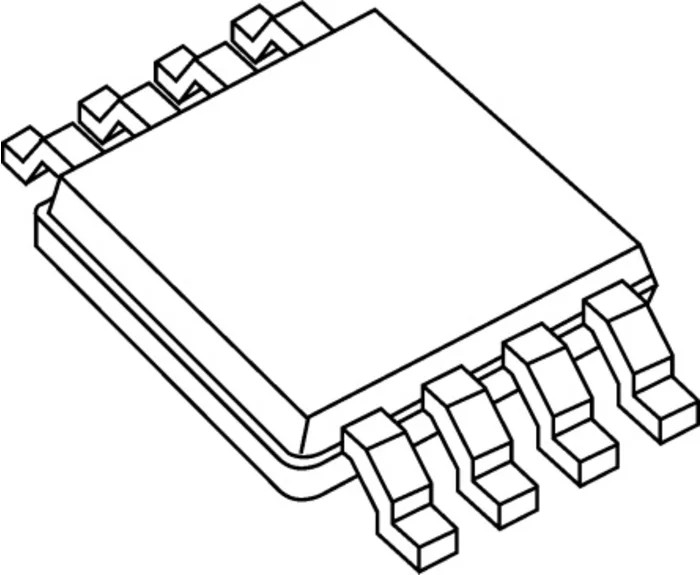

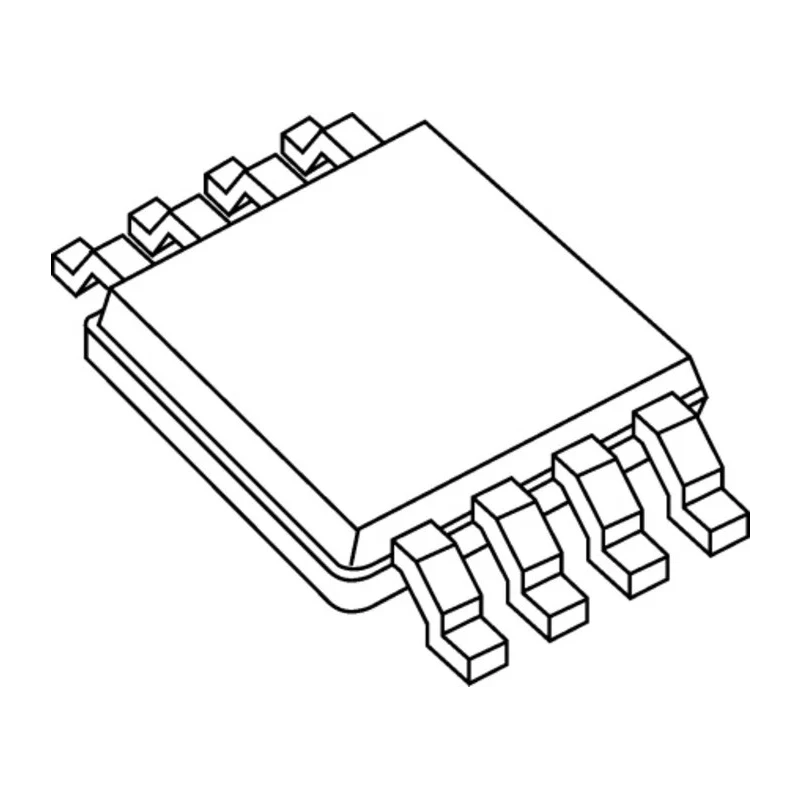

Renesas Electronics Line Transceiver, Inverting, 8-Pin MSOP, CMOS Bus Transceiver ISL3178EIUZ

Free Delivery in India | Lowest Global Shipping Charges

Renesas Electronics Line Transceiver, Inverting, 8-Pin MSOP, CMOS Bus Transceiver ISL3178EIUZ

Name: Renesas Electronics Line Transceiver, Inverting, 8-Pin MSOP, CMOS Bus Transceiver ISL3178EIUZ
Brand: Renesas Electronics
SKU: 138207
Price: 2.64 USD
Availability: InStock



Category Line Interface ICs Brand Renesas Electronics Condition New

Specifications

Country of Origin	India
Brand	Renesas Electronics
Height	1.75mm
Length	3.05mm
Model	ISL3178EIUZ
Width	4.9mm
Mount Type	Surface
Output type	Inverting
Series	ISL3178E
Input Type	Differential
Maximum Operating Temperature	85°C
Package Type	MSOP
Minimum Operating Temperature	-40°C
IC Type	Line Transceiver IC
Pin Count	8
Maximum Supply Voltage	3.6V
Logic Family	CMOS
Logic Function	Bus Transceiver
Minimum Supply Voltage	3V
Supply Current	800μA

Key Features

Operates with a minimum supply voltage of 3V and maximum of 3.6V.
Features differential input type ensuring reliable signal integrity.
Provides surface mount type package for easy PCB assembly.
Operates over a wide temperature range from -40°C to 85°C.
Compact dimensions with length 3.05mm, width 4.9mm, and height 1.75mm.
Low supply current of 800μA suitable for power-sensitive applications.
Part of the ISL3178E series for RS-485 line drivers and receivers.
Designed without automotive standards compliance.

Product Description

Renesas Electronics ISL3178EIUZ is a high-performance line transceiver designed for use in RS-485 communication applications. This device integrates inverting output typology and supports differential inputs, making it suitable for reliable data transmission over long twisted pair wiring. Packaged in an 8-pin MSOP surface mount, the transceiver provides a compact footprint ideal for advanced embedded and industrial controls.

Operating with a supply voltage range of 3.0V to 3.6V, the ISL3178EIUZ ensures efficient power consumption with a typical supply current of 800μA. The device performs in ambient temperatures ranging from -40°C to 85°C, facilitating robust operation across industrial and commercial environments.

The transceiver’s compact dimensions (3.05mm length, 4.9mm width, and 1.75mm height) enable dense PCB layouts without compromising layout flexibility or signal integrity. Renesas’s CMOS logic family and bus transceiver logic function ensures compatibility with standard digital communication circuitry.

This product is a member of the ISL3178E series Line Interface ICs, providing inverting line transceiver functionality tailored for half and full duplex RS-485 communication protocols. Although not certified to automotive standards, it is reliable for numerous industrial, commercial, and laboratory applications requiring stable and noise-resistant data transmission.

Operates over a wide temperature range for versatile environmental performance. Low supply current reduces power consumption in embedded systems. Compact MSOP package optimizes board space usage. Supports differential input and inverting output for signal reliability.

Part of a trusted series for RS-485 line drivers and receivers for robust data links.

This line transceiver is widely applicable across industrial automation, communication systems, HVAC controls, and manufacturing equipment. It suits applications requiring stable half or full duplex communication over extended wiring harnesses.
