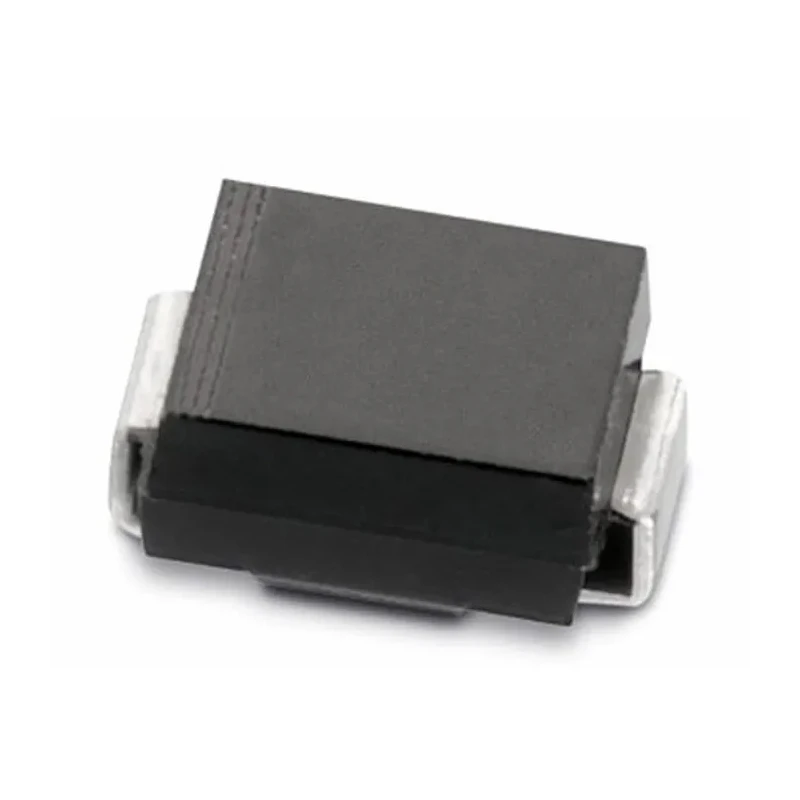

Wurth Elektronik 1-Element Uni-Directional TVS Diode 400 W, 2-Pin DO-214 Package 824500241

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik 1-Element Uni-Directional TVS Diode 400 W, 2-Pin DO-214 Package 824500241

Name: Wurth Elektronik 1-Element Uni-Directional TVS Diode 400 W, 2-Pin DO-214 Package 824500241
Brand: Wurth Elektronik
SKU: 136807
Price: 0.33 USD
Availability: InStock



Category TVS Diode Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Brand	Wurth Elektronik
Height	2.14mm
Length	4.24mm
Width	2.67mm
Mount Type	Surface
Series	WE-TVSP
Maximum Operating Temperature	150°C
Package Type	DO-214
Minimum Operating Temperature	-65°C
Pin Count	2
Number of Elements per Chip	1
Clamping Voltage VC	38.9V
Diode Configuration	Single
Direction Type	Uni-Directional
Minimum Breakdown Voltage Vbr	28.1V
Peak Pulse Power Dissipation Pppm	400W
Test Current It	1mA
Maximum Peak Pulse Current Ippm	40A
Maximum Reverse Leakage Current	1μA

Key Features

This diode features a minimum breakdown voltage of 28.1 V and a clamping voltage of 38.9 V.
It supports a maximum peak pulse current of 40 A ensuring robust transient voltage suppression.
The component offers an operating temperature range from -65°C to 150°C, enabling reliable use in demanding environments.
The glass passivated junction and fast response time enhance its protection capabilities against voltage spikes.
Measuring 4.24 mm in length, 2.67 mm in width, and 2.14 mm in height, it is optimized for low profile applications.
The device is a single element uni-directional TVS diode designed for surface mount applications.
The maximum reverse leakage current is low at 1 μA, maintaining circuit efficiency.
It carries the WE-TVSP series designation and originates from China.

Product Description

Wurth Elektronik 824500241 is a 1-element uni-directional TVS diode delivering a peak pulse power of 400 W in a compact surface mount DO-214 package with 2 pins. It is engineered to offer robust transient voltage suppression in electronics circuits, guarding sensitive components against damaging voltage spikes and surges.

The diode features a minimum breakdown voltage of 28.1 V, clamping voltage of 38.9 V, and supports a maximum peak pulse current of 40 A, making it suitable for various industrial, electronic, and power supply protection applications. Its operational temperature range from -65°C to 150°C allows for reliable performance in harsh environments and extended thermal conditions.

The glass passivated junction ensures improved stability while providing a fast response time to transient events. Its low profile design, with dimensions of 4.24 mm length, 2.67 mm width, and 2.14 mm height, facilitates space-saving mounting on printed circuit boards using surface mount technology.

The single element diode has a minimal maximum reverse leakage current of 1 μA which helps maintain low power losses. Packaged as part of the WE-TVSP series, this diode is manufactured in China to meet quality expectations.

This diode provides 400 W peak pulse power dissipation in a reliable DO-214 package. It protects circuits from overvoltage conditions with a fast acting glass passivated junction. Wide operating temperature range from -65°C to 150°C supports industrial applications.

Compact dimensions enable integration in space-constrained electronic assemblies. Low leakage current of 1 μA minimizes energy loss when idle.

This uni-directional TVS Diode is ideal for industrial, electronic components, power supply protection, HVAC, automation, and general electronics applications. Wurth Elektronik products combine assured quality with engineering performance suited for robust transient voltage suppression needs.
