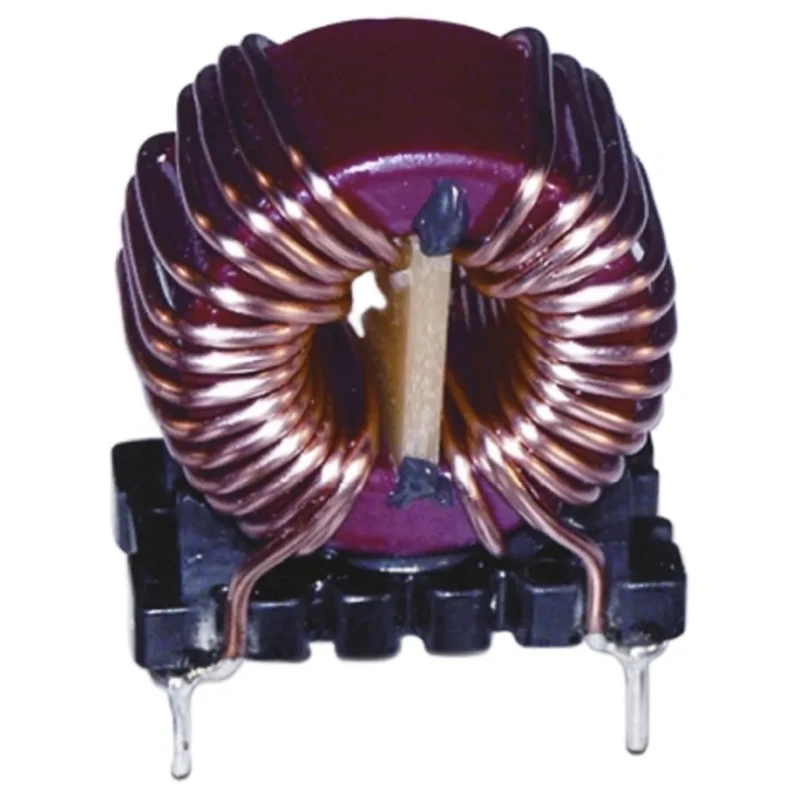

Wurth Elektronik 10 mH 1 A Common Mode Choke 360 mΩ 230V 744822110

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik 10 mH 1 A Common Mode Choke 360 mΩ 230V 744822110

Name: Wurth Elektronik 10 mH 1 A Common Mode Choke 360 mΩ 230V 744822110
Brand: Wurth Elektronik
SKU: 190388
Price: 4.51 USD
Availability: InStock



Category EMI Filters & Protection Brand Wurth Elektronik Condition New

Specifications

Country of Origin	India
Brand	Wurth Elektronik
Height	22mm
Length	17.5mm
Depth	13mm
Mount Type	Radial
Series	WE-CMB HC
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Test Frequency	10kHz
Inductance	10mH
Standards/Approvals	VDE, ENEC, REACH, RoHS
Maximum DC Current	1A
Pin Count	4
Maximum DC Resistance	360mΩ
Inductance Tolerance	±30 %
Termination Style	Solder Pad
Choke Voltage	230V

Key Features

The choke features a compact radial mount design for efficient PCB space utilization.
Wide operating temperature range from -40°C to +125°C accommodates harsh environments.
Inductance tolerance is ±30%, ensuring dependable filtering performance.
Termination style is solder pad providing secure and easy soldering.
It is compliant with VDE, ENEC, REACH, and RoHS standards ensuring quality and safety.
With four pins and a length of 17.5mm, height 22mm, and depth 13mm, it fits precisely in electronic assemblies.
Ideal for suppressing common mode noise and radio interference in power electronics and motor filters.

Product Description

Wurth Elektronik 744822110 Common Mode Choke delivers a 10 mH inductance with a maximum DC current of 1 A and a DC resistance of 360 mΩ at 230 V, designed for robust EMI noise suppression in electronic circuits.

This choke belongs to the WE-CMB H series and features a compact radial mount with four pins, optimized for space-saving PCB designs. Its wide operating temperature range from -40°C to +125°C allows it to operate reliably in demanding industrial, automotive, and power electronics environments.

The component uses an anti-capacitance coiling technique, offering efficient broadband screening for asymmetrical interference. Its inductance tolerance is ±30%, and termination is by solder pad for secure connections.

Compliance with VDE, ENEC, REACH, and RoHS regulations ensures the product meets stringent environmental and safety standards. Measuring 17.5mm in length, 22mm in height, and 13mm in depth, this common mode choke is suitable for power line input and output filters, motor noise suppression, and filtering devices without ground connections.

The choke’s compact design provides efficient suppression of common mode noise. Wide temperature tolerance supports demanding industrial applications. Solder pad termination ensures reliable mounting on PCB. Meets multiple international standards including VDE and RoHS.

High suppression capability at low frequency ranges improves device EMI performance.

Widely used across industrial, power electronics, manufacturing, and motor control applications, this Wurth Elektronik common mode choke is essential for reducing electromagnetic interference and radio emissions.
