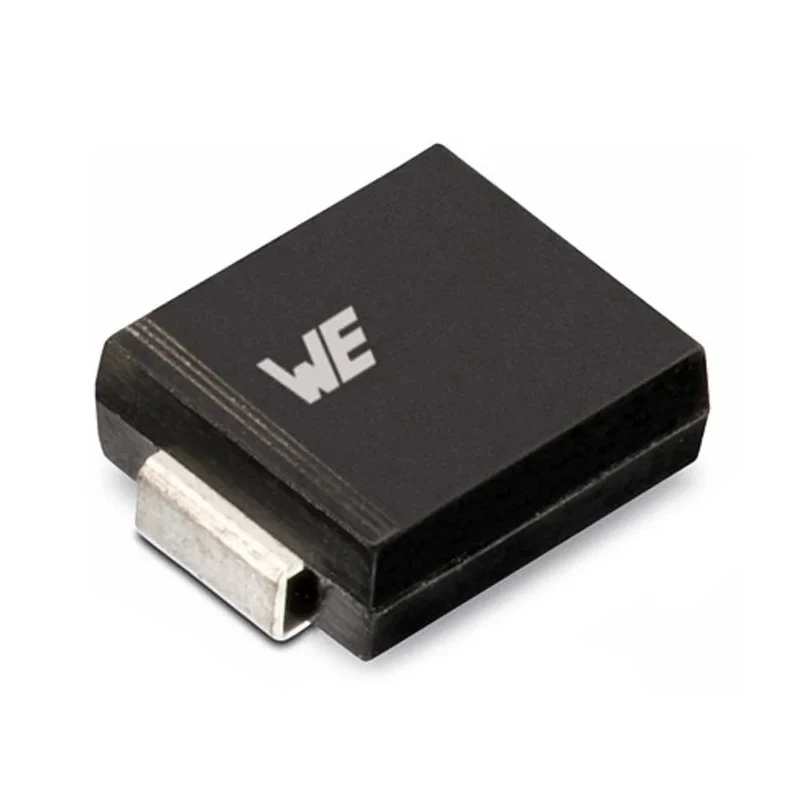

Wurth Elektronik 1-Element Uni-Directional TVS Diode 3 kW, 2-Pin DO-214 824550601
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 2.34mm |
| Length | 6.86mm |
| Width | 5.9mm |
| Mount Type | Surface |
| Series | WE-TVSP |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Number of Elements per Chip | 1 |
| Clamping Voltage VC | 96.8V |
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Minimum Breakdown Voltage Vbr | 70.2V |
| Peak Pulse Power Dissipation Pppm | 3kW |
| Test Current It | 1mA |
| Maximum Peak Pulse Current Ippm | 300A |
| Maximum Reverse Leakage Current | 2μA |
Key Features
- Single-element diode configuration ensures reliable unidirectional transient voltage suppression.
- Minimum breakdown voltage of 70.2 V for effective overvoltage protection.
- Clamping voltage of 96.8 V limits voltage spikes to protect sensitive circuits.
- High peak pulse current rating of 300 A supports robust surge handling.
- Compact package dimensions enable low profile mounting on PCBs.
- Operation guaranteed over a wide temperature range from -65°C to 150°C.
- Low maximum reverse leakage current of 2 μA enhances energy efficiency.
- Glass passivated junction provides fast response time to transient events.
Product Description
Wurth Elektronik 824550601 is a 1-element uni-directional Transient Voltage Suppressor (TVS) diode designed for protection against voltage spikes and surges in electronic circuits.
This discrete semiconductor component dissipates peak pulse power of 3 kW, ensuring robust defense of sensitive devices against transient overvoltages. It utilizes a surface mount DO-214 package with two pins, facilitating compact PCB integration.
The diode features a minimum breakdown voltage of 70.2 V and a clamping voltage rating of 96.8 V, effectively limiting voltage spikes to safe levels. Its maximum peak pulse current of 300 A supports high surge suppression capability while maintaining an ultra-low reverse leakage current of 2 μA, enhancing overall circuit efficiency.
The device operates reliably in extreme temperature conditions ranging from -65°C up to 150°C, making it suitable for demanding industrial, automotive, telecom, and electronic applications. The glass passivated junction construction guarantees exceptionally fast response to transient events, minimizing possible damage from electrical disturbances.
Its compact dimensions (length 6.86 mm, width 5.9 mm, height 2.34 mm) allow for low-profile mounting in sophisticated electronic designs. Single-element diode configuration ensures reliable unidirectional transient voltage suppression.
Minimum breakdown voltage of 70.2 V for effective overvoltage protection. Clamping voltage of 96.8 V limits voltage spikes to protect sensitive circuits. High peak pulse current rating of 300 A supports robust surge handling.
Compact package dimensions enable low profile mounting on PCBs. Operation guaranteed over a wide temperature range from -65°C to 150°C. Low maximum reverse leakage current of 2 μA enhances energy efficiency. Glass passivated junction provides fast response time to transient events.
Manufactured in China meeting Wurth Elektronik quality standards.
This TVS diode is highly reliable for protecting power supplies, industrial control systems, automotive electronics, and communication devices from voltage transients and electrostatic discharges. Wurth Elektronik’s product series WE-TVSP ensures quality and performance suitable for professional industrial and electronics use.
Explore more Wurth Elektronik semiconductor components at EnvMart to find related TVS Diodes and discrete semiconductors tailored to your protection needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The peak pulse power dissipation of this TVS diode is 3 kW, providing robust protection against voltage spikes.
The minimum breakdown voltage for this model is 70.2 V, ensuring effective overvoltage protection.
The clamping voltage of this diode is 96.8 V, which limits voltage spikes to protect sensitive circuits.
The maximum peak pulse current rating is 300 A, supporting high surge handling capabilities.
The dimensions of this diode are 6.86 mm in length, 5.9 mm in width, and 2.34 mm in height, allowing for compact PCB integration.
This diode operates reliably over a wide temperature range from -65°C to 150°C, making it suitable for various applications.
This diode supports surface mounting, facilitating low-profile integration on printed circuit boards (PCBs).
The maximum reverse leakage current for this model is 2 μA, enhancing energy efficiency in circuits.
This component features a single-element diode configuration, ensuring reliable unidirectional transient voltage suppression.
The package type of this TVS diode is DO-214, which is suitable for surface mount applications.
This diode belongs to the WE-TVSP series, which is designed for professional industrial and electronics use.
This TVS diode is suitable for protecting power supplies, industrial control systems, automotive electronics, and communication devices from voltage transients.
