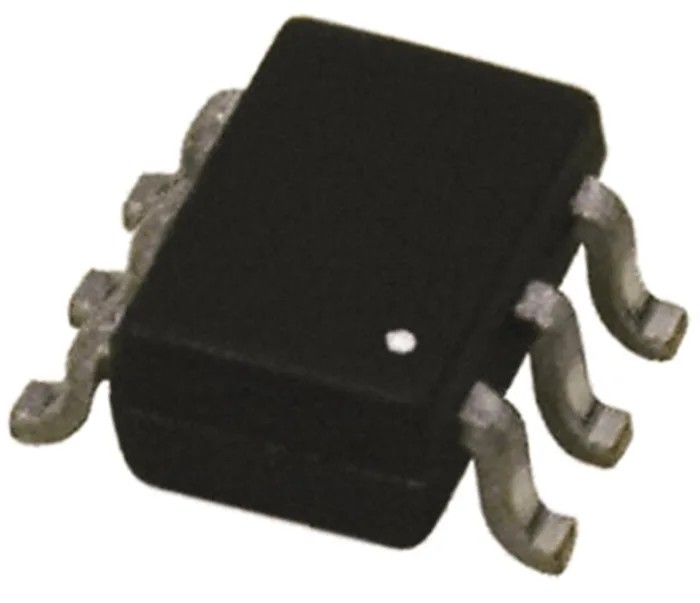

DiodesZetex 10-Element Uni-Directional TVS Diode Array 0.2 W, 6-Pin SOT-363 DT1446-04S-7

DiodesZetex DT1446-04S-7 is a high-performance 10-element uni-directional transient voltage suppression (TVS) diode array engineered for protecting sensitive electronic circuits against voltage spikes and electrostatic discharge events. This device supports quad channel data line protection in a small footprint 6-pin SOT-363 surface mount package with dimensions 2.2 mm length, 1.35 mm width, and 1 mm height, enabling compact PCB layouts.

With a peak pulse power dissipation of 0.2 W and a minimum breakdown voltage of 6 V, the DT1446-04S-7 efficiently clamps voltage surges to a safe level of 8.5 V to prevent circuit damage. It operates reliably across a wide temperature range from -55°C to 150°C and complies with automotive standard AEC-Q101, making it suitable for automotive electronics and industrial applications requiring robust ESD protection.

The device features low leakage current of 5 μA and can withstand maximum peak pulse currents of 4.7 A. It is optimized for four line data protection and provides essential ESD protection with fast response times. The array configuration ensures multiple channels are protected simultaneously while reducing PCB space and component count.

This TVS Diode Array is ideal for use in industrial automation, automotive control units, communication devices, and other sensitive equipment requiring transient voltage suppression and ESD protection. It enhances device durability, reduces downtime, and maintains signal integrity under surge conditions.

Uni-directional diode configuration for effective transient voltage suppression. Peak pulse power dissipation of 0.2 W suitable for moderate surge protection. Compact 6-pin SOT-363 surface mount package allows high-density PCB layouts.

Broad operating temperature from -55°C to 150°C ensures reliability in harsh environments. AEC-Q101 automotive standard compliant for stringent quality and reliability. Low reverse leakage current minimizes power consumption during normal operation.

Multiple elements per chip (10) provide multi-line protection. High peak pulse current capacity of 4.7 A supports transient surge events. Ideal for protecting communication lines, data lines, and sensitive electronics. Designed for industrial, automotive, and communication applications requiring ESD and surge protection.
