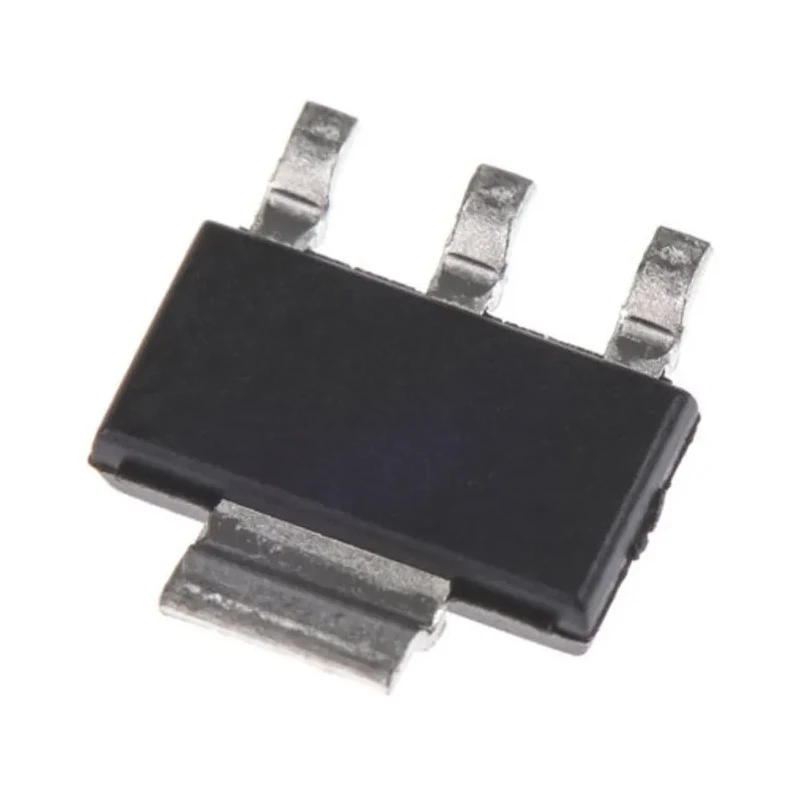

STMicroelectronics High Voltage PNP Bipolar Transistor, -500 mA, -600 V, 3-Pin SOT-223 STN9360
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.9mm |
| Length | 6.7mm |
| Model | STN9360 |
| Width | 7.3mm |
| Mount Type | Surface |
| Series | STN9360 |
| Maximum Operating Temperature | 150°C |
| Package Type | SOT-223 (SC-73) |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | RoHS |
| Pin Count | 3 |
| Maximum Collector Emitter Voltage Vceo | -600V |
| Minimum DC Current Gain hFE | 120 |
| Transistor Polarity | PNP |
| Maximum Emitter Base Voltage VEBO | -7V |
| Maximum Collector Base Voltage VCBO | 600V |
| Maximum Power Dissipation Pd | 1.6W |
| Maximum DC Collector Current Idc | -500mA |
| Transistor Configuration | Single |
Key Features
- Capable of handling a maximum DC collector current of -500 mA.
- Withstands high maximum collector emitter voltage of -600 V for robust performance.
- Compact 3-pin surface mount SOT-223 package for easy PCB integration.
- Offers minimum DC current gain (hFE) of 120, ensuring reliable transistor function.
- Operates over a wide temperature range from -65°C to 150°C for versatile environments.
- Power dissipation rated at 1.6 W to maintain stable operation under load.
- Designed as a PNP transistor with single transistor configuration.
- RoHS compliant construction adheres to environmental standards.
Product Description
STMicroelectronics STN9360 is a high voltage PNP bipolar transistor well suited for industrial, electronic components, and power applications requiring reliable current switching and amplification.
This transistor supports a maximum DC collector current of -500 mA and a maximum collector emitter voltage rating of -600 V, ensuring excellent performance in demanding electrical environments. Packaged in a compact 3-pin SOT-223 surface mount format, it is designed for ease of assembly and efficient heat dissipation.
The device features a minimum DC current gain (hFE) of 120, a maximum emitter base voltage of -7 V, and a power dissipation capability of 1.6 watts. Its operational temperature range from -65°C to 150°C allows use in a wide variety of temperature-sensitive applications.
The STN9360 transistor is RoHS compliant, confirming adherence to environmental and safety standards. Its physical size is optimized for dense circuit boards, with a length of 6.7 mm, width of 7.3 mm, and height of 1.9 mm.
Capable of handling a maximum DC collector current of -500 mA. Withstands high maximum collector emitter voltage of -600 V for robust performance. Compact 3-pin surface mount SOT-223 package for easy PCB integration. Offers minimum DC current gain (hFE) of 120, ensuring reliable transistor function.
Operates over a wide temperature range from -65°C to 150°C for versatile environments. Power dissipation rated at 1.6 W to maintain stable operation under load. Designed as a PNP transistor with single transistor configuration.
RoHS compliant construction adheres to environmental standards. Physical dimensions: 6.7 mm length, 7.3 mm width, and 1.9 mm height for compact circuit design.
This transistor is ideal for use in industrial electronics, power control modules, and high-voltage switching applications. It supports surface mount assembly, making it compatible with modern automated manufacturing processes.
Explore other semiconductor components and Bipolar Transistors at EnvMart for your electronics and industrial automation needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model can handle a maximum DC collector current of -500 mA.
It has a maximum collector-emitter voltage rating of -600 V, suitable for high voltage applications.
The physical dimensions of this unit are 6.7 mm in length, 7.3 mm in width, and 1.9 mm in height.
It is rated for a maximum power dissipation of 1.6 W, allowing stable operation under load.
The minimum DC current gain (hFE) is 120, ensuring reliable function in applications.
This model operates over a wide temperature range from -65°C to 150°C, making it versatile for various environments.
It is packaged in a compact 3-pin SOT-223 surface mount format, facilitating easy PCB integration.
This unit is designed as a PNP transistor, suitable for various electronic applications.
The transistor is RoHS compliant, adhering to environmental and safety standards.
The maximum emitter-base voltage (VEBO) is -7 V, which is important for its operation.
It is ideal for industrial electronics, power control modules, and high-voltage switching applications.
This model features a 3-pin configuration, which is standard for its package type.
