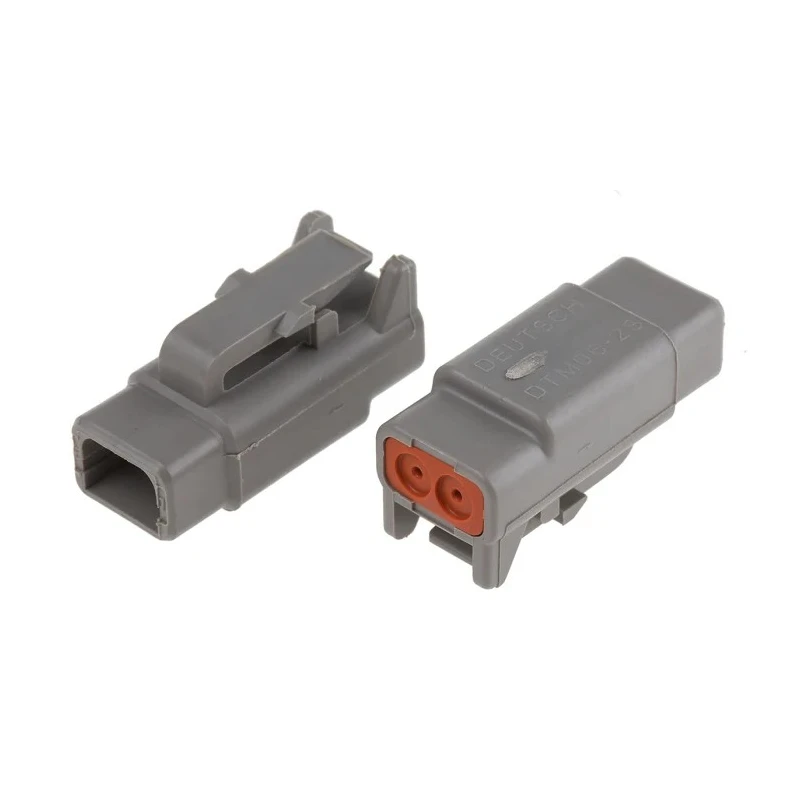

Deutsch Automotive Connector Male Grey Cable 2 Way Crimp Termination DTM06-2S

Deutsch DTM06-2S Automotive Connector Male Grey Cable 2 Way Crimp Termination offers a high-quality, rugged solution for automotive and transport electrical connections. This connector features a grey polyamide fibreglass housing that provides resistance against harsh environmental conditions often encountered in engine compartments and transmission tunnels.

Its tactile and audible mating system guarantees secure electrical contact retention, while nickel plated copper alloy contacts ensure low resistance and high durability. Rated at 7.5A current capacity, it supports operation in extreme temperature ranges from -55°C to +125°C, making it ideal for demanding automotive and industrial applications.

The connector delivers IP6K9K and IP68 ingress protection levels, providing excellent resistance against dust and water ingress for reliable performance in tough conditions. This crimp termination connector is designed for cable mount applications with male gender configuration and supports size 20 contacts, which are hand insertable and removable, allowing for maintenance and ease of assembly.

The connector dimensions are compact: 12.9mm height, 12.07mm width, 27.56mm depth, and a contact diameter of 3.05mm. The product complies with EU RoHS and ELV regulations, supporting eco-friendly and safe usage.

This DTM series connector is highly regarded in automotive, transportation, industrial, and manufacturing sectors for its ruggedness and reliability. It is especially suited for signal and power transmission in harsh environmental zones requiring secure and robust electrical connections.

Features tactile and audible connector mating for reliable connection. Constructed with rugged thermoplastic polyamide fibreglass housing for durability. Supports operating temperature range from -55°C to +125°C. Rated for current up to 7.5A with IP6K9K and IP68 ingress protection.

Includes nickel plated copper alloy contacts with positive contact retention. Compatible with size 20 contacts and hand insertable/removable contacts. Ideal for automotive applications such as engine compartments and transmission tunnels.

Connector dimensions: height 12.9mm, width 12.07mm, depth 27.56mm, diameter 3.05mm. Complies with EU RoHS and EU ELV standards ensuring environmental compliance. Explore the wide range of automotive and electrical connectors available in EnvMart for industrial and automotive wiring solutions.
