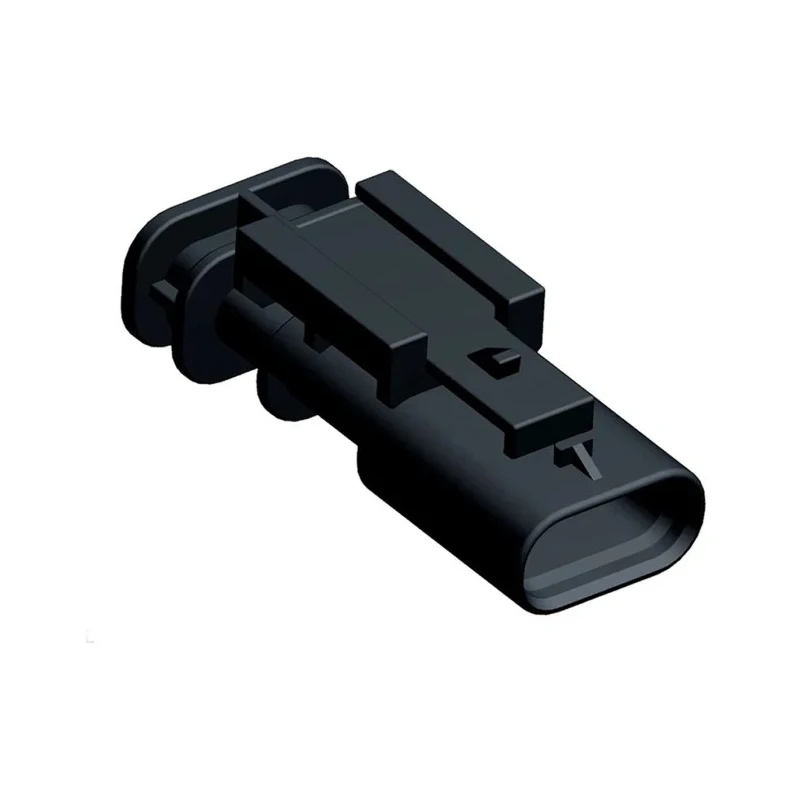

TE Connectivity MCON 1.2 Automotive Connector Male Black 3 Way Crimp Termination 25A Current 125°C Max Operating 1-1703494-1
Specifications
| Country of Origin | Hungary |
|---|---|
| Brand | TE Connectivity |
| Colour | Black |
| Current | 25A |
| Height | 14.95mm |
| Depth | 44mm |
| Width | 18.8mm |
| Gender | Male |
| Housing Material | Polybutylene Terephthalate |
| Series | MCON 1.2 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Sub Type | Automotive Connector Housing |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Standards/Approvals | REACH, ELV, RoHS |
| Number of Contacts | 3 |
Key Features
- Supports 25A current carrying capacity.
- Operates reliably between -40°C and 125°C.
- Features 3 male contacts in a single row.
- Constructed from durable polybutylene terephthalate housing material.
- Incorporates Terminal Position Assurance for secure terminal locking.
- Black color with external latch and keying for accurate mating.
- Complies with REACH, ELV, and RoHS standards.
- Suitable for sealed wire-to-wire tab connections in automotive systems.
Product Description
TE Connectivity 1-1703494-1 is a high-quality MCON 1.2 mm automotive connector male designed for wire-to-wire tab applications with crimp termination. It is built for robust performance in automotive environments characterized by mechanical stress and high vibration.
The connector features a black polybutylene terephthalate housing that provides durability and resistance within a temperature range of -40°C to 125°C. Its design includes Terminal Position Assurance (TPA), which locks terminals securely in place to prevent disconnection, along with an external latch and keying mechanism to ensure precise mating and prevent incorrect connections.
With a 3-contact, single-row layout rated for 25A current, this connector supports reliable electrical performance. The compact form factor has dimensions of 18.8 mm width, 14.95 mm height, and 44 mm depth, making it suitable for space-constrained automotive applications. It complies with key international standards including REACH, ELV, and RoHS.
This connector housing forms part of the MCON interconnection system widely used in motor vehicles to provide sealed, vibration-resistant connections. Note that the corresponding 1.2 mm locking lance tab contacts are sold separately and necessary for full assembly.
Supports 25A current carrying capacity. Operates in temperature range from -40°C to 125°C. 3 contacts arranged in a single row design. Durable polybutylene terephthalate housing material. Includes Terminal Position Assurance to secure terminals.
Black housing with external latch and keying for secure mating. Complies with REACH, ELV, and RoHS standards. Compact dimensions appropriate for automotive applications. Manufactured in Hungary under strict quality controls.
Suitable for automotive electrical connector use cases.
This product is ideal for automotive, manufacturing, and electrical connector applications requiring reliable, sealed wire-to-wire connections in harsh environments. TE Connectivity's MCON system is renowned for its robustness and secure terminal retention features, making it a trusted choice in the automotive electrical connector category.
Explore more products from TE Connectivity and related Automotive Connectors in EnvMart’s Electronics & Electricals section for professional-grade industrial components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This automotive connector supports a current carrying capacity of 25A.
The maximum operating temperature for this connector is 125°C.
The minimum operating temperature for this connector is -40°C.
This connector features 3 male contacts arranged in a single row design.
The housing of this connector is constructed from polybutylene terephthalate (PBT).
This model complies with REACH, ELV, and RoHS standards.
The dimensions of this connector are 18.8 mm in width, 14.95 mm in height, and 44 mm in depth.
This connector uses crimp termination for secure connections.
Yes, this connector incorporates Terminal Position Assurance (TPA) for secure terminal locking.
This connector is manufactured in Hungary under strict quality controls.
This connector is suitable for sealed wire-to-wire tab connections in automotive systems.
This model includes an external latch and keying mechanism to ensure precise mating and prevent incorrect connections.
