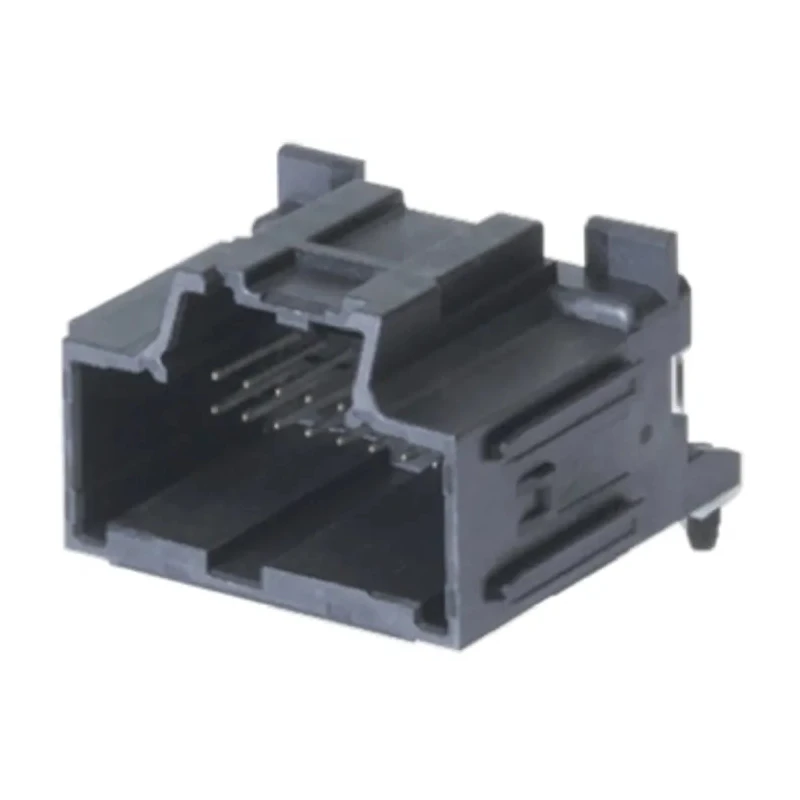

Molex Stac64 Automotive Connector Male Through Hole 20 Contacts 10A Black Thermoplastic Housing 34691-0200
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Colour | Black |
| Current | 10A |
| Height | 22.05mm |
| Depth | 31.89mm |
| IP Rating | IP67 |
| Width | 34.04mm |
| Gender | Male |
| Mount Type | Through Hole |
| Housing Material | Thermoplastic |
| Contact Material | Brass |
| Series | Stac64 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 100°C |
| Sub Type | PCB Connector |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Contact Plating | Tin |
| Number of Contacts | 20 |
Key Features
- Constructed with high temperature thermoplastic housing for durability.
- Rated for a current of 10 amperes suitable for automotive applications.
- Black colour housing with brass contacts plated with tin.
- IP67 rated for protection against dust and water ingress.
- Operates reliably between -40°C and 100°C temperature range.
- Stackable Stac64 series with 2 rows of contacts arranged in right-angle configuration.
- Designed for PCB mounting with alignment posts and Mylar tail strip for secure fitment.
- Typical uses include automotive vehicle interiors such as lighting, radios, and instrument panels.
Product Description
Molex 34691-0200 Stac64 automotive connector male is a robust 20-way PCB connector designed for through-hole soldering with crimp termination. The connector features a durable thermoplastic housing that withstands high temperature solder processes including infrared and wave-free soldering, making it suitable for demanding automotive environments.
With a current rating of 10A and IP67 ingress protection, this connector provides reliable electrical and environmental performance for vehicle interior electronic systems such as lighting, radios, and instrument panels. The connector’s housing is black and constructed to support stacking in large assemblies through dovetail moldings, enabling modular and space-efficient designs.
The Stac64 series uses a 2.54 mm pitch and right-angle configuration with 2 rows of brass contacts plated with tin for corrosion resistance and electrical conductivity. It includes PCB alignment posts, stand-offs, and a pre-assembled linear Mylar tail alignment strip for precise mounting and assembly on printed circuit boards.
This connector aligns with Molex specifications ES-4000-5013 and complements the 34729 series receptacle connectors, facilitating effective mating in complete connector systems. 20 contacts configured in 2 rows for compact PCB mounting.
Thermoplastic housing built for high temperature soldering processes. Brass contacts plated with tin for enhanced durability and conductivity. Rated to carry 10 amperes current for standard automotive applications. IP67 rated for ingress protection against dust and water.
Operating temperature range from -40°C to 100°C. Stackable right-angle header design with modular dovetail housing. Suitable for automotive interior electronic modules and assemblies. Country of origin is China. This connector is new and designed for demanding automotive electronic assembly applications.
Explore our wide range of Automotive Connectors and related components at EnvMart for reliable industrial, automotive, and electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This automotive connector is rated for a current of 10 amperes, making it suitable for standard automotive applications.
The connector has an IP67 rating, providing protection against dust and water ingress.
It operates reliably within a temperature range of -40°C to 100°C.
This model features 20 contacts arranged in 2 rows.
The housing is made from thermoplastic, and the contacts are brass plated with tin for enhanced conductivity and corrosion resistance.
It uses crimp termination, suitable for secure connections in automotive applications.
This model is designed for through-hole mounting on printed circuit boards (PCBs).
The dimensions are as follows: height 22.05 mm, width 34.04 mm, and depth 31.89 mm.
It belongs to the Stac64 series, which features a stackable design for modular assemblies.
Yes, it is designed for use in automotive interior electronic systems such as lighting, radios, and instrument panels.
The connector is manufactured in China.
Yes, it includes PCB alignment posts and a pre-assembled linear Mylar tail alignment strip for precise mounting.
