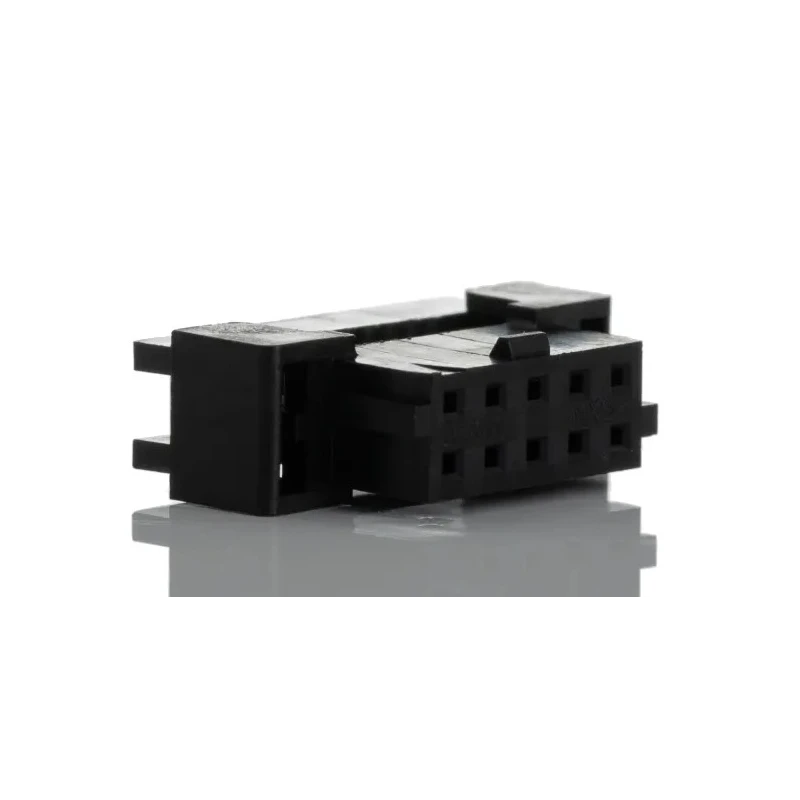

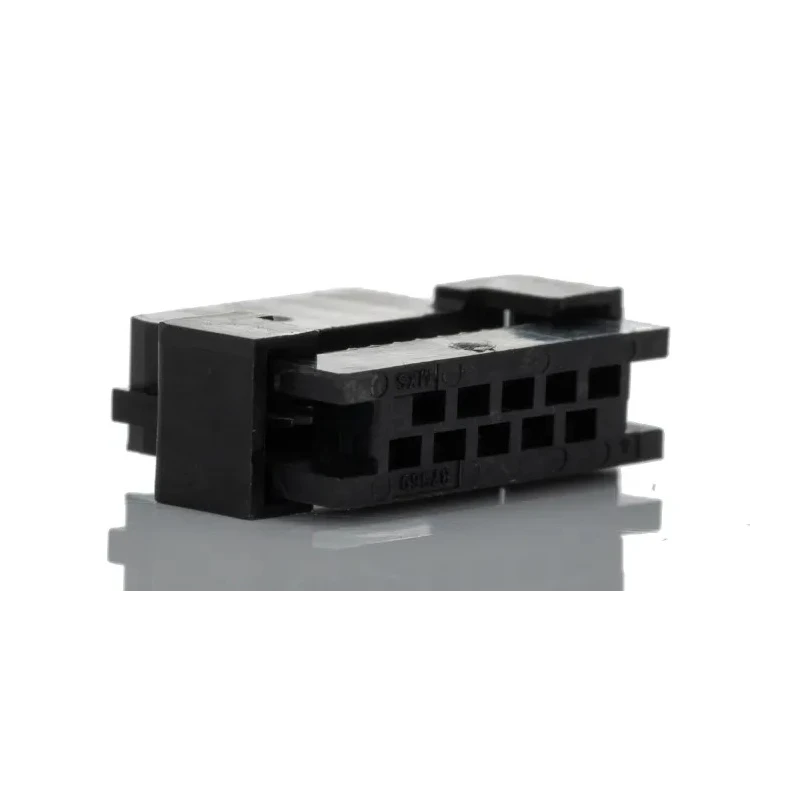

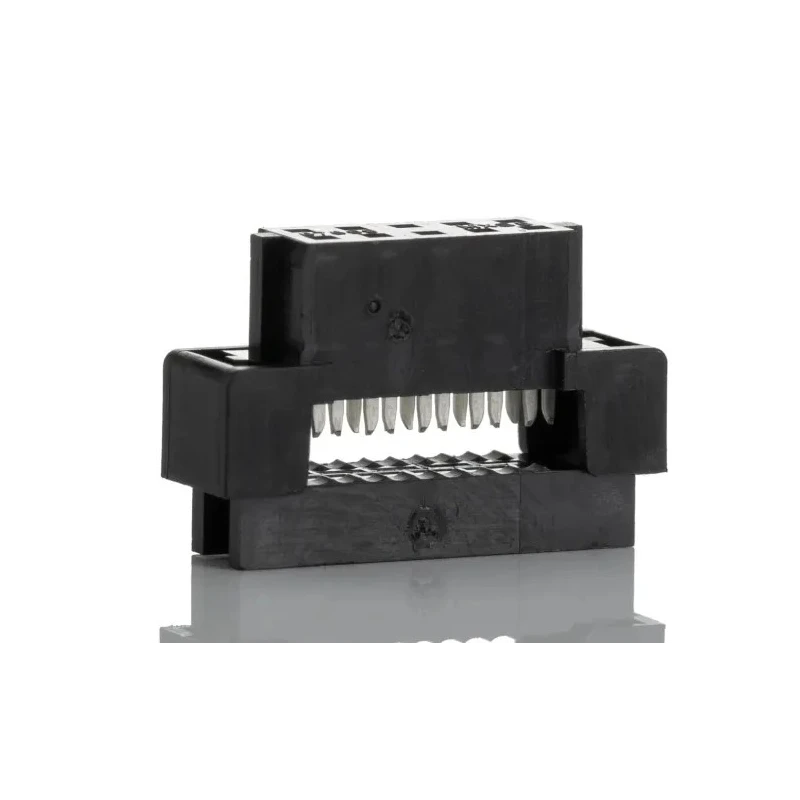

Molex Milli-Grid Series Straight Through Hole PCB Socket 10-Contact 2 Row 2 mm Pitch IDC 87568-1073
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Straight |
| Current | 12A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Copper |
| Series | Milli-Grid |
| Termination Type | IDC |
| Maximum Operating Temperature | 85°C |
| Sub Type | Wire-to-Board |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector System | Milli Grid Cable to Board |
Key Features
- Features gold plated copper contacts for corrosion resistance.
- Operates reliably within -20°C to 85°C temperature range.
- Supports up to 12A current capacity per contact at 125V voltage.
- Through-hole mount with polyester housing ensures durable PCB connection.
- Ideal for telecommunications, automotive, and electronic manufacturing industries.
- Centre locking ramp provides secure mating and locking friction for vibration resistance.
- Lightweight design minimizes PCB mechanical strain with a weight of approximately 0.723 grams.
Product Description
Molex 87568-1073 is a Milli-Grid series straight through hole PCB socket specifically designed to provide reliable wire-to-board connections with a 10-contact dual row layout and 2 mm pitch. It features a robust polyester housing and gold-plated copper contacts that resist corrosion, ensuring long-lasting performance in demanding environments.
This PCB socket supports up to 12 amperes current per contact and a standard voltage of 125V. Its operating temperature ranges from -20°C to 85°C, making it suitable for various industrial and electronic applications, including telecommunications systems, automotive electronics, and manufacturing equipment.
The through-hole mount type allows secure installation onto printed circuit boards, while the IDC termination type facilitates easy assembly with flat cables. The centre locking ramp and friction locking ramp secure the connection even in vibration-prone environments, preventing disconnections and ensuring stable signal transmission.
The Milli-Grid socket pairs effectively with compatible Milli-Grid vertical headers, enhancing device functionality and providing design flexibility. The product's lightweight 0.723g construction places minimal strain on PCBs, supporting overall system durability.
This PCB socket is ideal for industry sectors such as telecommunications, automotive, electronics manufacturing, security systems, and digital media devices. Its high-density 2.00 x 2.00 mm grid pattern and locking features allow for dependable, compact interconnections in modern electronic assemblies.
Gold-plated copper contacts ensure corrosion resistance. Supports high current and voltage ratings appropriate for signal and power transmission. Wide operating temperature range accommodates harsh environments. Centre locking ramp and friction ramp enhance connection security under vibration.
Lightweight polyester housing reduces mechanical stress on PCBs. Suitable for telecommunications, automotive, and industrial electronics applications. Compatible with other Milli-Grid IDC connectors for design versatility.
Explore a comprehensive range of PCB Sockets and connectors at EnvMart to find the right solutions for your electronic component needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports up to 12A current capacity per contact at 125V voltage.
It operates reliably within a temperature range of -20°C to 85°C.
This model features a through-hole mount type for secure installation onto printed circuit boards.
The housing is made of polyester, and the contacts are gold-plated copper for corrosion resistance.
It has a total of 10 contacts arranged in a 2-row layout.
The pitch size is 2 mm, which is suitable for high-density applications.
It features an IDC (Insulation Displacement Connector) termination type for easy assembly with flat cables.
It is ideal for telecommunications, automotive, and electronic manufacturing industries.
Yes, it includes a centre locking ramp and friction locking ramp to secure the connection against vibrations.
It weighs approximately 0.723 grams, minimizing mechanical strain on PCBs.
The contact gender is female, designed for wire-to-board connections.
The country of origin for this PCB socket is India.
