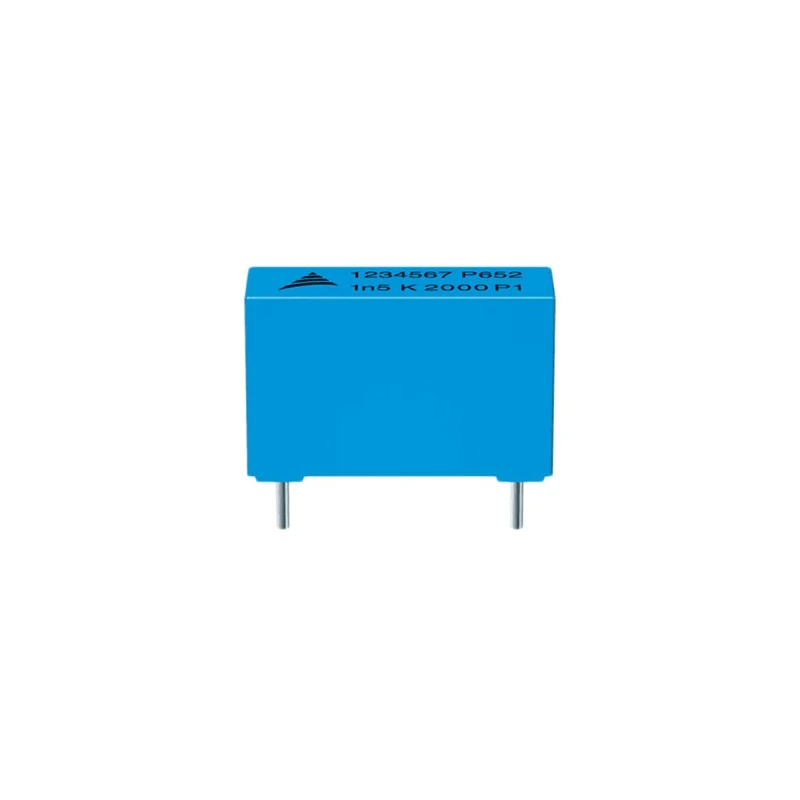

TDK Film Capacitor 100 nF 1kV AC 1kV DC Through Hole 2 Pins B32653A0104J000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 16.5mm |
| Length | 26.5mm |
| Model | B32653A0104J000 |
| Width | 8.5mm |
| Mount Type | Through Hole |
| Series | B32653 |
| Maximum Operating Temperature | 110°C |
| Capacitance | 100nF |
| Standards/Approvals | UL, RoHS |
| Pin Count | 2 |
| Rated AC Voltage | 1kV ac |
| Rated DC Voltage | 1kV dc |
| Lead Pitch | 22.5mm |
| Lead Diameter | 0.8mm |
| Automotive Standard | AEC-Q200 Rev D |
Key Features
- Capacitance of 100 nF suitable for general consumer and industrial electronics.
- Supports rated AC and DC voltages of 1kV each for high voltage applications.
- Through hole mounting with 2 pins and a 22.5 mm lead pitch.
- Maximum operating temperature of 110°C ensuring durability under heat.
- Complies with automotive standard AEC-Q200 Rev D and UL, RoHS certifications.
- Compact dimensions of 26.5 mm length, 16.5 mm height, and 8.5 mm width.
- Lead diameter of 0.8 mm providing reliable electrical connections.
Product Description
The TDK B32653A0104J000 Film Capacitor is a metallised polyester film capacitor designed for use in industrial and consumer electronics requiring reliable high voltage performance. Featuring a capacitance of 100 nF, it supports rated voltages of 1 kV AC and 1 kV DC, making it ideal for demanding applications such as lamp ballast circuits for energy-saving lamps.
This capacitor uses a through hole mounting type with two pins spaced at a 22.5 mm pitch. Its compact form factor measures 26.5 mm in length, 16.5 mm in height, and 8.5 mm in width, with a lead diameter of 0.8 mm. The device supports a high maximum operating temperature of 110°C, allowing for stable operation in harsh conditions.
Certified to meet automotive standard AEC-Q200 Rev D and approved under UL and RoHS guidelines, the B32653 series ensures safety and compliance for various industrial and electronic manufacturing uses. The capacitor is uncoated, so proper consideration must be given to creepage and clearance when installing near live parts.
100 nF capacitance tailored for both consumer and industrial electronic circuits. High voltage rating of 1 kV AC and 1 kV DC for robust performance. Reliable through hole mounting facilitates stable PCB installation. Designed to withstand temperatures up to 110°C ensuring thermal endurance.
Complies with rigorous automotive and safety standards. Compact and precise dimensions for space-efficient PCB layouts.
This film capacitor is essential for applications in industrial electronics, manufacturing equipment, HVAC control circuits, agriculture machinery electronics, and commercial lamp ballasts. It contributes to circuit stability and energy efficiency in power electronics and signal conditioning systems.
EnvMart offers this TDK B32653A0104J000 capacitor with comprehensive technical support and product documentation including datasheets and design files. Explore our extensive catalog of Film Capacitors and related components for your industrial and laboratory designs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance of this model is 100 nF, suitable for various consumer and industrial electronics applications.
It supports rated AC and DC voltages of 1 kV each, making it suitable for high voltage applications.
The maximum operating temperature for this model is 110°C, allowing for stable performance in higher temperature environments.
This capacitor features a through hole mounting type with two pins, ensuring reliable PCB installation.
The capacitor measures 26.5 mm in length, 16.5 mm in height, and 8.5 mm in width.
The lead pitch for this capacitor is 22.5 mm, which is important for ensuring compatibility with PCB layouts.
It complies with automotive standard AEC-Q200 Rev D and is approved under UL and RoHS guidelines.
The lead diameter is 0.8 mm, which provides reliable electrical connections in circuit applications.
This model is suitable for applications in industrial electronics, manufacturing equipment, HVAC control circuits, and commercial lamp ballasts.
This capacitor belongs to the B32653 series, which is designed for high voltage performance in various electronic applications.
This model has 2 pins, facilitating its installation on printed circuit boards.
The country of origin for this capacitor is India.
