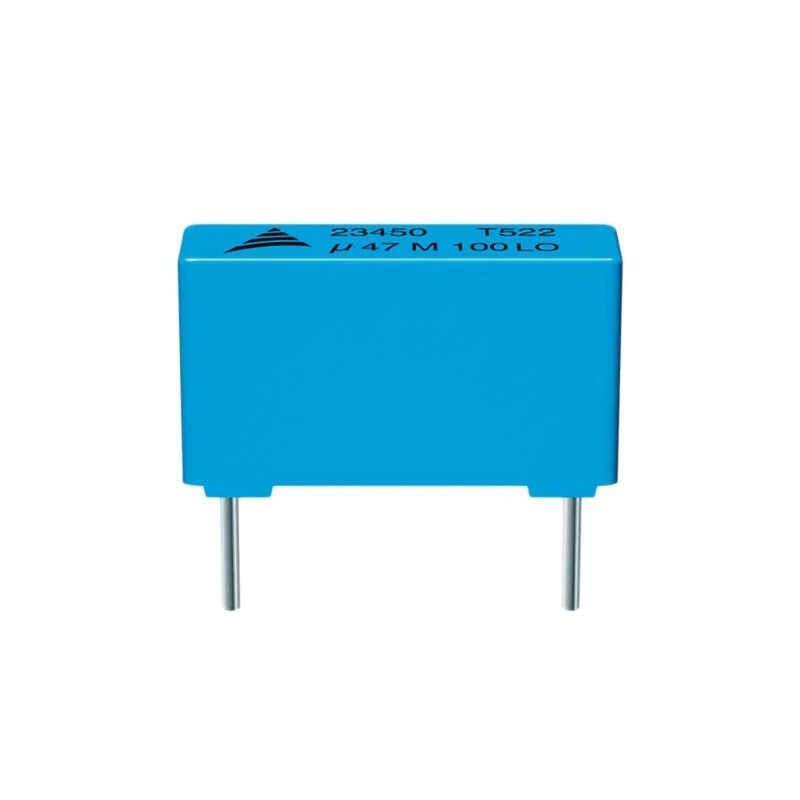

TDK Film Capacitor Through Hole 220 nF 450 V AC 450 V DC 2 Pin 15 mm Pitch B32522N6224J

TDK B32522N6224J Film Capacitor is a high-quality through hole component designed for industrial and automotive electronic applications requiring reliable blocking, coupling, decoupling, bypassing, and radio frequency interference (RFI) suppression.

This capacitor delivers 220 nF capacitance with rated voltages of 450 volts AC and 450 volts DC, ensuring robust performance in demanding electrical environments. It features a lead pitch of 15 mm optimized for printed circuit board (PCB) mounting and a sturdy plastic case sealed with UL 94 V-0 epoxy resin to provide excellent protection against environmental factors and mechanical stress.

The device is constructed using modern stacked-film and wound technology, which enhances its high pulse strength and contact reliability, indispensable for automotive system applications. It fully complies with the automotive industry’s AEC-Q200 Rev D standard and meets RoHS and UL certifications, emphasizing safety and environmental friendliness.

With a maximum operating temperature of 125°C, this capacitor can tolerate elevated thermal conditions typical in automotive and industrial electronic devices. Its physical form factor includes a compact length of 18 mm, width of 6 mm, height of 11 mm, and a lead diameter of 0.8 mm, making it compatible with various through hole PCB layouts and designs.

This film capacitor is suitable for applications in automotive electronics, power management, filtering circuits, and any equipment requiring stable capacitance under high voltage and thermal stresses. It is ideal for manufacturers and repair technicians engaged in automotive industrial manufacturing, electronic assembly, and maintenance.

Capacitance of 220 nanoFarads suitable for general purchase blocking and coupling applications. Rated AC voltage of 450 V and DC voltage of 450 V ensuring high voltage endurance. Mount type is through hole with a lead pitch of 15 mm for PCB insertion.

Temperature tolerant up to 125°C, making it reliable for automotive environments. Constructed with stacked-film and wound technology featuring a plastic case with epoxy resin sealing for durability. Complies with automotive standard AEC-Q200 Rev D, RoHS, and UL regulations for quality and safety.

Physical dimensions include length 18 mm, width 6 mm, height 11 mm, and lead diameter 0.8 mm. Pin count of 2 supporting standard film capacitor configurations. Explore EnvMart's broad range of high-quality Film Capacitors and electronic components engineered for precision and reliability in industrial and automotive applications.
