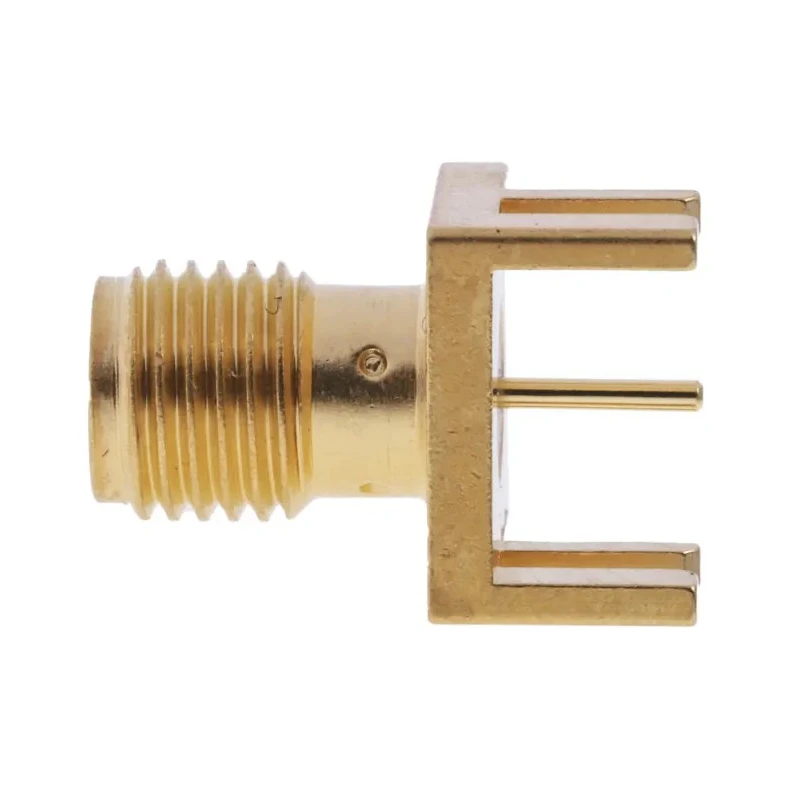

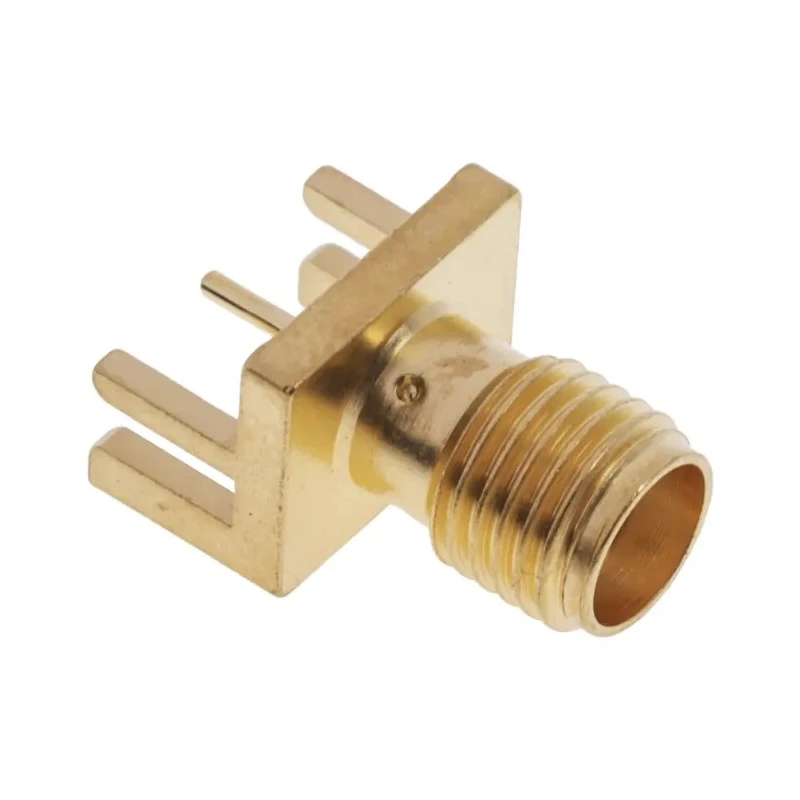

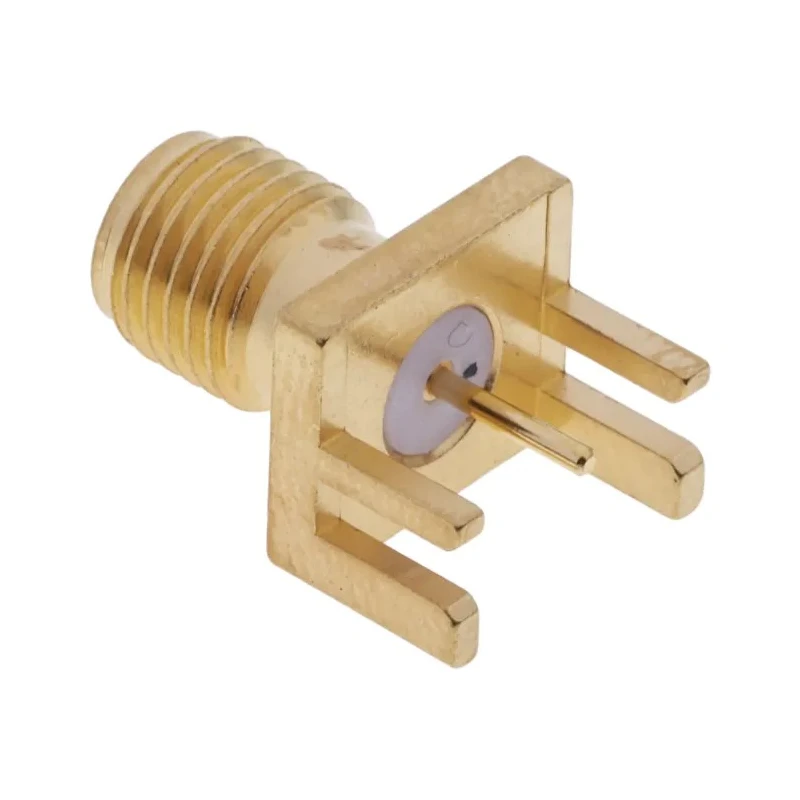

Cinch SMA Series Coaxial Connector Edge Female SMA 50 Ω Straight Body Solder 142-0701-801

Free Delivery in India | Lowest Global Shipping Charges

Cinch SMA Series Coaxial Connector Edge Female SMA 50 Ω Straight Body Solder 142-0701-801

Name: Cinch SMA Series Coaxial Connector Edge Female SMA 50 Ω Straight Body Solder 142-0701-801
Brand: Cinch
SKU: 135641
Price: 5.11 USD
Availability: InStock



Category Coaxial Connector Brand Cinch Condition New

Specifications

Country of Origin	United States
Size	Standard
Brand	Cinch
Orientation	Straight
Mount Type	Edge
Operating Frequency	18GHz
Contact Material	Beryllium Copper
Series	SMA
Termination Type	Solder
Maximum Operating Temperature	165°C
Cable Type	RG142, RG178, RG58
Minimum Operating Temperature	-65°C
Polarity	Normal
Impedance	50Ω
Contact Plating	Gold
Contact Gender	Female
Connector Gender	Female
Coaxial Connector Type	SMA
Body Plating	Gold over Nickel

Key Features

The connector features a gold over nickel body plating for enhanced durability.
Contact material is beryllium copper with gold plating for optimal conductivity.
Designed to operate within a wide frequency range up to 18 GHz.
Suitable for solder termination to ensure secure cable connections.
Operates reliably over a temperature range from -65°C to 165°C.
This SMA connector conforms to no specific standards or approvals but is built for performance and reliability.
It comes as a standard size without bulkhead and is ideal for professional RF applications.

Product Description

Cinch 142-0701-801 SMA Series Coaxial Connector is an edge mount female SMA connector engineered for precision and reliability in electronic and communication systems. It supports 50 Ω impedance, ensuring minimal signal loss and efficient transmission for RF coaxial applications.

This connector is designed for solder termination, providing a straight orientation suitable for integration with RG142, RG178, and RG58 coaxial cables. The body plating of gold over nickel enhances resistance to corrosion and wear, making it durable under demanding conditions.

The contact pins are constructed from beryllium copper and plated with gold, which delivers excellent electrical conductivity and mechanical stability. This connector functions efficiently up to an operating frequency of 18 GHz, making it suitable for various high-frequency industrial, laboratory, and communication equipment applications.

Its operating temperature ranges from -65°C to 165°C, allowing use in harsh environmental conditions without compromising performance. The standard size design excludes a bulkhead, making it suitable for cable assemblies where space and weight considerations are crucial.

Cinch SMA coaxial connectors are widely used in aerospace, telecommunications, test and measurement, and industrial RF systems that require stable and reliable signal connections. While no specific standards or certifications are indicated, the build quality and material choices meet professional-grade standards for coaxial connectors.

The connector features a gold over nickel body plating for enhanced durability. Contact material is beryllium copper with gold plating for optimal conductivity. Designed to operate within a wide frequency range up to 18 GHz.

Suitable for solder termination to ensure secure cable connections. Operates reliably over a temperature range from -65°C to 165°C. Standard size suitable for RG142, RG178, and RG58 cables. Edge mount with straight body orientation for installation flexibility.
