DiodesZetex 5-Channel Adjustable Step-Down DC/DC Converter 5.5V 1A 1.8MHz TSOT PAM2312AABADJ

Free Delivery in India | Lowest Global Shipping Charges

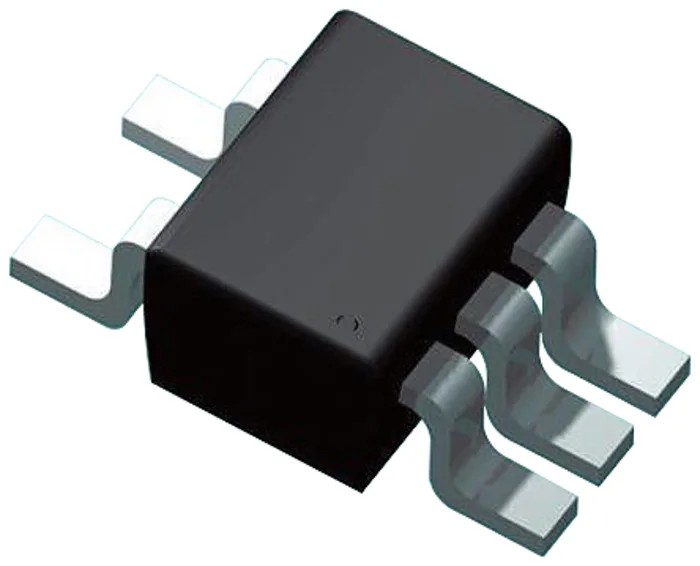

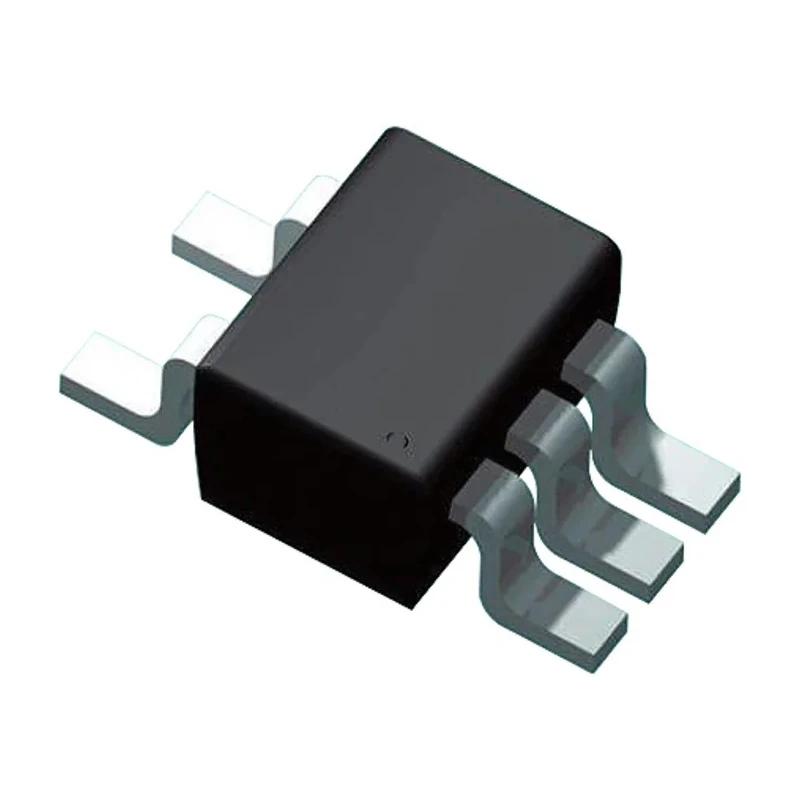

DiodesZetex 5-Channel Adjustable Step-Down DC/DC Converter 5.5V 1A 1.8MHz TSOT PAM2312AABADJ

Name: DiodesZetex 5-Channel Adjustable Step-Down DC/DC Converter 5.5V 1A 1.8MHz TSOT PAM2312AABADJ
Brand: DiodesZetex
SKU: 135625
Price: 0.32 USD
Availability: InStock



Category DC/DC Converter Brand DiodesZetex Condition New

Specifications

Country of Origin	India
Brand	DiodesZetex
Height	1mm
Length	3.1mm
Model	PAM2312AABADJ
Width	1.8mm
Mount Type	Surface
Output type	Adjustable
Series	PAM2312
Topology	Step Down
Maximum Operating Temperature	85°C
Package Type	TSOT
Minimum Operating Temperature	-40°C
Number of outputs	5
Maximum Switching Frequency	1.8MHz
Maximum Output Current	1A
Maximum Output Voltage	5.5V
Minimum Input Voltage	2.5V
Pin Count	5
Minimum Output Voltage	600mV

Key Features

The converter features five independent outputs for versatile power management.
Operating input voltage ranges from 2.5V to 5.5V ensuring compatibility with various power sources.
It operates with a high switching frequency of up to 1.8MHz for efficient conversion.
Its compact TSOT package with 5 pins ensures easy surface mounting on PCBs.
The device supports a minimum output voltage of 600mV adjustable for custom needs.
Operating temperature range is wide from -40°C to 85°C suitable for industrial environments.
The small dimensions (3.1mm length, 1.8mm width, 1mm height) allow for space-saving circuit layouts.

Product Description

DiodesZetex PAM2312AABADJ is a 5-channel adjustable step-down DC/DC converter designed for efficient and compact power regulation. It supports a maximum output voltage of 5.5V and a maximum output current of 1A, meeting the demands of modern electronic circuits requiring multiple regulated voltages from a single supply.

The device operates on input voltages from 2.5V to 5.5V and delivers adjustable output voltages starting as low as 600mV. Its high switching frequency of up to 1.8MHz contributes to reduced component sizes and improved efficiency. The converter comes in a compact 5-pin TSOT surface mount package, small enough to fit in tight PCB spaces, with dimensions of 3.1mm in length, 1.8mm in width, and 1mm in height.

The operating temperature range from -40°C to 85°C ensures reliable performance in industrial, commercial, and embedded applications. It does not conform to automotive standards but suits various power management uses such as industrial electronics, instrumentation, communication devices, and embedded systems.

Five independent adjustable outputs for flexible power distribution. Wide input voltage range accommodates batteries and other DC sources. High switching frequency reduces external component size for compact designs. Compact TSOT package suitable for surface-mount PCB assembly.

Operational over an extended temperature range for industrial robustness. Adjustable output voltage starting from 600mV for precise voltage control.

This power management IC is ideal for industrial equipment, laboratory devices, embedded systems, and telecommunications equipment requiring stable multi-output voltage regulation with efficient power conversion.

Explore more power management solutions and DC/DC Converters on EnvMart to find compatible devices for your electronic projects and systems.
