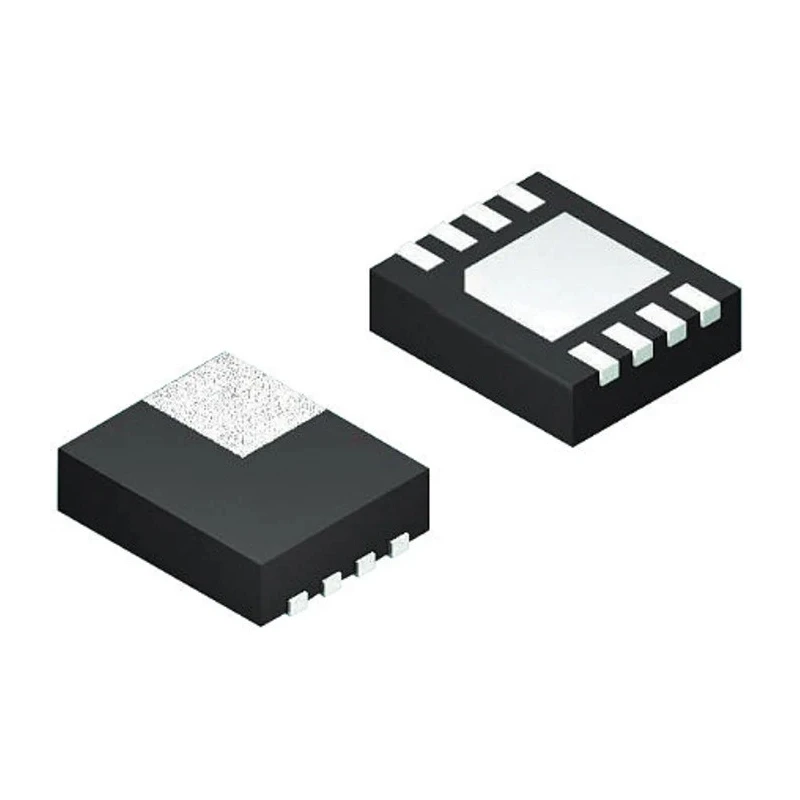

Texas Instruments 5-Channel Adjustable DC/DC Converter 6.5V Max Output, 3V Min Output, 100mA Min Output TPS61252DSGT

Texas Instruments TPS61252DSGT is a high-performance 5-channel DC/DC converter designed for efficient power management in electronic circuits. It integrates a step-up (boost) topology enabling an adjustable output voltage range from 3V to 6.5V with a minimum input voltage support starting at 2.3V and maximum up to 6V.

This converter provides output currents ranging from 100mA minimum to 1.5A maximum, making it suitable for power delivery in complex applications requiring multiple regulated outputs. Packaged in an 8-pin WSON surface mount, measuring 2.1mm by 2.1mm with a height of only 750μm, it is optimized for compact PCB layouts.

The device operates at a high switching frequency of 3.25MHz, offering improved transient response and reduced electromagnetic interference. Its operational temperature range of -40°C to 85°C ensures stable performance across industrial, automotive, and consumer electronics applications, although it is not specifically certified for automotive standards.

Compliant with RoHS directives, the TPS61252DSGT supports environmentally conscious design initiatives. Its adjustable output and multiple output channels provide flexibility for powering varied components in complex systems such as industrial control units, instrumentation, communications equipment, and laboratory instruments.

This semiconductor device is part of Texas Instruments’ renowned power management IC series aimed at delivering superior voltage regulation and energy efficiency in electronics manufacturing.

Supports a maximum output voltage of 6.5V and minimum output voltage of 3V. Accepts minimum input voltage of 2.3V and maximum input voltage of 6V for flexible power sourcing. Delivers minimum output current of 100mA and maximum of 1.5A across 5 outputs.

Features an 8-pin WSON surface-mount package with compact 2.1mm x 2.1mm dimensions and 750μm height. Maximum switching frequency is 3.25MHz ensuring efficient power conversion with low noise. Operates in a temperature range from −40°C to 85°C for reliable performance under harsh conditions.

Designed as a step-up (boost) topology with adjustable outputs suitable for custom voltage regulation needs. Complies with RoHS standards ensuring environmental safety and quality assurance. Explore additional Texas Instruments DC/DC Converters and power management ICs for precision and efficiency in your electronic designs on EnvMart.
