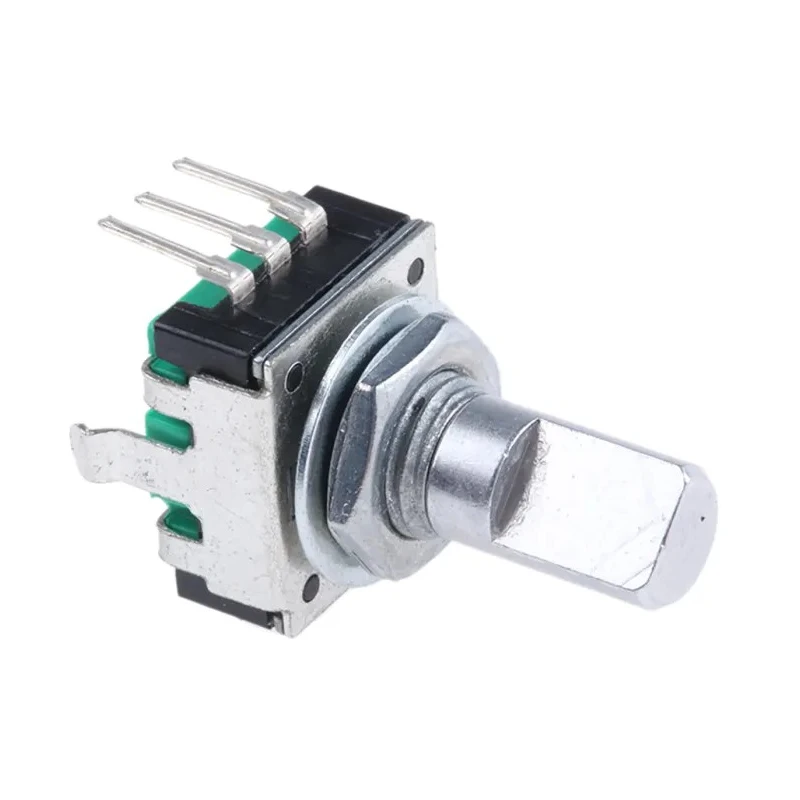

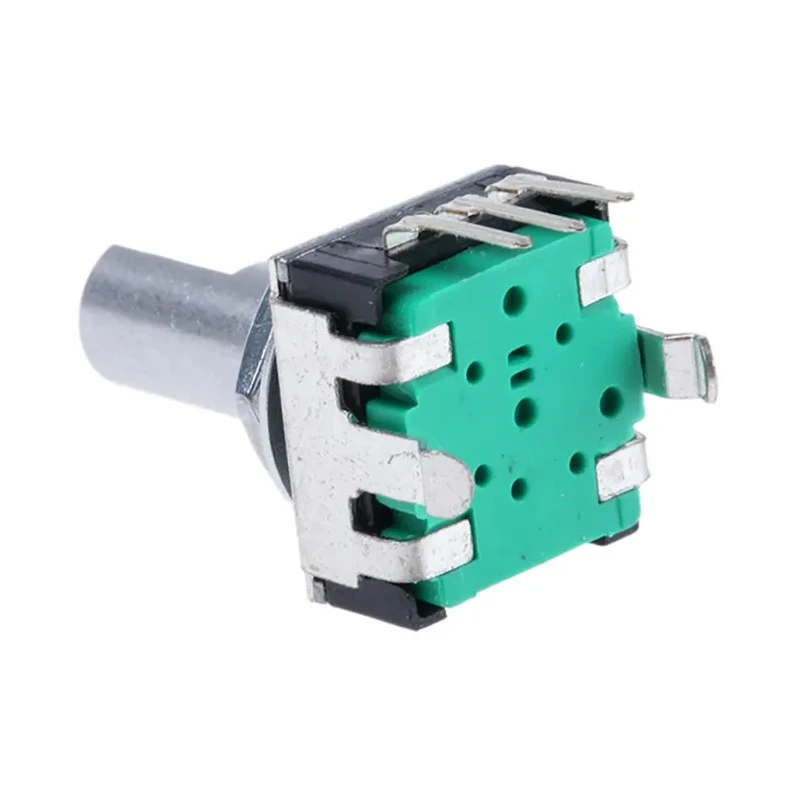

Bourns 24 ppr Pulse Incremental Mechanical Rotary Encoder with 6 mm Flat Shaft, Through Hole PEC11R-4215F-N0024

Bourns PEC11R-4215F-N0024 is a high-reliability 24 pulses per revolution incremental mechanical rotary encoder designed for precision angular position sensing in industrial, electronic, and automation equipment.

This encoder features a 6 mm diameter flat shaft with a length of 15 mm to facilitate direct coupling to rotary mechanisms. The through-hole mounting type provides reliable mechanical attachment, maintaining alignment and reducing wear during operation.

Providing incremental digital square wave signals, it enables accurate measurement of shaft rotation, ideal for applications such as motor feedback, robotics, control panels, and instrumentation. The maximum operating speed is 60 rpm, making it suitable for precise low-speed measurements.

The surface mount termination ensures straightforward integration with printed circuit boards and electronic control units. Rated for 10 mA current, this encoder complies with RoHS standards, supporting environmentally friendly manufacturing and operation.

Its mounting hole diameter of 1 mm and sturdy construction from the reputable PEC11R series ensure durability and consistent performance under typical operating conditions. As a product originating from China under the Bourns brand, it assures quality and adherence to industry standards.

This mechanical rotary encoder offers precise incremental digital square wave output at 24 pulses per revolution. Equipped with a 6 mm diameter flat shaft that is 15 mm long for secure mechanical connection. Designed for through-hole mount installation ensuring stability and durability in assemblies.

Maximum operating speed is 60 rpm, suitable for low-speed rotary sensing applications. Termination style is surface mount, enabling easy PCB integration. Encoder has a current rating of 10 mA with RoHS compliance, ensuring environmentally safe usage.

Mounting hole diameter measures 1 mm for proper mechanical fitment.

This rotary encoder is extensively used in industrial automation, electronic instrumentation, HVAC controls, robotics, and manufacturing equipment for accurate position feedback and control.
