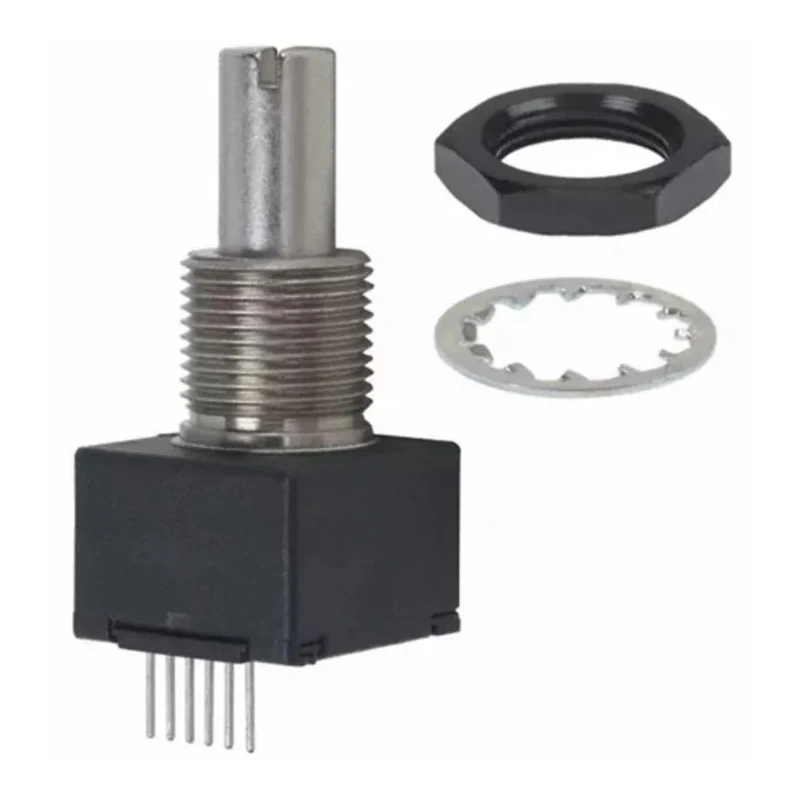

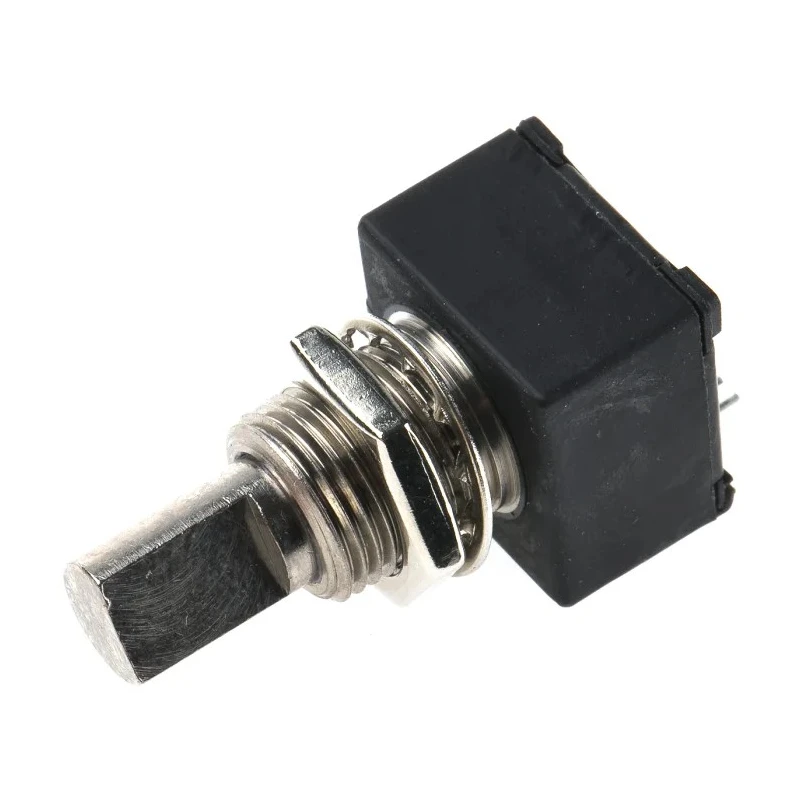

Bourns 14 mm Rotary Optical Incremental Encoder 5V dc, 64 PPR, Quadrature Signal, Flatted Shaft 6.35 mm EM14

Free Delivery in India | Lowest Global Shipping Charges

Bourns 14 mm Rotary Optical Incremental Encoder 5V dc, 64 PPR, Quadrature Signal, Flatted Shaft 6.35 mm EM14

Name: Bourns 14 mm Rotary Optical Incremental Encoder 5V dc, 64 PPR, Quadrature Signal, Flatted Shaft 6.35 mm EM14
Brand: BOURNS
SKU: 212762
Price: 36.3 USD
Availability: InStock



Category Rotary Encoder Brand BOURNS Condition New

Specifications

Country of Origin	Mexico
Brand	Bourns
Model	EM14
IP Rating	IP54
Mount Type	Panel Mount
Series	EM14
Overall Width	14.25mm
Maximum Operating Temperature	70°C
Minimum Operating Temperature	-40°C
Shaft Diameter	6.35mm
Overall height	14.76mm
Shaft Type	Flatted
Terminal type	Axial Multi Purpose Pin
Interface Type	HMI
Pulses per Revolution	64ppr
Standards/Approvals	RoHS
Maximum Supply Voltage	5V dc
Overall Depth	32.05mm
Encoder Technology	Optical
Maximum Revolutions	120rpm
Output Signal Type	Quadrature

Key Features

The encoder uses optical technology for accurate signal detection.
It provides a quadrature output signal compatible with HMI interfaces.
Constructed with a splashproof shaft seal offering IP54 protection.
Panel mount type designed for compact mechanical integration.
Operates reliably between -40°C and 70°C ambient temperatures.
Maximum rotational speed rated at 120 rpm for various automation tasks.
The device supports HCMOS, CMOS, and TTL output compatibilities.
Manufactured in Mexico assuring quality with RoHS compliance.

Product Description

Bourns EM14 Series Optical Incremental Encoder model EM14 is a compact 14 mm rotary encoder designed to provide precise incremental feedback for motion control and automation systems. It operates on a 5V dc supply voltage and emits 64 pulses per revolution with a quadrature signal output, which is ideal for position and speed sensing in human-machine interface (HMI) applications.

The flatted shaft with a diameter of 6.35 mm is equipped with a splashproof shaft seal, providing IP54 ingress protection, suitable for industrial environments requiring moderate protection against dust and moisture. This encoder's maximum rotational speed is 120 rpm, ensuring reliable performance for various automation and control tasks.

The encoder supports HCMOS, CMOS, and TTL signal compatibility, allowing easy integration with modern digital electronics. Its compact panel mount design with axial multi-purpose pin terminals simplifies installation into existing control panels or machinery.

Operating temperature ranges from -40°C to 70°C, making it robust for diverse environmental conditions. The encoder is RoHS compliant and manufactured in Mexico, ensuring adherence to environmental and quality standards.

The encoder uses optical sensing for enhanced precision and durability. Quadrature signal output enables accurate position and speed detection. Compact design with IP54 rated splashproof sealing suits industrial conditions.

Operating temperature range supports deployment in harsh environments. Panel mount form factor facilitates easy integration. Compatible with HCMOS, CMOS, and TTL logic interfaces. Durable flatted shaft of 6.35 mm supports mechanical coupling.

Manufactured in Mexico with RoHS certification assures quality and compliance.

Bourns EM14 Series Optical Incremental Encoder is recommended for precision control applications in industrial automation, manufacturing equipment, instrumentation, and human-machine interfaces (HMI). Browse EnvMart's extensive range of Rotary Encoders and motion control sensors for compatible products and accessories.
