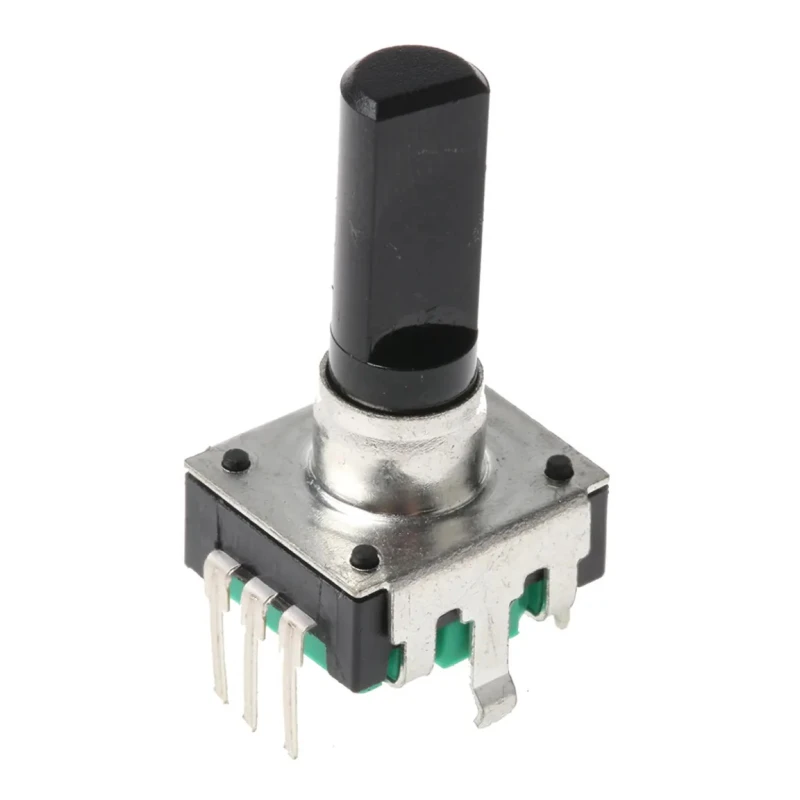

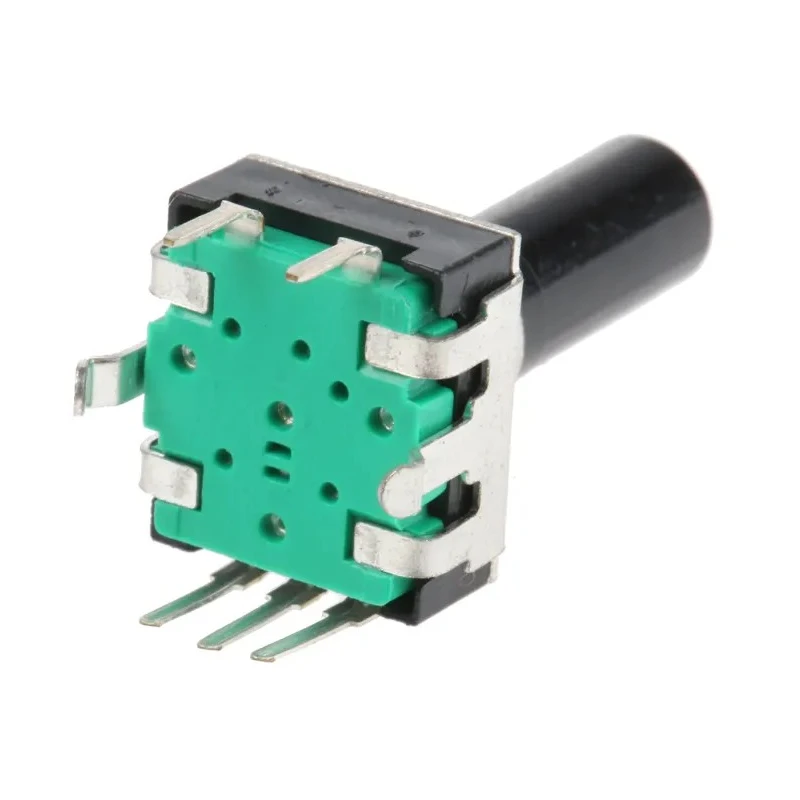

Bourns 24 ppr Pulse Incremental Mechanical Rotary Encoder with 6 mm Flat Shaft, Through Hole PEC12R-4225F-S0024

Bourns PEC12R-4225F-S0024 is a high-precision 24 pulses per revolution incremental mechanical rotary encoder designed for various electronic applications. It features a 6 mm diameter flat shaft with a 25 mm length, mounted through a hole with a 1 mm diameter, providing robust mechanical coupling and reliable signal output.

This encoder produces digital square wave signals representing incremental movement, making it suitable for controlling tuning, levels, and timer settings in audio-visual equipment, musical instruments, radios, and other consumer electronic devices.

The product is RoHS compliant and supports a 10 mA current rating with surface mount termination style, ensuring durability and adherence to environmental regulations. The maximum operating speed is 100 rpm, supporting efficient performance in dynamic applications.

Being part of the PEC12R series, this compact encoder emphasizes reliability and versatility for industrial, audio, communications, and consumer appliance use cases. Operates at up to 100 rpm with stable digital square wave output.

Compact 6 mm flat shaft designed for precise mechanical connections. Through hole mount type with 1 mm mounting hole diameter for secure assembly. RoHS compliant with surface mount termination ensuring environmental safety.

Current rating of 10 mA suitable for standard low-current circuits. Used in applications such as audio-visual equipment, consumer electronics, and communications. Part of the reliable PEC12R 12 mm incremental encoder series.

The product is manufactured in China and is available for various industrial and commercial electronic applications. Browse our complete range of Rotary Encoders and sensors to find compatible devices for your projects on EnvMart.
