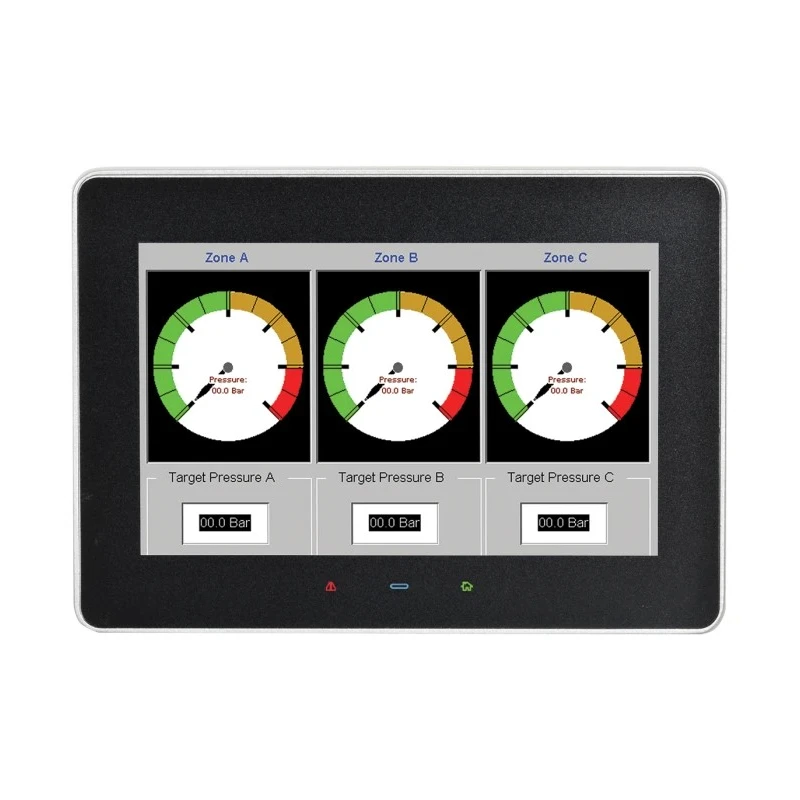

Red Lion Programmable Series Touch Screen HMI - 177.8 mm TFT Display 800 x 480 pixel G07C0000
Specifications
| Country of Origin | United States |
|---|---|
| Display Type | TFT |
| Display | touchscreen |
| Brand | Red Lion |
| Length | 195.5mm |
| Model | G07C0000 |
| Depth | 50.8mm |
| IP Rating | IP66 |
| Width | 139.9mm |
| Series | Programmable |
| Number Of Ports | 7 |
| Display Resolution | 800 x 480 pixel |
| Maximum Operating Temperature | 60°C |
| Port Type | COM, RS232, 2 x USB, Ethernet, NIC, PGM, RS485, USB B |
| Minimum Operating Temperature | -20°C |
| Interfaces | Ethernet port |
| Hazardous Area Certification | ATEX |
| Standards/Approvals | UL |
| Diagonal Display Size | 177.8mm |
Key Features
- Features a 7-inch WXGA color touchscreen for clear and accurate display.
- Supports up to 20 simultaneous protocol conversions for versatile connectivity.
- Equipped with multiple communication ports including Ethernet, USB, COM, RS232, and RS485.
- Robust cast-aluminium construction with IP66 rating for protection in industrial environments.
- Operates within a temperature range from -20°C to 60°C for reliable performance.
- Includes 5 module slots for easy expansion of I/O capabilities.
- Provides OPC UA client and historical access for streamlined industrial communication.
- Uses Crimson 3.0 software enabling easy drag-and-drop programming.
Product Description
Red Lion G07C0000 Programmable Series Touch Screen HMI features a 177.8 mm diagonal TFT touchscreen display with an 800 x 480 pixel resolution, designed to provide versatile and reliable industrial automation control.
This advanced operator panel incorporates a durable cast-aluminium enclosure rated IP66, ensuring protection against dust and water ingress suitable for harsh industrial environments. It operates effectively between -20°C and 60°C, enabling use in a wide range of applications.
The HMI includes 7 communication ports comprising Ethernet, COM, RS232, RS485, USB B, and high-retention USB host ports, facilitating comprehensive connectivity options and allowing up to 20 simultaneous protocol conversions. The design supports easy expansion via five dedicated module slots for plug-in I/O modules.
Equipped with Crimson 3.0 programming software, the panel allows intuitive drag-and-drop programming. Industrial protocols such as OPC UA client support and historical access enable seamless integration into modern automation systems. Real-time data logging on SD card combined with web server and FTP remote access enhances monitoring and data management capabilities.
Certified with UL and ATEX approvals, the device is suitable for use in hazardous zones, making it a trustworthy solution for industrial, manufacturing, and process control applications. This HMI supports high shock and vibration tolerance ensuring sustained operation in demanding conditions.
7-inch WXGA colour touchscreen (800x480 pixels) offers excellent display clarity. Supports up to 20 simultaneous protocol conversions for diverse connectivity. Includes 7 ports: COM, RS232, 2 × USB, Ethernet, NIC, PGM, RS485, USB B.
Durable cast-aluminium construction with IP66 rating for industrial protection. Operating temperature range from -20°C to 60°C. Five module slots for I/O expansion with plug-in modules. OPC UA client driver and historical access for industrial communication.
Crimson 3.0 software enables easy drag-and-drop programming. Email and SMS alarm notifications enhance monitoring capabilities. Real-time data logging with SD card and remote access via web server and FTP. Certified to UL, ATEX, and IECEx Zone 2/22 standards for hazardous environments.
This Red Lion Touch Screen HMI is ideal for industrial automation, manufacturing process control, HVAC systems, and water treatment monitoring. It offers robust performance and flexible connectivity, supporting complex control scenarios in commercial and industrial settings.
