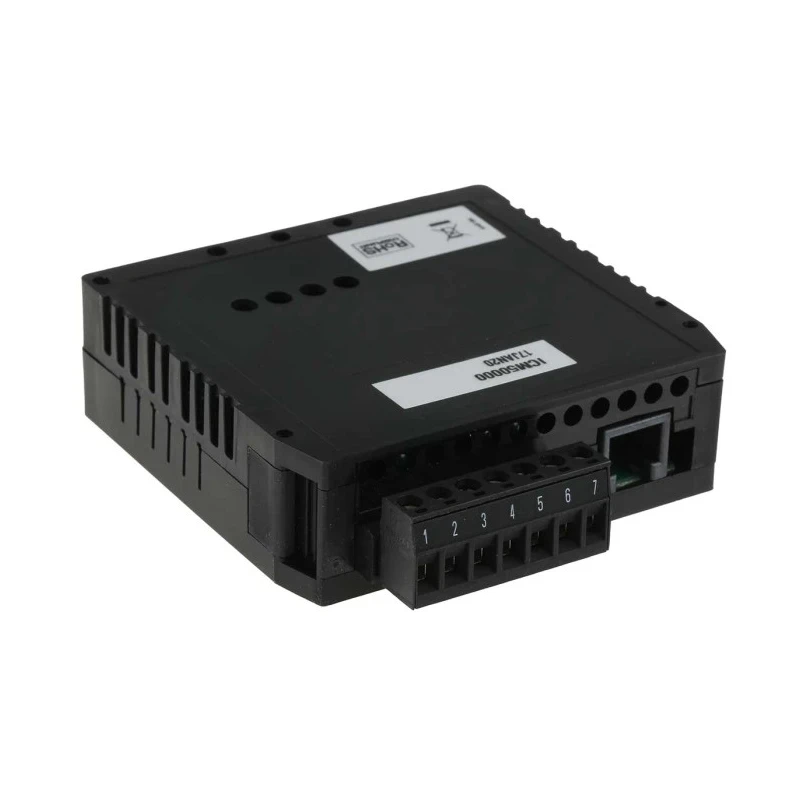

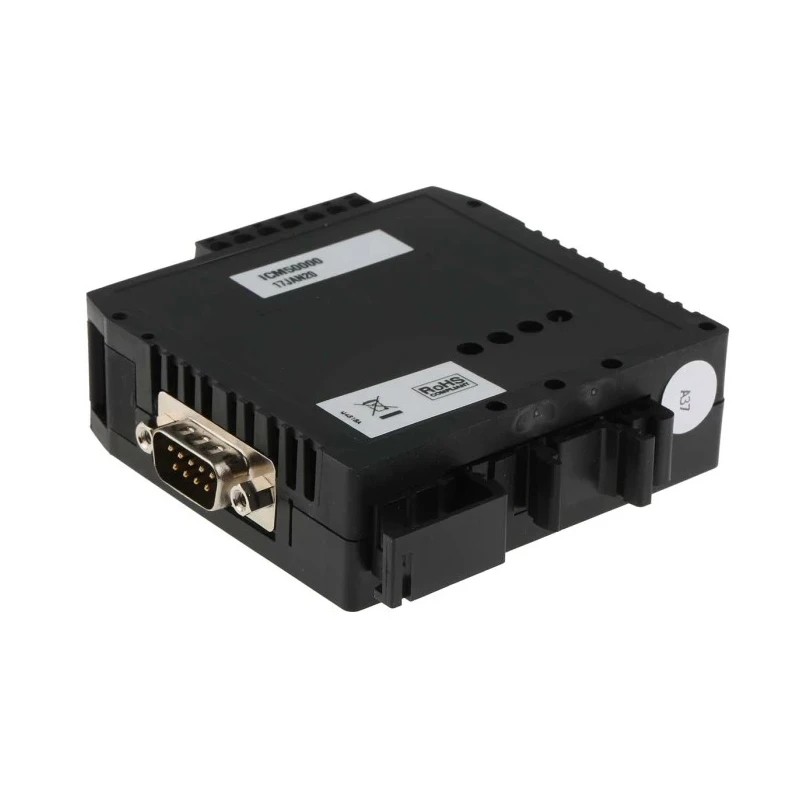

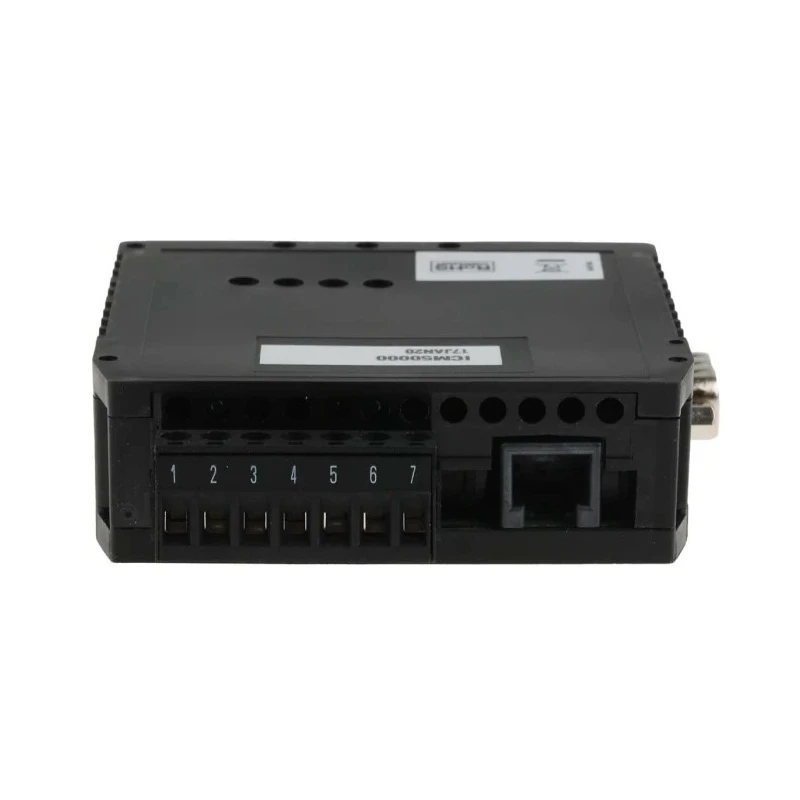

Red Lion 3RS7003 Series Signal Conditioner RS232 Input to RS485 RS422 Output Converter 26V 9V dc

Free Delivery in India | Lowest Global Shipping Charges

Red Lion 3RS7003 Series Signal Conditioner RS232 Input to RS485 RS422 Output Converter 26V 9V dc

Name: Red Lion 3RS7003 Series Signal Conditioner RS232 Input to RS485 RS422 Output Converter 26V 9V dc
Brand: Red Lion
SKU: 330859
Price: 336.18 USD
Availability: InStock



Category Signal Conditioners Brand Red Lion Condition New

Specifications

Country of Origin	United States
Brand	Red Lion
Model	RS232
Mount Type	DIN Rail
Maximum Cable Length	RS232: 15 m, RS485: 1200 m
Series	3RS7003
Maximum Operating Temperature	50°C
Minimum Operating Temperature	0°C
Converter	RS232 to RS485 / RS422
Number Of Channels	1
Input Range	+9 → 26 VDC
Supply Voltage	26, 9V dc
Input Signal Type	RS232
Output Signal Type	RS485, RS422
Signal Conditioner Type	Converter
Advantech Signal ConditionerBrand	Advantech

Key Features

Supports RS232 input signal and RS485, RS422 output signals.
Galvanic isolation up to 1000 Vdc ensures signal integrity and safety.
Equipped with 9-pin SUB-D connector for RS232 and RJ11 or terminal strip for RS485/RS422.
Automatic RS485 send/receive control with no handshaking required.
Compatible with both half duplex RS485 and full duplex RS422 communications.
Features 3 LEDs indicating RXD, TXD, and voltage supply status.
Simple DIN rail mounting suitable for industrial automation setups.
Operates reliably from 0°C to 50°C ambient temperature.

Product Description

Red Lion ICM50000 3RS7003 Series Signal Conditioner is a robust and reliable converter designed for industrial automation and signal conditioning applications. It converts RS232 input signals to RS485 and RS422 output formats with galvanic isolation up to 1000 Vdc, ensuring high signal integrity and protection against electrical noise.

This device operates on a 9 V and 26 V dc power supply and includes connectors optimized for easy installation: a 9-pin SUB-D connector for RS232 input and an RJ11 connector or terminal strip for RS485/RS422 output. The automatic RS485 send/receive control eliminates the need for manual handshaking, simplifying communications management.

Supporting both half duplex RS485 and full duplex RS422 protocols, this signal conditioner can be easily integrated into complex data transmission systems. It provides operational status via three LEDs for RXD, TXD, and power supply indication, aiding in quick diagnostics and maintenance.

The device mounts conveniently on DIN rails and is rated for operation in ambient temperatures ranging from 0°C to 50°C. It supports cable lengths of up to 15 meters for RS232 and 1200 meters for RS485, accommodating extensive industrial setups. Furthermore, it can manage up to 32 RS485 receivers connected in parallel, enabling scalability in communication networks.

Supports RS232 input and RS485/RS422 output signals. Provides galvanic isolation up to 1000 Vdc for noise immunity. Automatic RS485 send/receive control eliminates handshaking. 3 status LEDs for RXD, TXD, and power supply indication.

Mounts on standard DIN rail for industrial installations. Operates from 0°C to 50°C for versatile environments. Maximum RS232 cable length of 15 meters. Maximum RS485 cable length of 1200 meters. Supports up to 32 parallel RS485 receivers.

This Red Lion 3RS7003 Signal Conditioner is ideal for industrial automation, manufacturing, and instrumentation applications requiring reliable signal conversion and robust communication over long distances. It offers compliance with multiple industry standards ensuring quality and interoperability.
