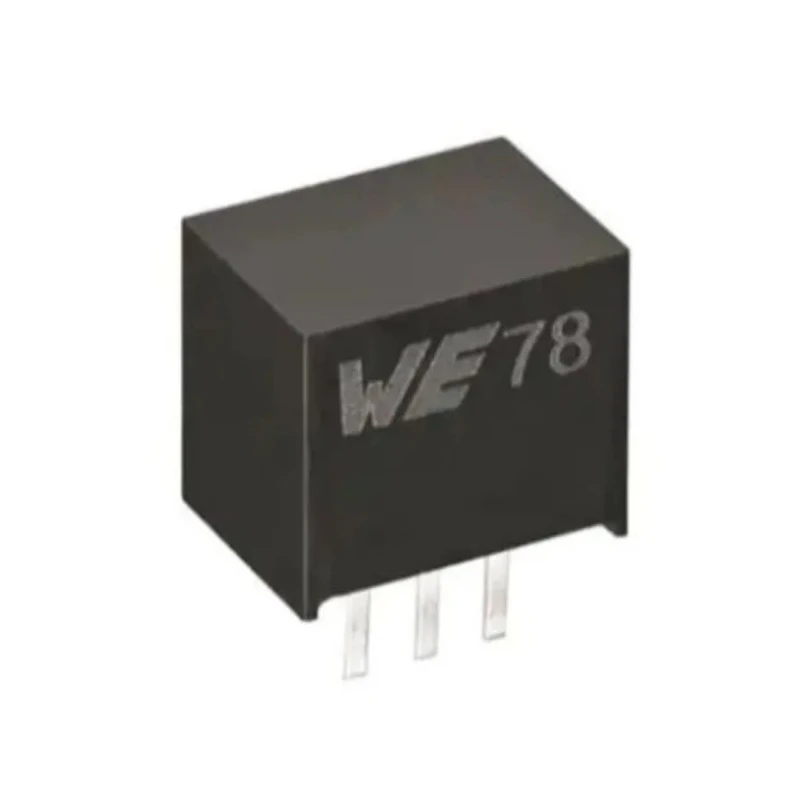

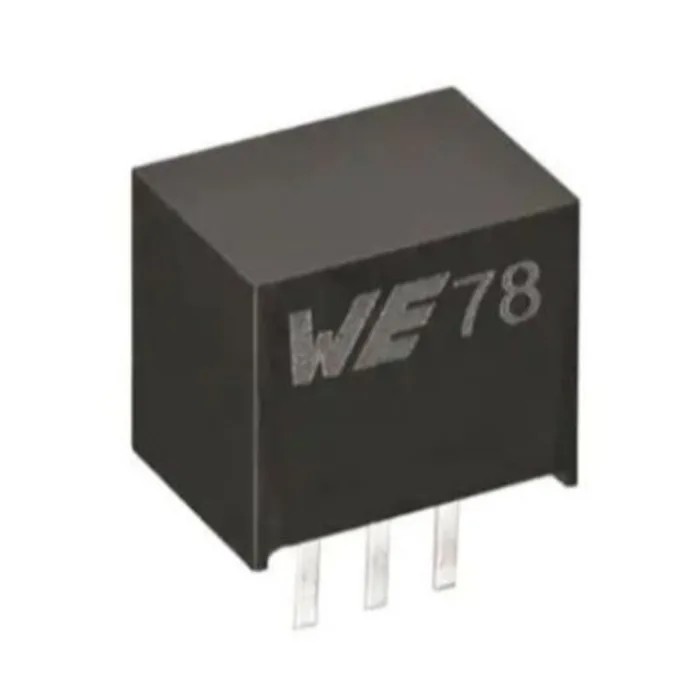

Wurth Elektronik 5-Channel Fixed DC/DC Converter 5V 3.3V 500mA 3-Pin SIP 173950536

Wurth Elektronik 173950536 is a 5-channel fixed DC/DC converter designed for efficient and reliable power management in electronic circuits. It provides fixed output voltages of 5V and 3.3V with a minimum output current of 500mA, suitable for a wide range of industrial and electronic applications.

This converter employs a step-down topology allowing it to efficiently convert higher input voltages, between 4.75V up to 36V, down to stable and accurate lower voltages. With a high switching frequency of up to 710kHz, it delivers fast transient response and improved output ripple characteristics.

The device is housed in a small SIP package with through-hole pins, measuring 10.4mm long, 11.6mm wide, and 8mm tall, making it appropriate for compact PCB designs where space and thermal management are concerns. It is engineered to operate reliably in a broad temperature range from -40°C to 85°C.

Key protective features like thermal shutdown and short-circuit protection ensure operational safety and longevity. This component is fully RoHS and REACh compliant, meeting environmental standards prominent in electronics manufacturing.

This converter is ideal for use in industrial electronics, power management IC designs, and embedded systems requiring fixed multi-output DC voltage supplies. Developers can leverage it to integrate a fully functional power module with integrated capacitors and inductor, simplifying their PCB designs and improving system efficiency.

This converter features a step-down topology for efficient power regulation. It supports input voltages ranging from 4.75V to 36V. The device has a maximum switching frequency of 710 kHz ensuring fast response. Mount type is through hole with a compact SIP package.

Operating temperature range is from -40°C to 85°C for wide application compatibility. The converter includes integrated inductor and capacitors for ease of design. Built-in protections include thermal shutdown and short-circuit protection.

Dimensions are 10.4mm length, 11.6mm width, and 8mm height, suitable for compact PCB layouts. The device is RoHS and REACh compliant supporting environmental regulations. Explore more DC/DC Converters and power management ICs from Wurth Elektronik at EnvMart for robust and reliable power solutions.
