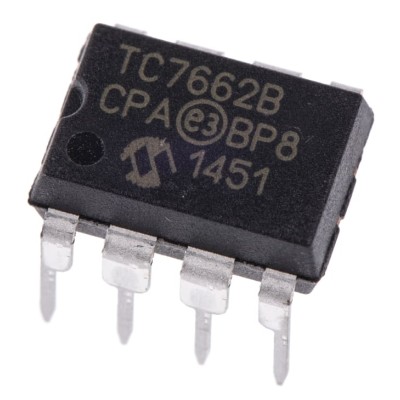

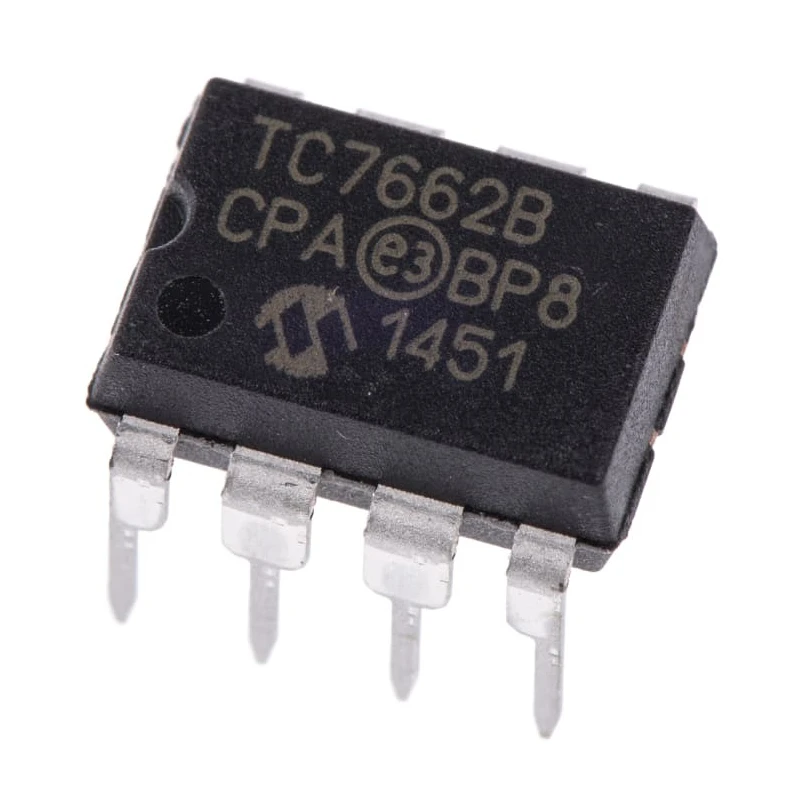

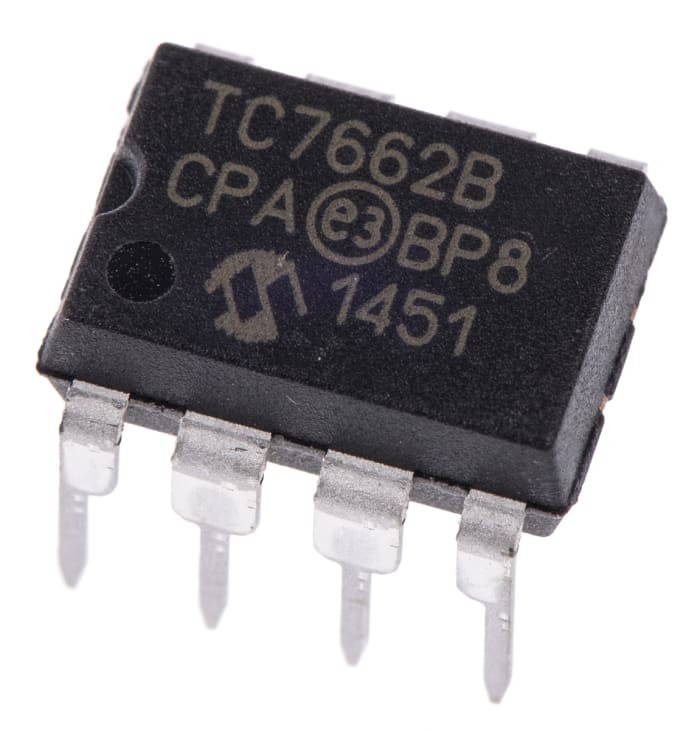

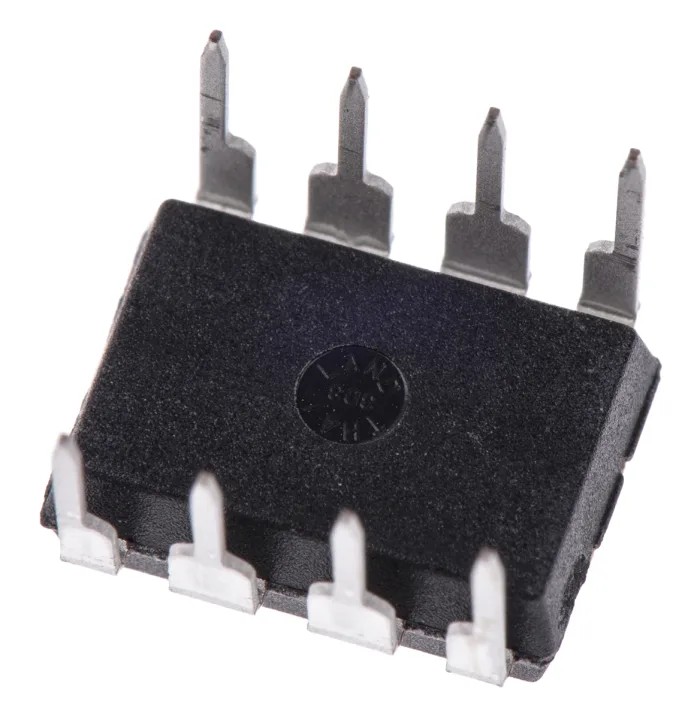

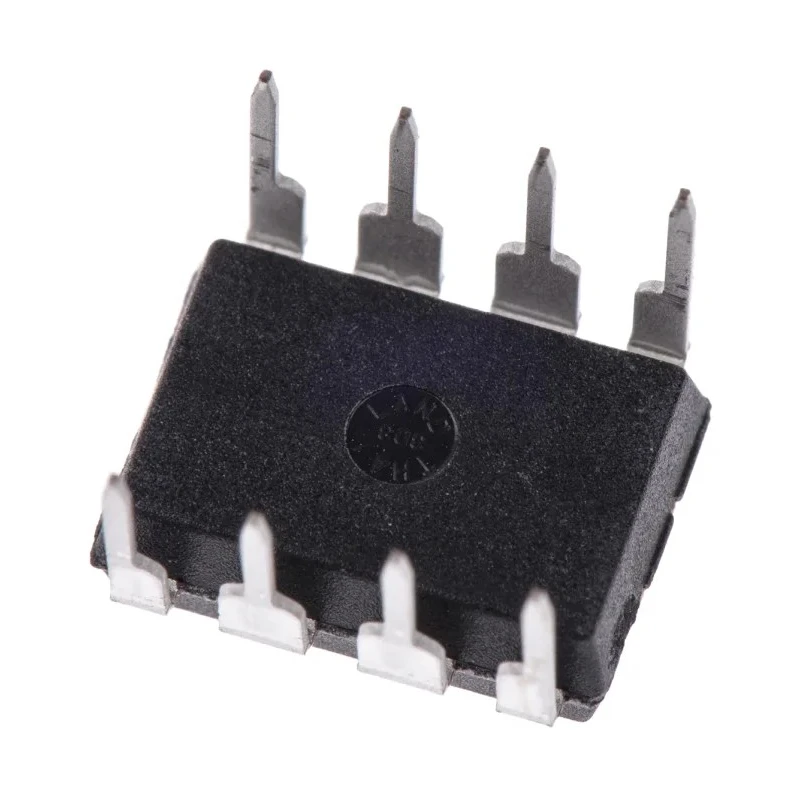

Microchip 5-Channel Inverting DC/DC Converter 8-Pin PDIP 1.5V to 15V 20mA TC7662BCPA
Specifications
| Country of Origin | India |
|---|---|
| Brand | Microchip |
| Height | 4.06mm |
| Length | 10.16mm |
| Model | TC7662BCPA |
| Width | 6.6mm |
| Mount Type | Through Hole |
| Series | TC7662B |
| Topology | Inverting |
| Maximum Operating Temperature | 70°C |
| Package Type | PDIP |
| Minimum Operating Temperature | 0°C |
| Number of outputs | 5 |
| Maximum Switching Frequency | 35kHz |
| Maximum Output Voltage | 15V |
| Minimum Input Voltage | 1.5V |
| Pin Count | 8 |
| Minimum Output Current | 20mA |
Key Features
- The converter supports a maximum switching frequency of 35kHz.
- The device is designed for through-hole mounting.
- Operating temperature ranges from 0°C to 70°C.
- The compact package dimensions are 10.16mm length, 6.6mm width, and 4.06mm height.
- It utilizes charge pump topology for DC-to-DC voltage conversion.
- This product is part of the TC7662B series known for reliable power management.
- The 8-pin PDIP packaging facilitates easy integration into various electronic circuits.
- It is RoHS compliant and designed for new condition utilization.
Product Description
Microchip TC7662BCPA is a high-performance 5-channel inverting DC/DC converter designed for efficient power management in electronic circuits. Featuring an 8-pin PDIP package, it supports an input voltage range from 1.5V to 15V and delivers a maximum output voltage of 15V with an output current of up to 20mA.
This converter operates at a maximum switching frequency of 35kHz, employing a charge pump topology, which enables compact design without inductors. Its through-hole mount type eases assembly and prototyping procedures.
The operating temperature range of 0°C to 70°C makes it suitable for diverse environments, including industrial and commercial electronic applications. The compact physical dimensions of length 10.16mm, width 6.6mm, and height 4.06mm offer space-efficient design options for engineers working on PCB layouts.
This DC/DC converter is ideal for applications requiring voltage inversion and channel multiplexing in power supply units for industrial, laboratory, communication equipment, and consumer electronics.
The TC7662B series is reputable for its reliability in managing multiple DC voltage outputs efficiently, contributing to improved production efficiency when integrated into machinery.
The converter supports a maximum switching frequency of 35kHz. It utilizes an inverting topology charge pump for voltage conversion. Package type is 8-pin PDIP suited for through-hole mounting. Operating temperature range is from 0°C to 70°C.
Physical dimensions are 10.16mm length, 6.6mm width, and 4.06mm height. Maximum output voltage capacity of 15V. Minimum input voltage supported is 1.5V. Maximum output current is 20mA, suitable for low power applications.
Discover more power management integrated circuits and DC/DC Converters on EnvMart for industrial and commercial electronics projects.
