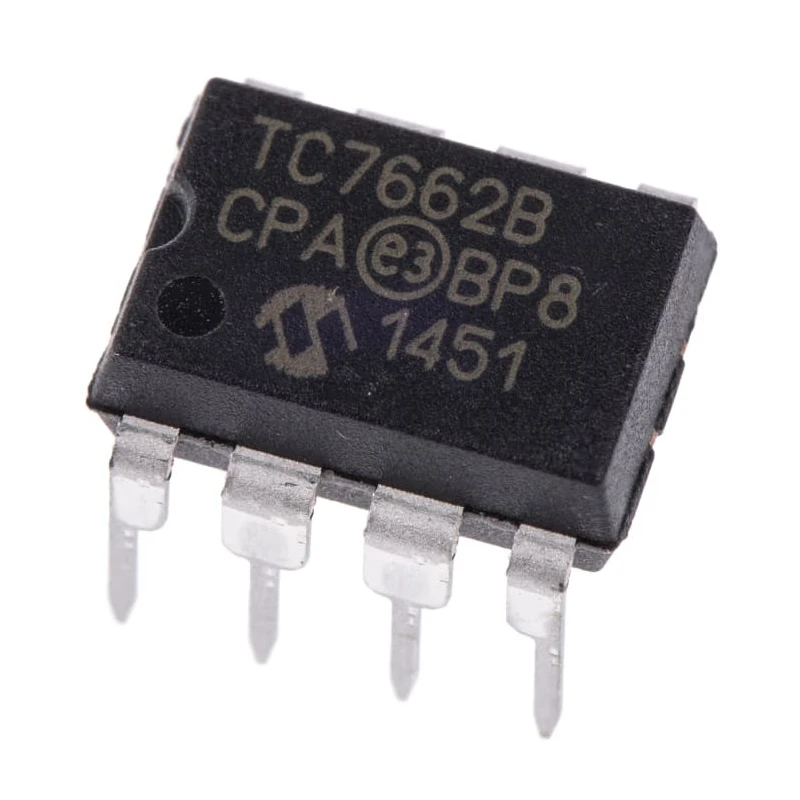

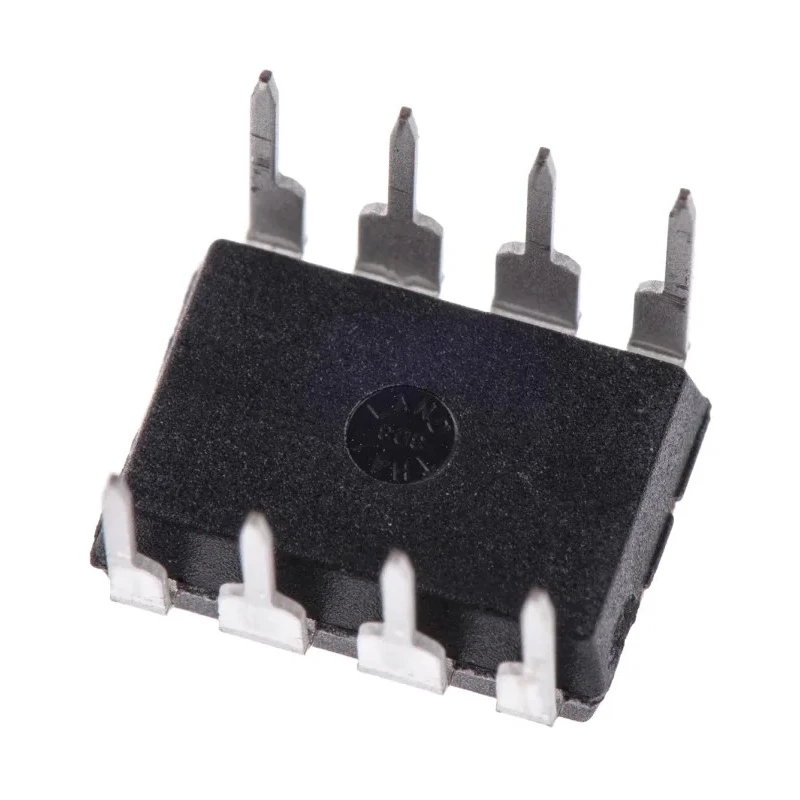

Microchip 5-Channel Inverting DC/DC Converter 1.5 V to 15 V Output, 20 mA, 8-Pin PDIP TC7662BCPA

Microchip TC7662BCPA is a 5-channel inverting DC/DC converter designed for power management in electronic components and semiconductor applications. It operates with a minimum input voltage of 1.5 V extending up to a maximum input of 15 V and provides a maximum output voltage of 15 V. Configured in an 8-pin PDIP package, this device supports a minimum output current of 20 mA.

Operating within a temperature range of 0°C to 70°C, the converter is built to deliver efficient power conversion while maintaining stable operation in various industrial and commercial electronic environments. The inverting topology is advantageous for charge pump DC-to-DC conversion, helping in applications where voltage polarity inversion is necessary.

The maximum switching frequency of 35 kHz ensures effective power regulation while consuming minimal space on printed circuit boards thanks to its through-hole mounting and compact physical dimensions of 10.16 mm length, 6.6 mm width, and 4.06 mm height.

This product belongs to the TC7662B series by Microchip, well regarded in power management IC solutions. It is ideal for industrial, laboratory, manufacturing, and commercial electronic systems requiring multiple DC voltage outputs from a single input source.

Provides a maximum output voltage of 15 V. Accepts input voltage range from 1.5 V to 15 V. Delivers a minimum output current of 20 mA. Operates at a maximum switching frequency of 35 kHz. 8-pin PDIP package type with through-hole mount.

Operating temperature range from 0°C to 70°C. Compact size 10.16 x 6.6 x 4.06 mm (LxWxH). Inverting topology suitable for charge pump DC/DC conversion. Part of Microchip's TC7662B series for reliable power conversion. Ideal for industrial and commercial electronics use cases.
