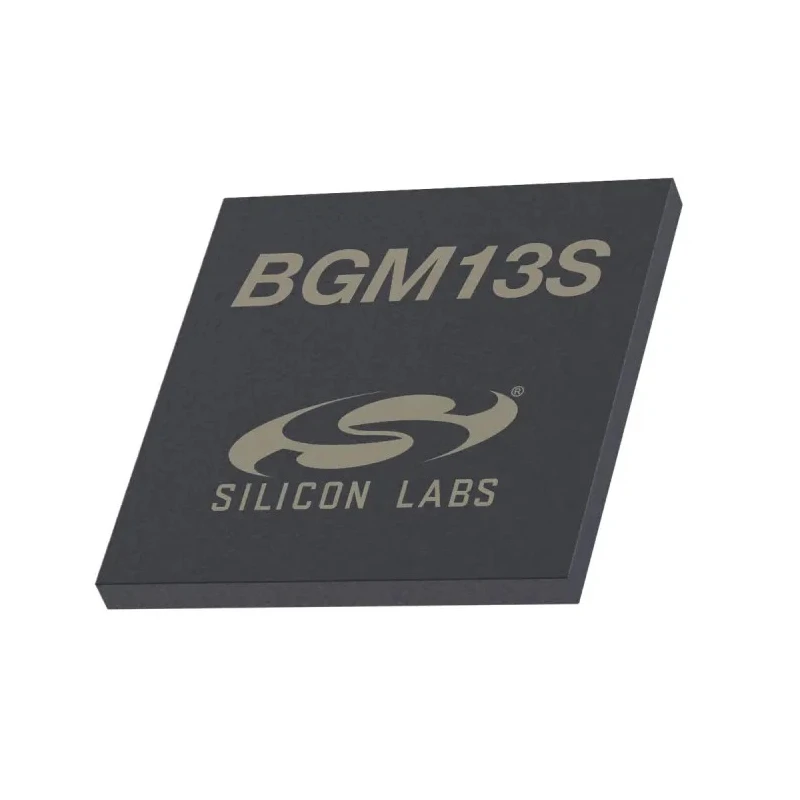

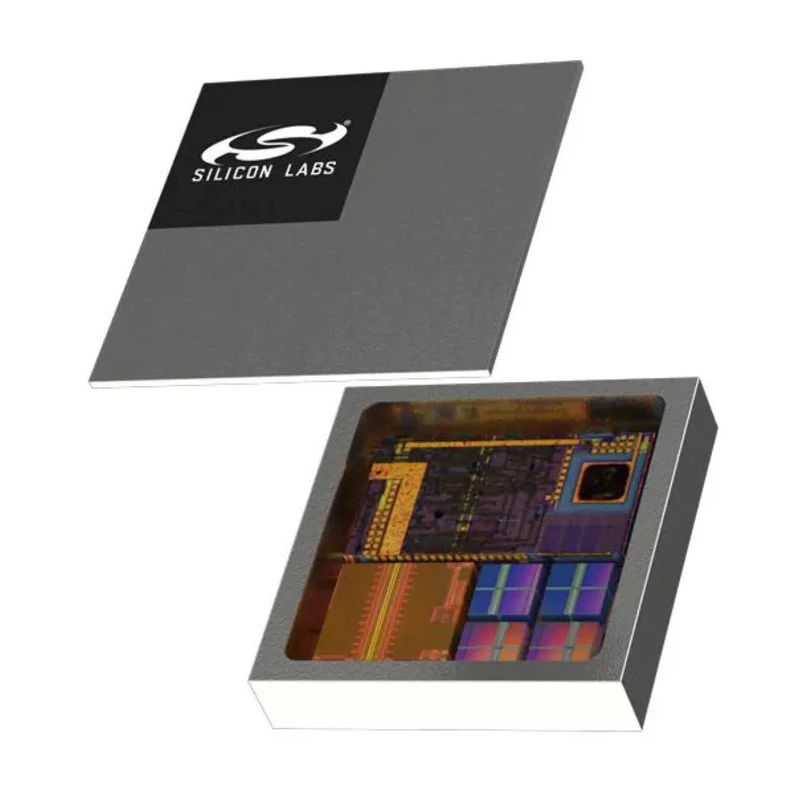

Silicon Labs Bluetooth Module BGM13S22F512GA-V3 5.0, 2.4GHz, 2Mbps Data Rate, 1.8-3.8V Supply Voltage BGM13S22F512GA-V3

Silicon Labs BGM13S22F512GA-V3 Bluetooth Module 5.0 is a highly integrated wireless solution designed to add Bluetooth Low Energy (BLE) and Bluetooth mesh capabilities to a variety of electronic designs. Operating at 2.4GHz with a data throughput of 2Mbps, this module provides robust connectivity with low power consumption, suitable for industrial, commercial, and consumer applications.

This module supports Bluetooth 5 LE features, achieving high throughput rates and extended range communications with Class 3 output power of 8dBm. Its compact size, measuring 6.5mm by 6.5mm with a height of only 1.4mm, allows integration into space-constrained devices. Operating over a temperature range of -40°C to +85°C, it is well suited for demanding environmental conditions.

The BGM13S22F512GA-V3 module includes a precision low-frequency oscillator that meets BLE sleep clock accuracy requirements and negates the need for an external crystal, facilitating simpler designs and lower component counts. Its built-in antenna and required external components eliminate the need for RF design expertise, enabling rapid product development and faster time to market.

It supports both stand-alone and network co-processor (NCP) modes, allowing developers to either manage Bluetooth functionality independently or offload processing to an external host. With a total PCB area requirement of only 51 mm² including antenna clearance, this module is optimized for compact circuit layouts.

Additionally, this Bluetooth module offers sub-1 meter location accuracy through Bluetooth 5.1 angle of arrival (AoA) technology, ideal for precision asset tracking and indoor navigation applications. The module is compatible with Silicon Labs’ industry-proven certified stacks and development tools, providing a comprehensive development ecosystem.

Typical use cases include Internet of Things (IoT) devices, smart home products, industrial automation communication, and health and fitness trackers. The robust receiver sensitivity of -102.1 dBm ensures reliable reception even in challenging radio environments.

Set contents consist of a single BGM13S22F512GA-V3 Bluetooth Module. This product adheres to the new condition standard and is sourced from India. Explore more Bluetooth Modules and Semiconductor components at EnvMart to find solutions tailored to your technology requirements.

Supports Bluetooth 5.0 with Class 3 output power specification. Data rate up to 2Mbps enables fast communication. Compact form factor with dimensions 6.5mm x 6.5mm x 1.4mm. Wide operating temperature range from -40°C to 85°C.

Includes built-in antenna and required external components for ease of design. Supports both stand-alone and network co-processor modes. Sub-1 meter location accuracy enabled by Bluetooth 5.1 AoA feature. Low power consumption with supply voltage from 1.8V to 3.8V.

Compatible with Silicon Labs certified stacks and tools for rapid development. Requires only 51 mm² PCB area, including antenna clearance.
