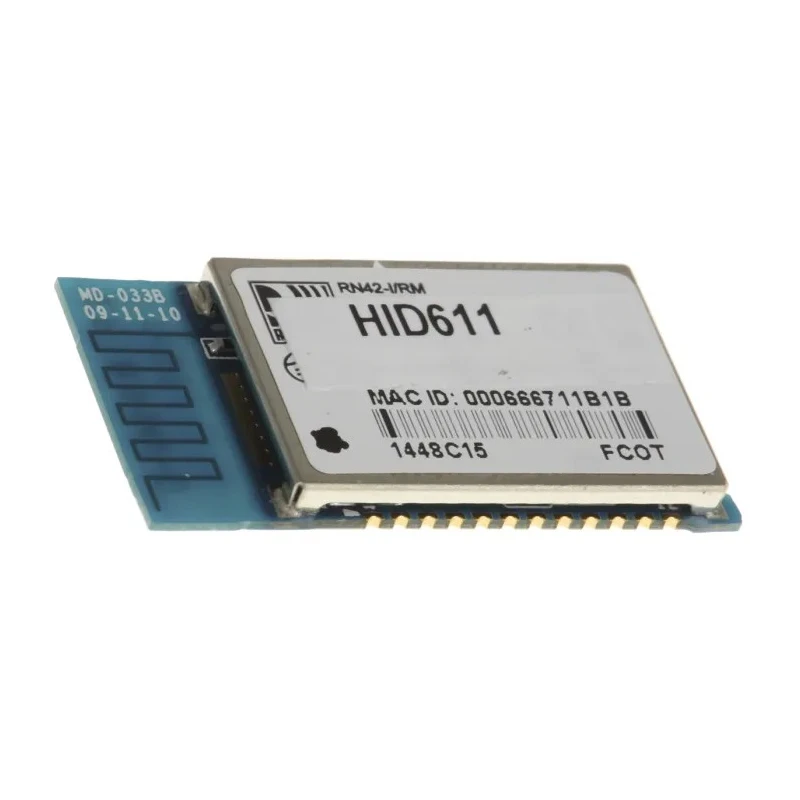

Microchip RN42HID-I/RM Bluetooth Chip 2.1 UART Interface Class 2 Module 3V-3.6V Thailand RN42HID-I/RM

Microchip RN42HID-I/RM Bluetooth Chip 2.1 is a compact, Class 2 Bluetooth module equipped with UART communication interface and an extended Human Interface Device (HID) profile. Operating with Bluetooth version 2.1 + EDR, it ensures backward compatibility with Bluetooth 2.0, 1.2, and 1.1, delivering robust wireless communication at 3Mbps data rate.

This Bluetooth chip operates at a voltage range of 3.0V to 3.6V and is designed to function reliably across a wide temperature span from -40°C to +85°C, making it suitable for demanding industrial, medical, and commercial environments. The module measures 25.8mm in length, 13.4mm in width, and has a slim height of 2mm, facilitating easy integration into compact device designs.

Equipped with an embedded Bluetooth stack supporting GAP, SDP, RFCOMM, L2CAP protocols along with Serial Port Profile (SPP) and HID profiles, the RN42HID-I/RM caters specifically to human interface devices like keyboards, mice, game controllers, and multimedia devices.

The chip also supports three operational modes: Presenter Mode for controlling software like Microsoft PowerPoint; Custom Mode which allows programming pushbuttons to send sequences of keystrokes; and Music Mode to control media playback functions such as play, pause, track switching, and volume control. These modes expand its capabilities to a variety of user interface applications.

Additional RF features include GFSK modulation with frequency hopping spread spectrum (FHSS), a maximum output power of +4dBm, and a receiver sensitivity of -86dBm, ensuring reliable data transmission over the standard 2.4GHz ISM band with 79 channels.

Host communication is facilitated via a serial UART interface with RTS/CTS flow control, enhancing data flow reliability. The module’s compact PCB antenna further supports high-quality wireless performance.

This Bluetooth chip is ideal for applications such as cable replacement, barcode scanners, industrial sensors and controls, medical devices, and remote controls. Manufactured in Thailand, the RN42HID-I/RM combines flexibility and robust wireless connectivity in a small form factor.

Explore more Bluetooth Modules and solutions on EnvMart for your wireless communication and integration needs. Supports Bluetooth version 2.1 with Enhanced Data Rate. Class 2 Bluetooth module with a range suitable for typical wireless applications.

Operates from 3V to 3.6V supply voltage for flexible power management. Dimensions are compact at 25.8mm length, 13.4mm width, and 2mm height. Embedded Bluetooth stack including GAP, SDP, RFCOMM, L2CAP, SPP, and HID profiles.

Receiver sensitivity of -86dBm and maximum output power of 4dBm ensures RF performance. Multiple operating temperature range from -40°C to 85°C for industrial use. Offers Presenter, Custom, and Music modes enabling device programmability and multimedia control.

Serial UART interface with RTS/CTS flow control for reliable host communication. Ideal for industrial sensors, medical devices, remote controls, and barcode scanners.
