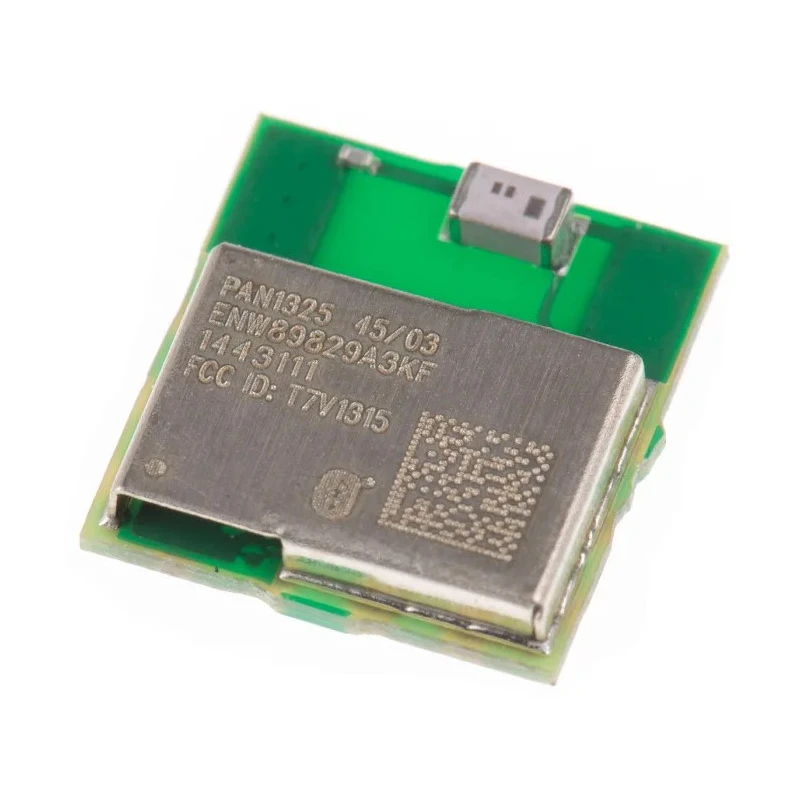

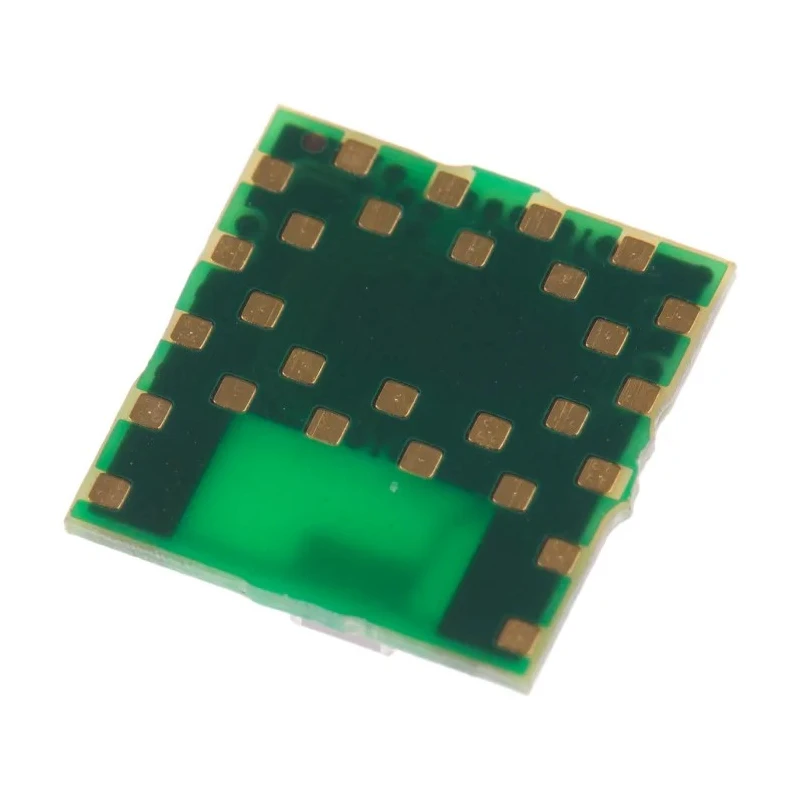

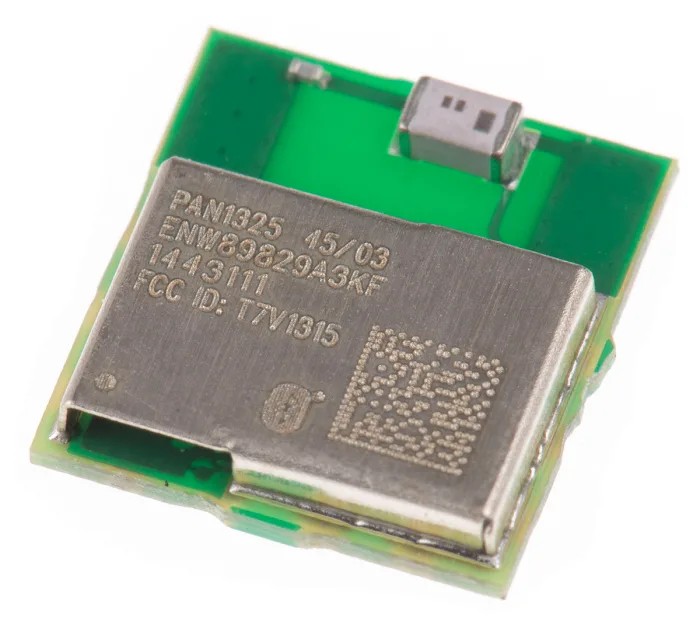

Panasonic Bluetooth Chip Class 2 Version 2.1 with HCI UART Interface PAN1325B-HCI-85

Panasonic PAN1325B-HCI-85 Bluetooth Chip is a Class 2 Bluetooth communication module with Bluetooth version 2.1 supporting Enhanced Data Rate (EDR). It integrates Texas Instruments' 7th generation CC2560 controller enabling advanced wireless data transmission capabilities suitable for industrial, commercial, and consumer electronics applications.

This Bluetooth chip supports multiple interface types including HCI UART, 3 Wire, 4 Wire, I2S, and PCM, providing versatile connectivity options for audio and data communications. Operating frequency is centered at 2.48 GHz with a data rate of 2178 kbps, offering efficient and reliable wireless communication.

Designed for robust operation, the chip functions within a broad supply voltage range of 1.7 V to 4.8 V and endures operating temperatures from -20°C to 70°C, making it ideal for various environmental conditions in manufacturing, automation, and wireless networking.

The module’s compact dimensions of approximately 9.5 mm length, 9 mm width, and 1.8 mm height facilitate space-constrained applications, and the integrated Bluetooth controller ensures compatibility with diverse industry Bluetooth profiles such as Serial Port Profile (SPP), Health Device Profile (HDP), and Audio.

Additional technical advantages include a receiver sensitivity of -93 dBm for signal fidelity and support for low power scan modes, making it energy efficient while maintaining extended transmission range capabilities.

Operates on Bluetooth version 2.1 with Enhanced Data Rate (EDR). Supports data rate up to 2178 kbps. Receiver sensitivity of -93 dBm for high-quality reception. Frequency operation at 2.48 GHz. Multiple interface types such as HCI UART, 3 Wire, 4 Wire, I2S, and PCM.

Wide supply voltage range from 1.7 V to 4.8 V. Operating temperature range: -20°C to +70°C. Compact module dimensions: 9.5 mm length, 9 mm width, 1.8 mm height. Integrated Texas Instruments CC2560 Bluetooth core controller.

Supports industry standard Bluetooth profiles for versatile applications.

This Bluetooth chip module is well-suited for applications in industrial automation, wireless audio devices, health devices, and other electronic communications requiring reliable Bluetooth connectivity. Explore more in the Electronic Components category at EnvMart for additional semiconductor and wireless modules tailored for professional use.
